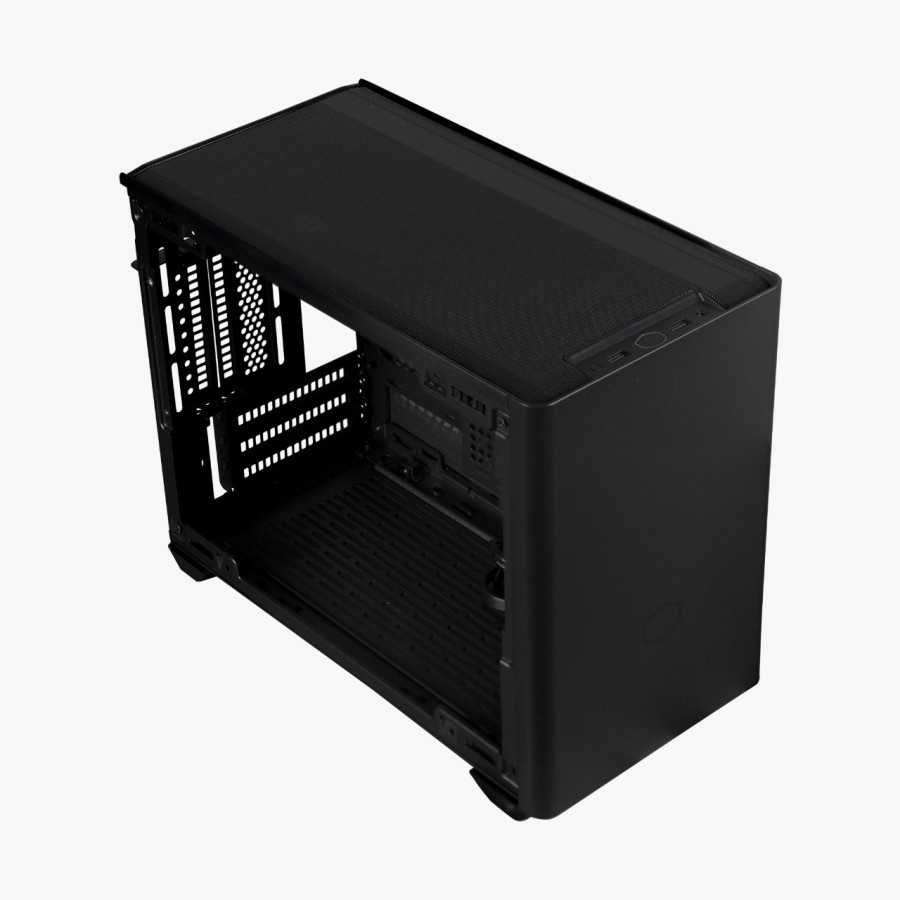

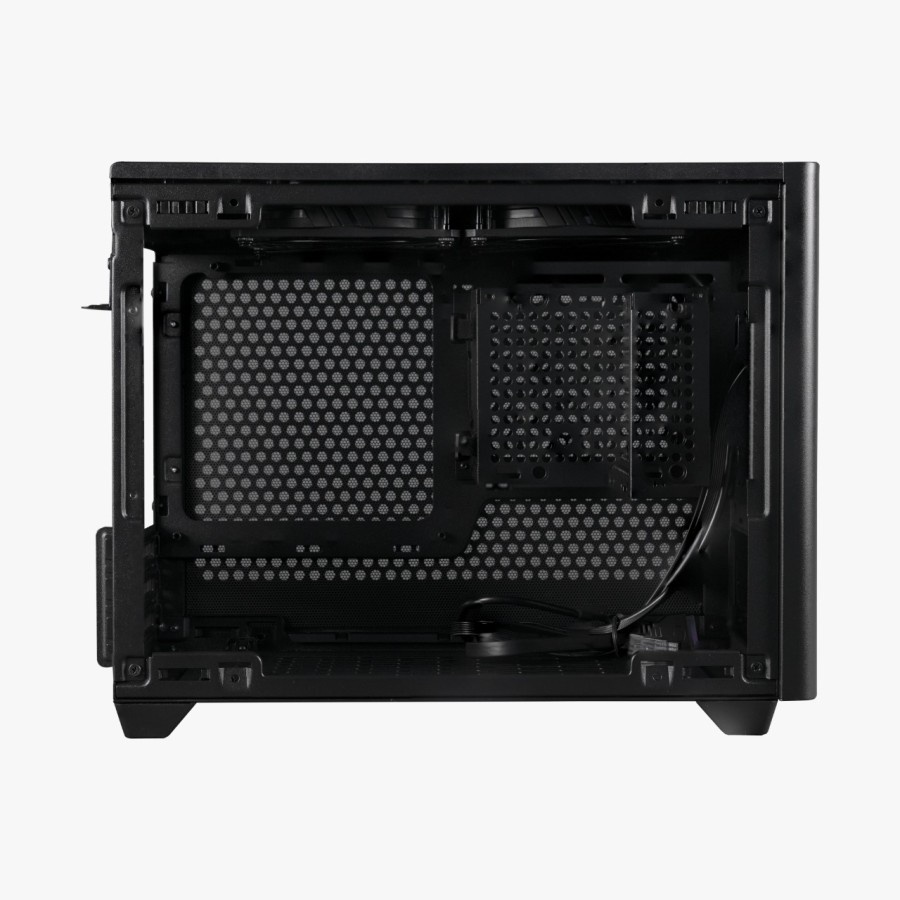

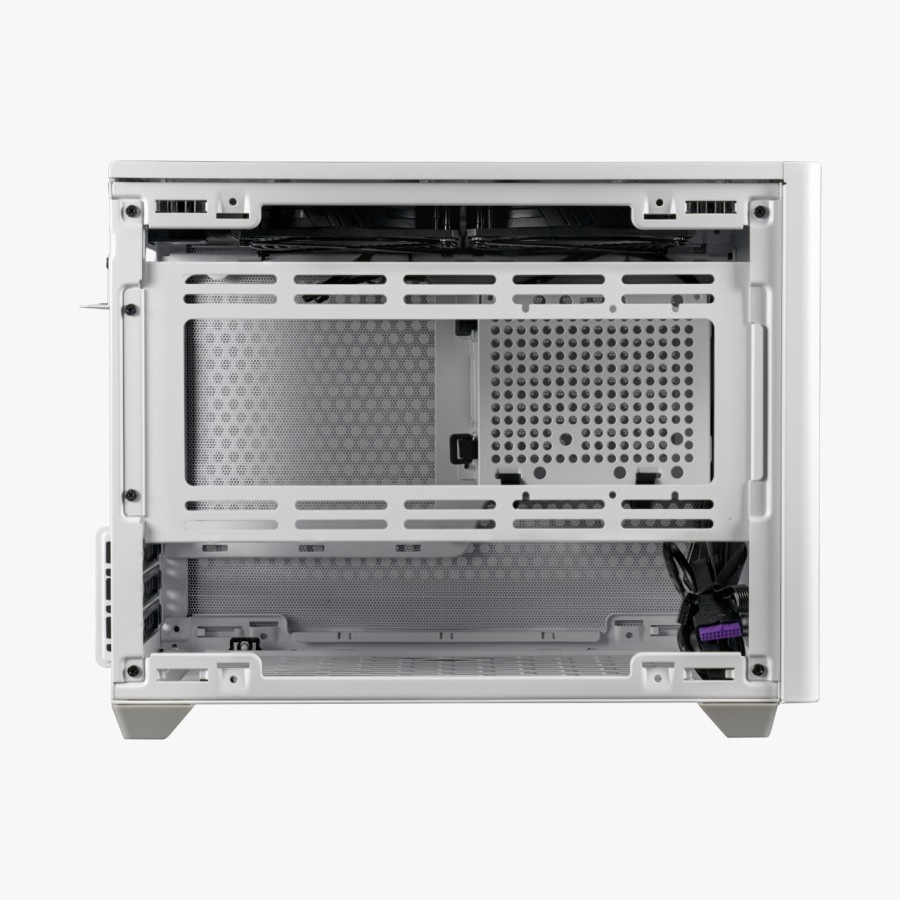

Detail Casing Cooler Master MasterBox NR200P Mini ITX
Spesifikasi : MODEL NUMBER MCB-NR200P-WGNN-S00 SERIES MasterBox Series SIZE Mini ITX AVAILABLE COLOR(S)White MATERIALS Steel, Plastic, Mesh, Tempered Glass DIMENSIONS (L X W X H) 376 x 185 x 292mm incl. Protrusions, 360 x 185 x 274mm excl. Protrusions VOLUME (EXLC. PROTRUSIONS) 18.25L MOTHERBOARD SUPPORT Mini DTX, Mini ITX, Max. size: 244 x 226mm EXPANSION SLOTS 3 5.25" DRIVE BAYS 0 3.5" DRIVE BAYS 1 (Max. 2) 2.5" / 3.5" DRIVE BAYS (COMBO) 1 2.5" DRIVE BAYS 2 (Max. 3) I/O PANEL 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic) PRE-INSTALLED FANS - TOP 2x 120mm 650-1800RPM PWM (SickleFlow) PRE-INSTALLED FANS - FRONT N/A PRE-INSTALLED FANS - REAR N/A PRE-INSTALLED FANS - BOTTOM N/A FAN SUPPORT - TOP 2x 120mm FAN SUPPORT - REAR 1x 92mm FAN SUPPORT - BOTTOM 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots) FAN SUPPORT - SIDE 2x 120/140mm RADIATOR SUPPORT - TOP N/A RADIATOR SUPPORT - REAR 92mm (not compatible with vertical GPU installation) RADIATOR SUPPORT - BOTTOM 120mm, 240mm, (recommended for custom loops only) RADIATOR SUPPORT - SIDE 120mm, 140mm, 240mm, 280mm, (not compatible with vertical GPU installation) CLEARANCE - CPU COOLER 76mm (GPU in vertical position), 153mm (tempered glass side panel), 155mm (vented steel side panel) CLEARANCE - PSU 130mm CLEARANCE - GFX L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot) DUST FILTERS Top, Bottom, Left side, Right side POWER SUPPLY SUPPORT SFX, SFX-L WARRANTY 2 years EAN CODE 4719512106761 (MCB-NR200P-KGNN-S00), 4719512106778 (MCB-NR200P-WGNN-S00) UPC CODE 884102079078 (MCB-NR200P-KGNN-S00), 884102079085 (MCB-NR200P-WGNN-S00) WEIGHT 5.1 kg ACCESSORIES 1x PCIe 3.0 x16 riser cable NOTE single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position
