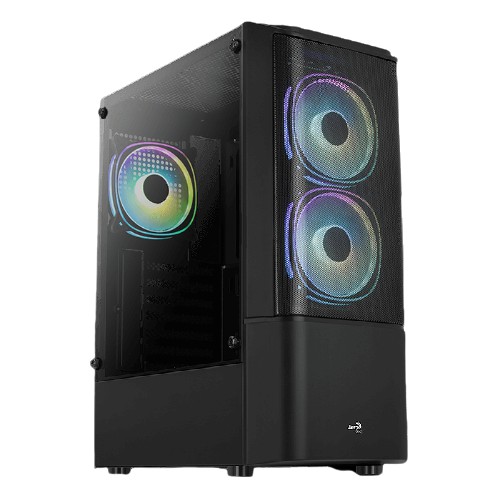

Casing Aerocool Quantum Mesh - Tempered Glass ATX Case

Detail Casing Aerocool Quantum Mesh - Tempered Glass ATX Case

HARAP TANYAKAN STOK TERLEBIH DAHULU SEBELUM DIORDER

Model Quantum Mesh
Case Type Mid Tower
Color Black
Body Material SPCC
Front Panel Material ABS
Steel Thickness 0.5mm
Motherboards ATX/micro ATX/mini-ITX
Case Dimensions (Internal) 200 x 440 x 300mm (W x H x D)
Case Dimensions (Overall) 206 x 450 x 360mm (W x H x D)
3.5” Drive Bays 2 Max. (2 x 3.5”/2.5″)
2.5” Drive Bays 2 Max. (2 x 2.5”/3.5” for Micro-ATX & ATX M/B)
4 Max. (2 x 2.5”/3.5” and 2 x 2.5” for Mini-ITX M/B)
Expansion Slots 7
GPU Clearance Supports GPU up to 297mm (without front radiator)
CPU Cooler Clearance Supports CPU cooler up to 158mm
Air Cooling Front: 120mm x 3 or 140mm x 2 (Max.)
Top: 120mm x 2 (Max.)
Rear: 120mm x 1 (Max.)
PSU Shroud:120mm x 2 (Max.)
Liquid Cooling Front: 120/240/280mm Radiator (Optional)
(for 280mm, supports max length of 323mm and max thickness of 28mm)
Rear: 120mm Radiator (Optional)
I/O Ports USB3.0 x 2 | USB2.0 x 1 | HD Audio & Mic.
Internal Cable Management Depth 18.9mm
Power Supply ATX PSU (Including cables, up to 160mm) (Optional)
EAN Code Quantum Mesh-G-BK-v1: 4710562758566
(Includes 12cm Black Fan x 1)
Quantum Mesh-G-BK-v2: 4710562758573
(Includes 12cm FRGB Fan x 3)
Quantum Mesh-G-BK-v3: 4710562758580
(Includes 12cm RGB Fan x 3)
