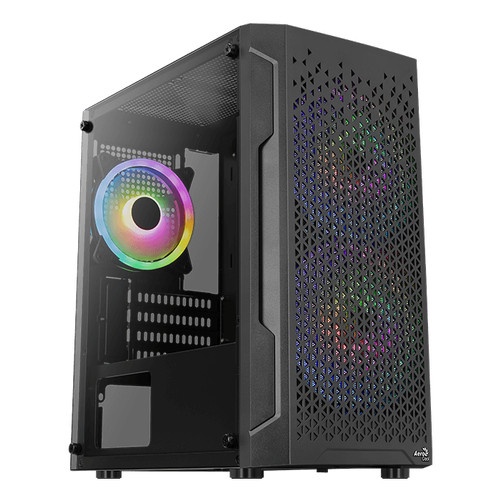

CASE CASING AEROCOOL TRINITY MINI V2 mATX

Detail CASE CASING AEROCOOL TRINITY MINI V2 mATX

Mini Tower Micro ATX | Tempered Glass Panel | 2x3.5"/2.5", 1x2,5" | 2x140mm,1x120mm FRGB Fans |GPU 297mm | Cooler 158mm

Model Trinity Mini
Case Type Mini Tower
Color BLACK
Body Material SPCC
Front Panel Material ABS
Steel Thickness 0.5mm
Motherboards Micro ATX/mini-ITX
Case Dimensions (Internal) 200 x 375 x 300mm (W x H x D)
Case Dimensions (Overall) 206.5 x 385 x 353.4mm (W x H x D)
3.5” Drive Bays 2 Max. (2 x 3.5”/2.5″)
2.5” Drive Bays 3 Max. (1 x 2.5” and 2 x 2.5”/3.5”)
Expansion Slots 4
GPU Clearance Supports GPU up to 297mm (without front radiator)
CPU Cooler Clearance Supports CPU cooler up to 158mm
Air Cooling Front: 120mm x 2 or 140mm x 2 (Max.)
Top: 120mm x 2 (Max.)
Rear: 120mm x 1 (Max.)
PSU Shroud: 120mm x 2 (Max.)
Liquid Cooling Front: 120/240mm Radiator (Optional)
(for 240mm, supports max thickness of 28mm)
Rear: 120mm Radiator (Optional)
I/O Ports USB3.0 x 2 | USB2.0 x 1 | HD Audio & Mic.
Internal Cable Management Depth 20.5mm
Power Supply ATX PSU (Including cables, up to 159mm) (Optional)
