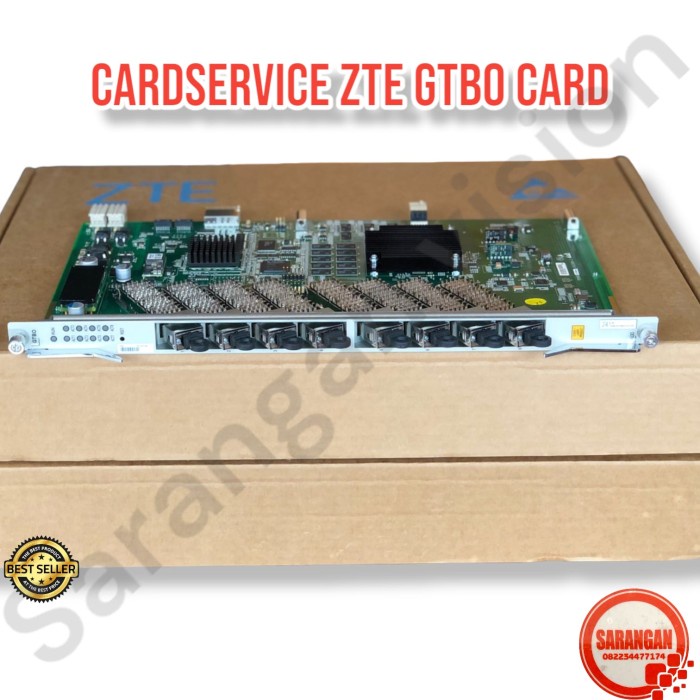

Card service ZTE GTBO card

Detail Card service ZTE GTBO card

Brand : ZTE
Item : GTBO
Port : 8
Type : N1 Module: Single Fiber Bidirectional Optical Module N1
: N2a Module: Single Fiber Bidirectional Optical Module N2a
Operating Wavelength :Tx: 1577 nm, Rx: 1270 nm
Encapsulation Type : SFP+
Port Rate :Tx: 10 Gbit/s, Rx: 2.488 Gbit/s
Minimun Output Optical Power : N1 Module: 2dBm
: N2a Module: 4dBm
Maximum Output Optical Power : N1 Module: 6dBm
:N2a Module: 8dBm
Maximum Receiver Sensitivity :N1 Module: -27.5dBm
:N2a Module: -29.50dBm
Optical Connector Type :SC/UPC
Optical Fiber Type : Single-mode
Reach :20.00 km
Saturation optical power : N1 Module: -7dBm
: N2a Module: -9dBm
Extinction ratio : 8.2dB
Weight : 1.68kg
Dimensions (W x D x H) : 393.1 mm(H) × 23.9 mm(W) × 214 mm(D)


GARANSI 30 HARI

Gambar produk
