Capacitive Touch Dimmer PWM LED Control Saklar Dimmer Sentuh

Detail Capacitive Touch Dimmer PWM LED Control Saklar Dimmer Sentuh

Deskripsi Capacitive Touch Dimmer PWM LED Control Saklar Dimmer Sentuh
Features and benefits:

1. Can work on media (such as glass, acrylic, plastic, ceramic, etc.) to achieve isolation protection case touch function, safe.

2. Voltage range can choose between 2.4 to 4.5V

3. Application circuit is simple, few peripheral devices, easy processing and low cost.

4. Power interference and anti-interference characteristics. Touch response sensitivity and reliability is not affected by interference.

5. Usage: LED modules can be controlled, with lights and other products. Suitable for indoor lamps, LED lighting dimmer, DIY lights dimming.

6. Dimming mode: stepless PWM Dimming.

7. Wiring: PCB board (VCC, GND) for the power input, (LED +, LED-) is connected to the positive and negative grade LED lights.

4 kombinasi jumper yg bisa diset menjadi 4 mode:

Mode 1: 3 tahap kecerahan

Sentuh 1: brightness level 1

Sentuh 2: brightness level 2

Sentuh 3: brightness max

Sentuh 4: off

Sentuh lama: -


Mode 2: set brightness dan control

Sentuh lama: brightness meningkat sampai sentuhan dilepaskan

Sentuh 1: brightness meningkat hingga maximum

Sentuh 2: brightness menurun hingga off


**Mode 3: control

Sentuh 1: brightness meningkat dari off hingga maximum

Sentuh 2: brightness menurun dari maximum hingga off

Sentuh lama: -



Mode 4: ON/OFF

Sentuh 1: ON

Sentuh 2: OFF

Sentuh lama: brightness meningkat hingga level yg diinginkan tapi tidak pernah off. Sentuhan berikutnya baru off.

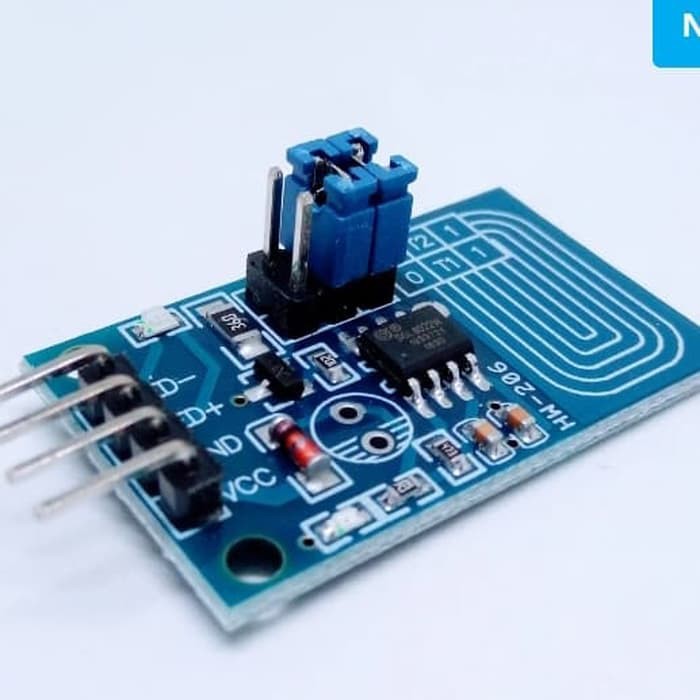

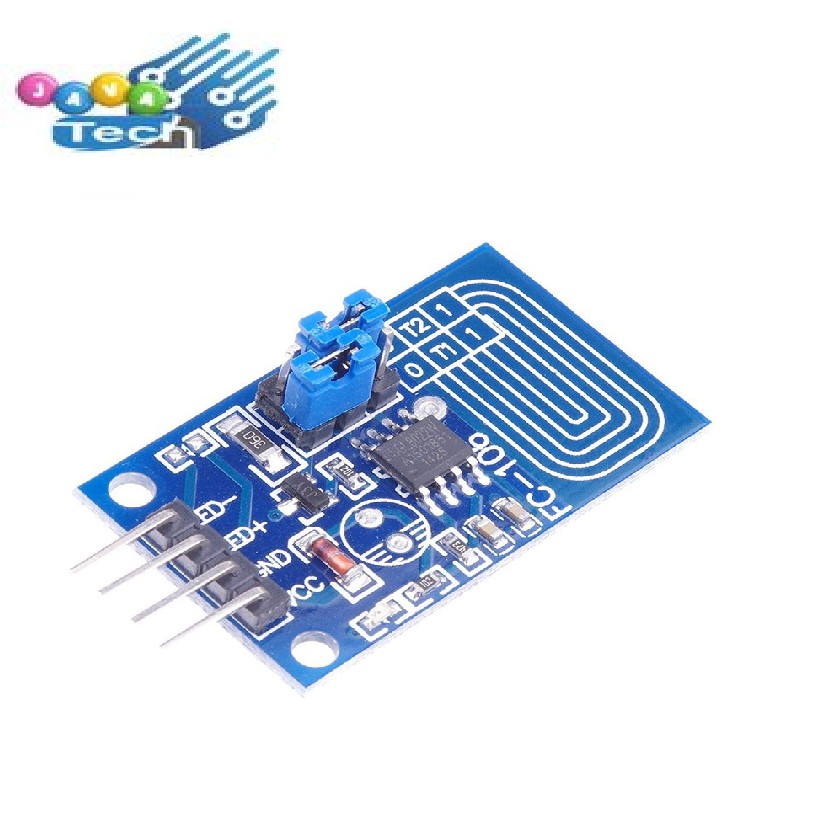

Gambar produk
