Detail Capacitive Soil Moisture Corrosion Resistant Sensor module

Hi #RekanEasyWare ...
EasyWare Part#: EP000727

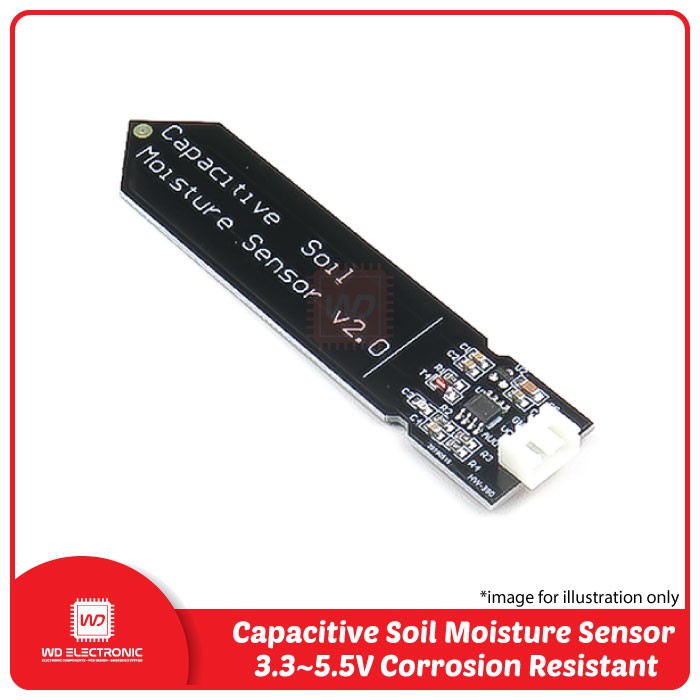

This capacitive soil moisture sensor V1.2 measures soil moisture levels by capacitive sensing rather than resistive sensing like other sensors on the market. It is made of corrosion-resistant material which gives it excellent service life. Insert it into the soil around your plants and impress your friends with real-time soil moisture data!
This module includes an onboard voltage regulator which gives it an operating voltage range of 3.3 ~ 5.5V. It is perfect for low-voltage MCUs, both 3.3V, and 5V. For compatibility with a Raspberry Pi, it will need an ADC converter.

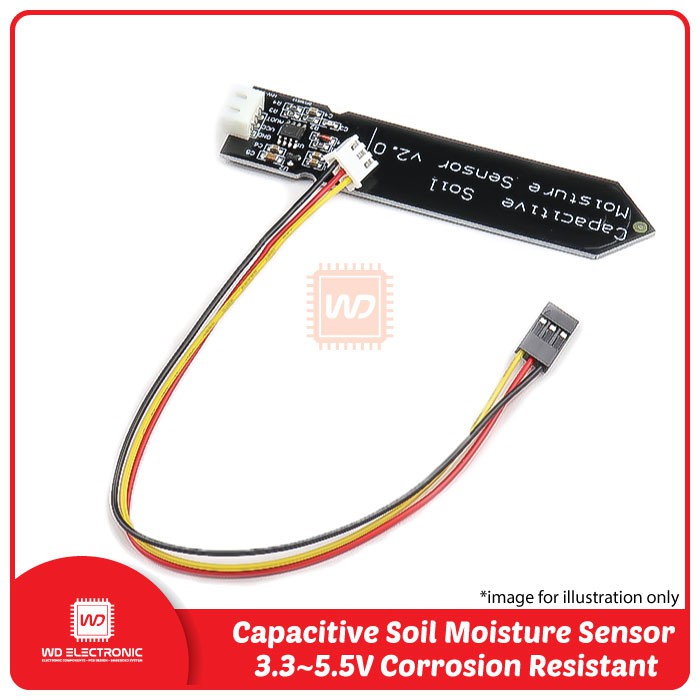

This soil moisture sensor is compatible with our 3-pin “Gravity” interface, we can connect to the Gravity I/O expansion shield.

Spesifications :
- Operating Voltage: 3.3 ~ 5.5 VDC.
- Operating Current: 5mA.
- Interface: PH2.54-3P.

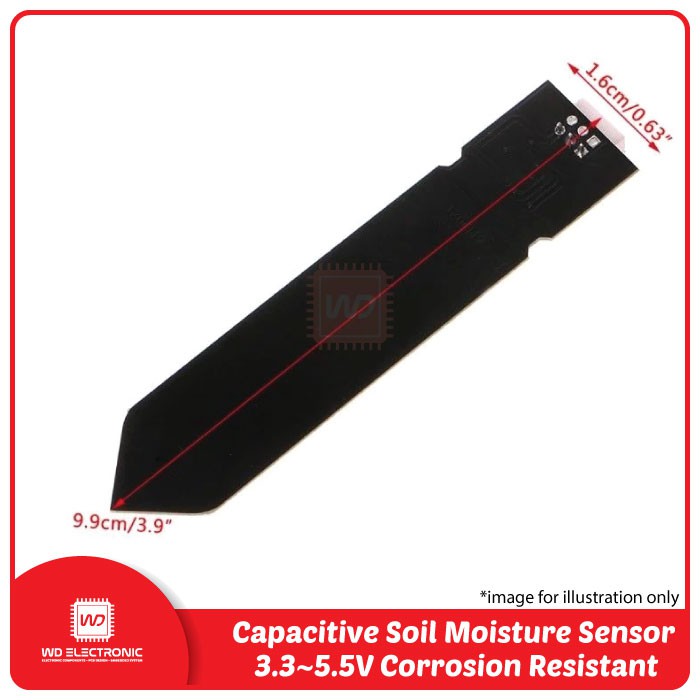

- Dimensions mm(LxWxH): 98 x 23 x 4.
- Supports 3-Pin Gravity Sensor interface
- Analog output.

Applications :
- Garden plants
- Moisture detection
- Intelligent agriculture

Package :
- 1x Capacitive Soil Moisture Sensor V2
