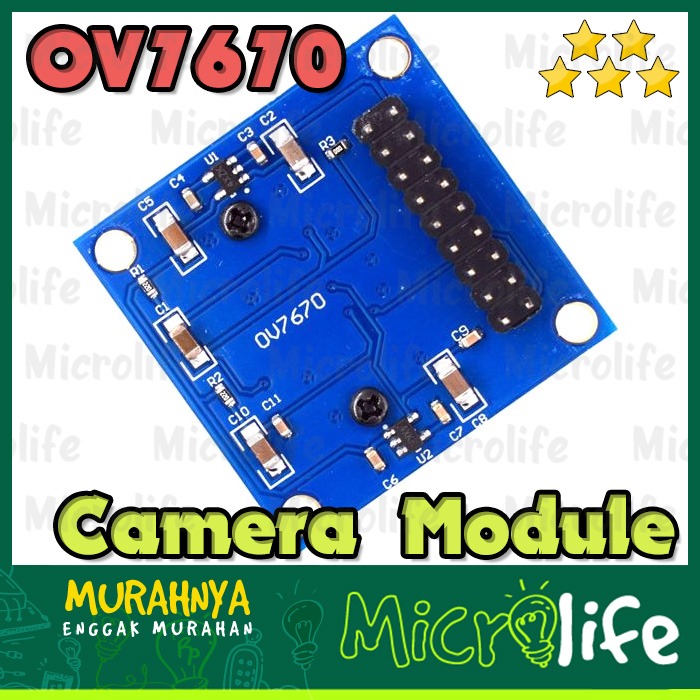

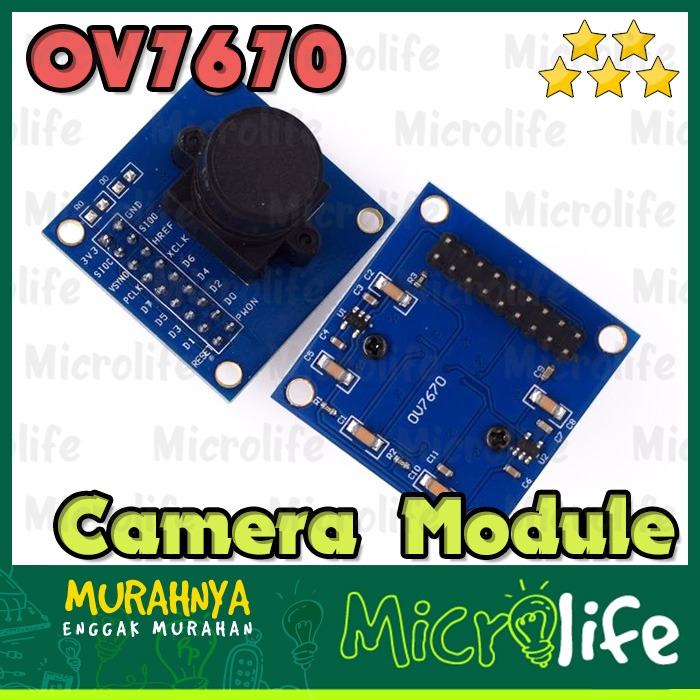

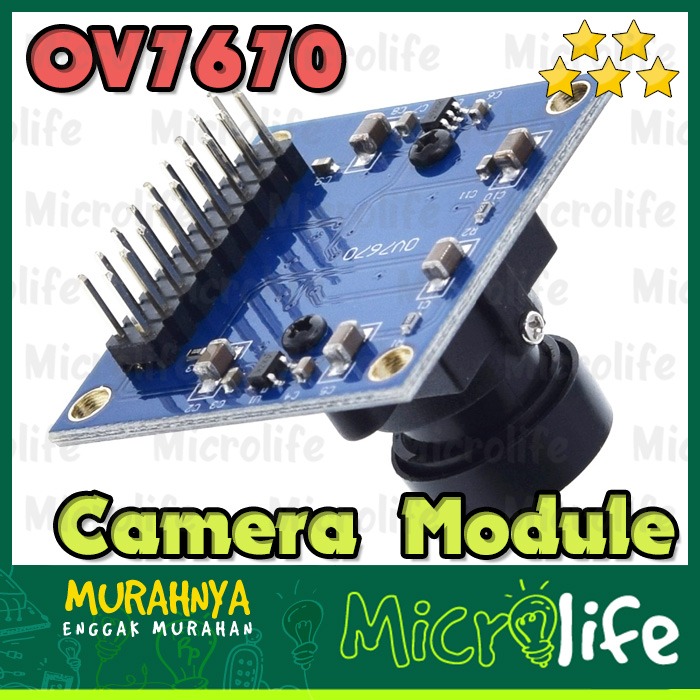

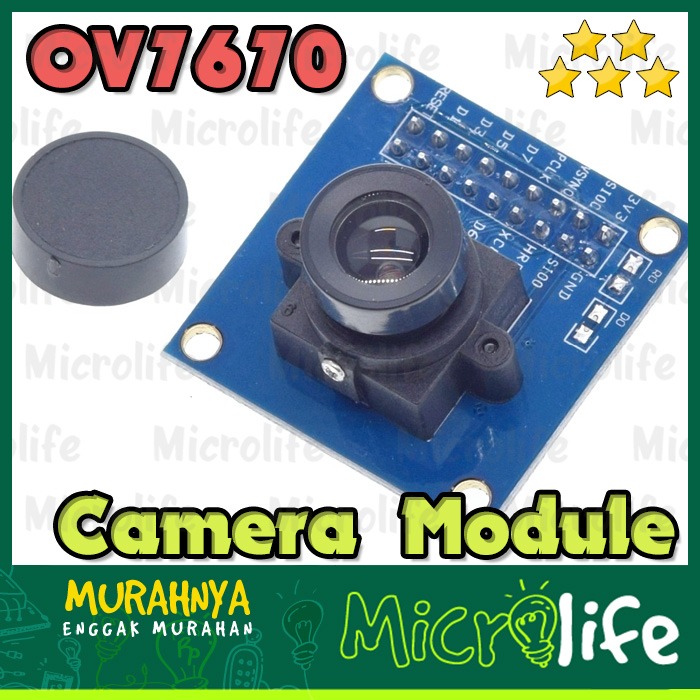

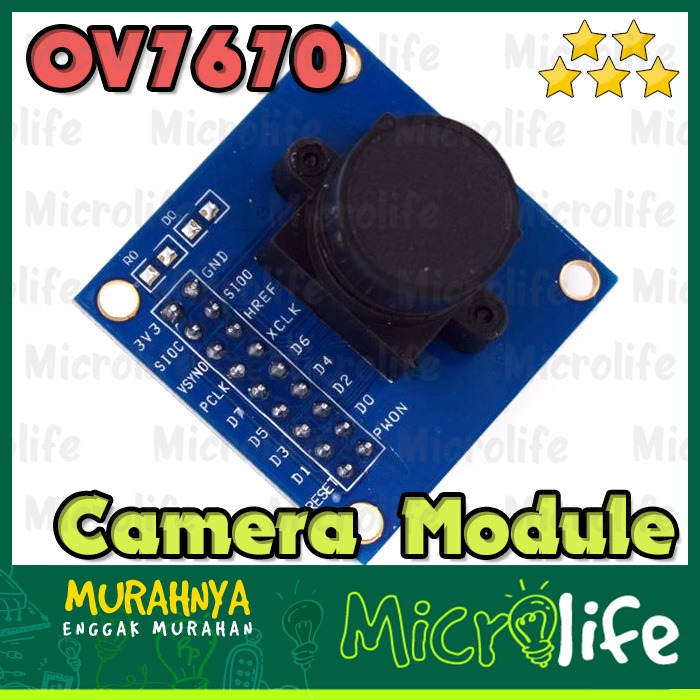

CAMERA MODULE OV7670 MAPLE CHIPKIT STM32 ARM DSP FPGA

Elektronik > Elektronik Lainnya > CAMERA MODULE OV7670 MAPLE CHIPKIT STM32 ARM DSP FPGA
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail CAMERA MODULE OV7670 MAPLE CHIPKIT STM32 ARM DSP FPGA

Camera Module OV7670 ini dapat digunakan untuk Arduino, Maple, ChipKit, STM32, ARM, DSP, FPGA. Dengan resolusi 640x480 0.3 MP untuk mengambil gambar dan video.

Detail Produk:
++ Optical size 1/6 inch
++ Resolution 640480 VGA
++ Onboard regulator, only single 3.3V supply needed
++ Standard 0.1inch (2.54mm) pin pitch header connector
++ Mounted with high quality F1.8 / 6mm lens
++ Output support for Raw RGB, RGB (GRB 4:2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) formats
++ High sensitivity for low-light operation
++ Low operating voltage for embedded portable apps
++ Standard SCCB interface compatible with I2C interface
++ Supports image sizes: VGA, CIF, and any size scaling down from CIF to 4030
++ VarioPixel method for sub-sampling
++ Automatic image control functions including: Automatic
++ Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic
++ Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)
++ Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming
++ ISP includes noise reduction and defect correction
++ Supports LED and flash strobe mode
++ Supports scaling
++ Lens shading correction
++ Flicker (50/60 Hz) auto detection
++ Saturation level auto adjust (UV adjust)
++ Edge enhancement level auto adjust
++ De-noise level auto adjust


Isi Paket:
1x Camera Module OV7670
