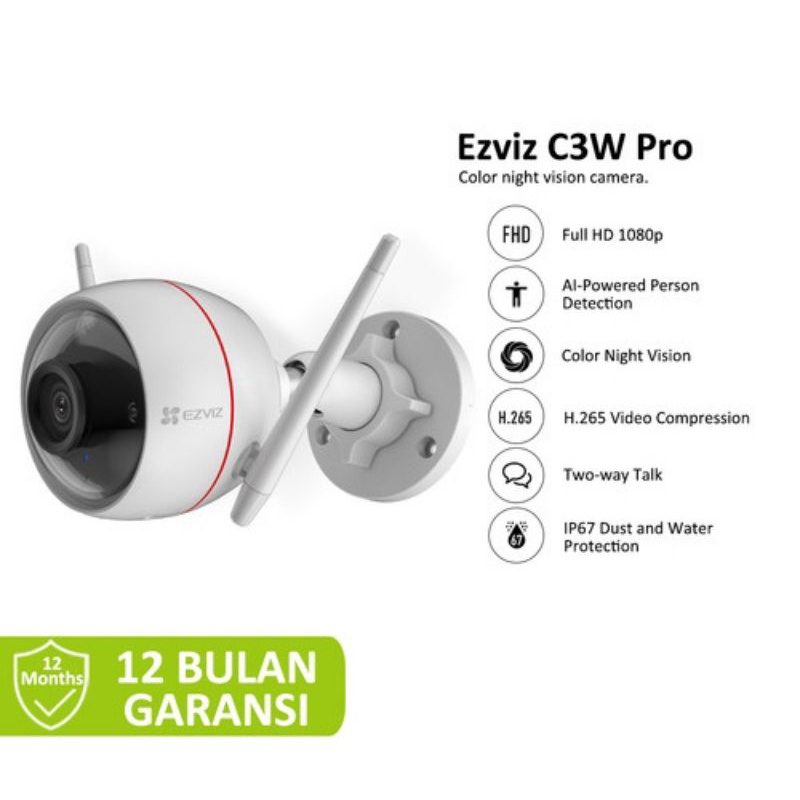

CAMERA CCTV EZVIZ C3W PRO IP CAM 4MP RESMI

Detail CAMERA CCTV EZVIZ C3W PRO IP CAM 4MP RESMI

Model Parameters
Model CS-C3W-A0-3H2WFRL

Camera
Image Sensor 1/2.7”Progressive Scan CMOS
Minimum Illumination 0.01 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed Self-adaptive shutter
Lens 2.8 mm @F1.6, view angle: 103° horizontal, 119° diagonal 4 mm @F1.6, view angle: 87° horizontal, 104° diagonal
Lens Mount M12
DNR 3D DNR
WDR Digital WDR

Compression
Video Compression H.265 / H.264
Video Bit Rate Ultra-HD; HD; Standard. Adaptive bit rate.

General
Working Temperature -30 °C to 60 °C (22 °F to 140 °F)
Working Humidity 95% or less (non-condensing)
Power Supply DC 12 V / 1 A
Power Consumption Max. 6 W
IP Grade IP67
Night Vision Distance (Black/White Night Vision Mode) Max. 30 m (98.43 ft.)

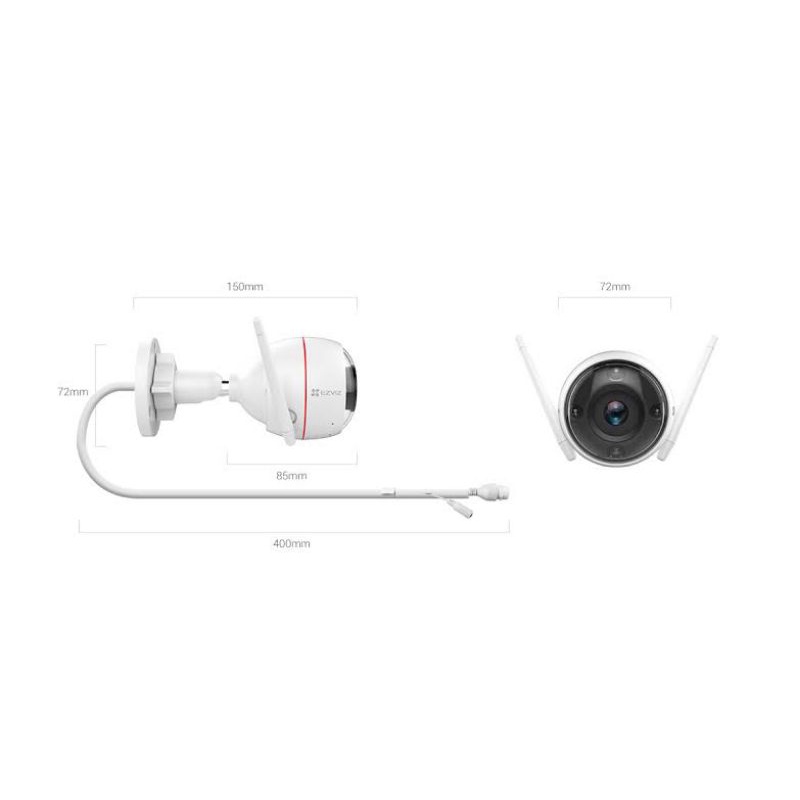

Dimensions 72 mm × 72 mm × 150 mm (2.83” × 2.83” × 5.91”)
Packaging Dimensions 252 mm × 110 mm × 92 mm (9.92” × 4.33” × 3.62”)
Net Weight 600g(0.78 lbs)

Network
User Defined Alarm Tones Supports
Wi-Fi Pairing AP Pairing
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
General Function Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Max. Bitrate 2M

Wi-Fi
Standard EEE802.11b, 802.11g, 802.11n
Frequency Rangeb 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11 Mbps, 11g: 54 Mbps, 11n: 144 Mbps

Max. Resolution 1920 × 1080
Frame Rate Max: 30 fps; Self-adaptive during network transmission

Interface
Storage MicroSD card slot (Max. 256 GB)
Wired Network RJ45 × 1(10 M / 100 M Adaptive Ethernet Port)

In the box :
- 1x C3W Pro (4MP) Color Night Vision Camera
- 1x Power Adapter (1.5 m)
- 1x Mounting Template
- 1x Screw Kit
- 1x Waterproof Kit
- 1x Quick Start Guide
