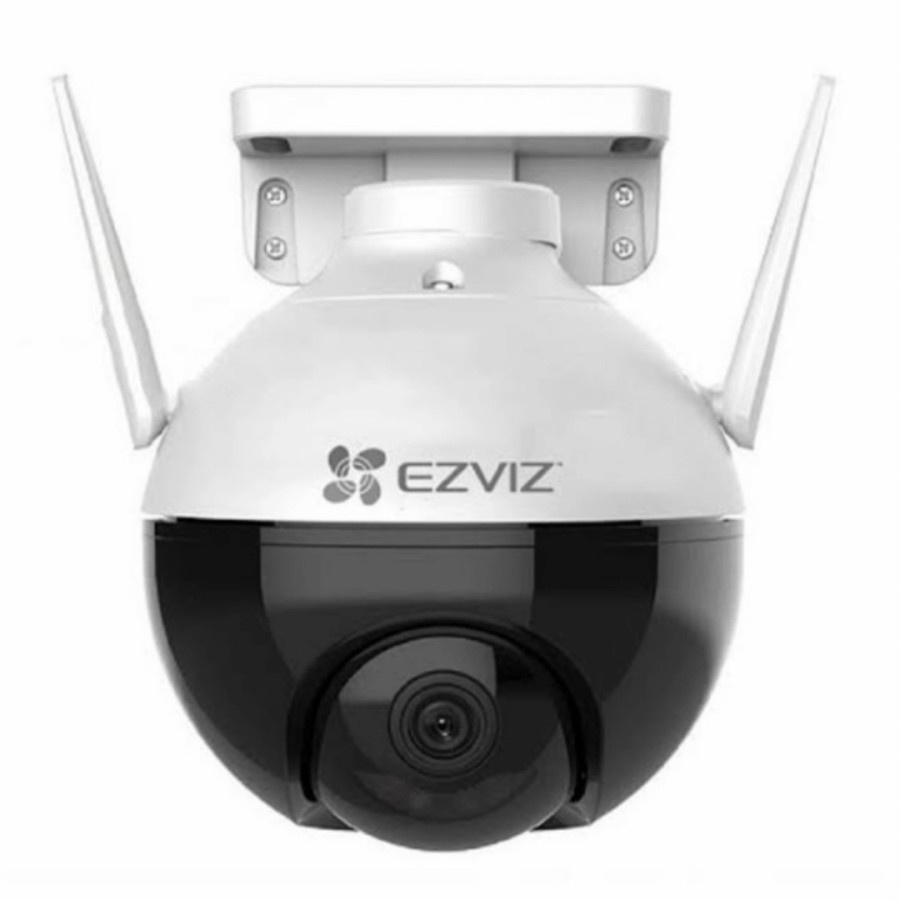

CAMERA CCTV (C8C) EZVIZ 8X ZOOM 2MP

Detail CAMERA CCTV (C8C) EZVIZ 8X ZOOM 2MP

Specifications

Model

CS-C8C (1080P)

Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Shutter Speed

Self-adaptive shutter

Lens

4mm @ F1.6, view angle: 87° (Horizontal), 105° (Diagonal) 6mm @ F1.6, view angle:55° (Horizontal), 66° (Diagonal)

PT Angle

Pan: 352°, Tilt: 95°

Minimum Illumination

0.5 Lux @(F1.6, AGC ON), 0 Lux with IR

Lens Mount

M12

Day & Night

IR-cut filter with auto-switching

DNR

3D DNR

WDR

Digital WDR

BLC

Supports

Black & White Night

30 m / 100 ft.

Video & Audio

Max. Resolution

1920 × 1080

Frame Rate

Max:30 fps; Self-Adaptive during network transmission

Video Compression

H.265 / H.264

Video Bit Rate

Ultra-HD; Hi-Def; Standard. Adaptive bit rate.

Audio Bit Rate

Self-Adaptive

Max. Bitrate

2 Mbps

Network

Wi-Fi Standard

IEEE802.11b, 802.11g, 802.11n

Frequency Range

2.4 GHz ~ 2.4835 GHz

Channel Bandwidth

Supports 20 MHz

Security

64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK

Transmission Rate

11b: 11Mbps, 11g : 54Mbps, 11n: 72Mbps

Wi-Fi Pairing

AP pairing

Protocol

EZVIZ cloud proprietary protocol

Interface Protocol

EZVIZ cloud proprietary protocol

Wired Network

RJ45 × 1 (10 M / 100 M Adaptive Ethernet Port)

Storage

Local Storage

MicroSD card slot (Max. 256G)

Cloud Storage

EZVIZ Cloud Storage

Function

Smart Alarm

AI Person Detection

Customized Alert Area

Supports

Audio

Supports mic

General Function

Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

General

Operating Conditions

-30°C ~ 60°C (14°F to 113 °F), Humidity 95% or less (non-condensing)

IP Grade

IP65

Power Supply

DC 12V / 1A

Power Consumption

MAX. 6W

Dimensions

158 x 157 x 149 mm (6.22 x 6.18 x 5.87 inch)

Packaging Dimensions

197 x 185 x 205 mm (7.76 x 7.28 x 8.07 inch)

Weight

885 g (31.22 oz)

Net Weight

510 g (17.99 oz)

In the box:

In the box:

C8C Camera 1.5-Meter Power Adapter Screw Kit Waterproof Kit Drill Template Regulatory Information Quick Start Guide

Certifications:

Certifications:

Gambar produk
