CAMERA CCTV 2MP INDOOR HIKVISION DS-2CE76 DOT-EXIPF

Detail CAMERA CCTV 2MP INDOOR HIKVISION DS-2CE76 DOT-EXIPF

Image Sensor

2 MP CMOS
Signal System

PAL/NTSC
Resolution

1920 (H) × 1080 (V)
Frame Rate

TVI: 1080p@25fps/30fps
AHD: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
CVBS: PAL/NTSC
Min. Illumination

0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time

PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Lens2.8 mm, 3.6 mm Fixed LensField of View2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 123° 3.6 mm, horizontal FOV: 81°, vertical FOV: 42°, diagonal FOV: 100°Lens MountM12Day & NightICRWDR (Wide Dynamic Range)Digital WDRAngle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Image Mode

STD/HIGH-SAT
AGC

Yes
Day/Night Mode

Auto/Color/BW (Black and White)
White Balance

Auto
AE (Auto Exposure) Mode

DWDR, BLC, Global
Noise Reduction

2D DNR
Language

English
Function

Brightness, Mirror, Smart IR, Sharpness
Video Output

Switchable TVI/AHD/CVI/CVBS
Operating Conditions

-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply

12 VDC ± 25%
Consumption

Max. 3.3 W
Material

Plastic
IR Range

Up to 20 m
Communication

HIKVISION-C
Dimension

Φ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
Weight

Approx. 195g (0.43 lb.)

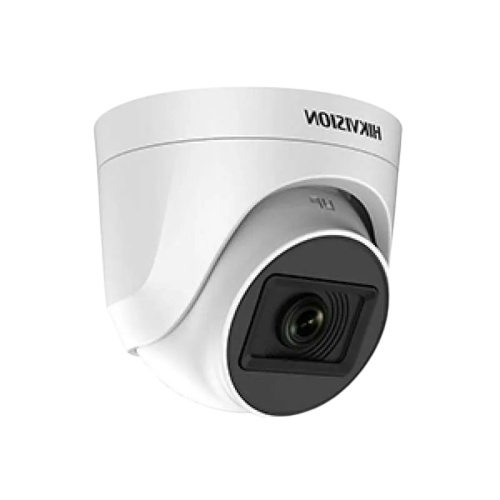

Gambar produk
