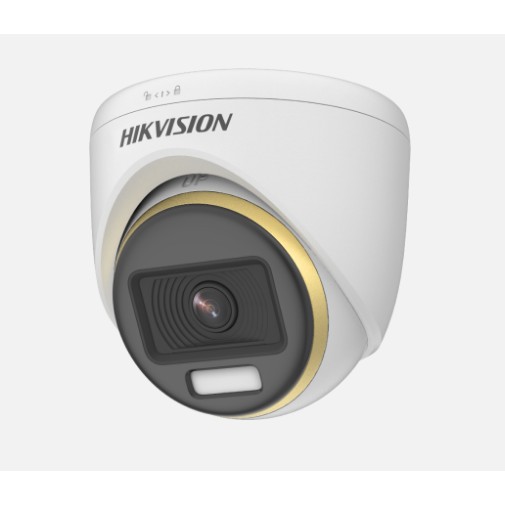

Camera cctv 2 MP ColorVu Fixed Turret Camera DS-2CE70DF3T-MF

Detail Camera cctv 2 MP ColorVu Fixed Turret Camera DS-2CE70DF3T-MF

Camera
Image Sensor
2 MP CMOS
Signal System
PAL/NTSC
Resolution
1920 (H) × 1080 (V)
Frame Rate
TVI: 1080p@25fps/30fps

CVI: 1080p@25fps/30fps

AHD: 1080p@25fps/30fps

CVBS: PAL/NTSC

Min. Illumination
0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
Shutter Time
PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Slow Shutter
Max. 16 times
Lens
2.8 mm, 3.6 mm, 6 mm Fixed Lens
Field Of View
2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°

3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°

6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 59°

Lens Mount
M12
Light Alarm
Solid Light Alarm (White Light)
Day & Night
24/7 Color Imaging
WDR (Wide Dynamic Range)
≥130 dB
Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
White Light
Auto/Off
Image Mode
STD/HIGH-SAT/HIGHLIGHT
AGC
Yes
Day/Night Mode
Color
White Balance
Auto/Manual
AE (Auto Exposure) Mode
WDR;BLC;HLC;Global;HLS
Privacy Mask
4 programmable privacy masks
Motion Detection
4 programmable motion areas
Noise Reduction
3D DNR/2D DNR
Language
English
Function
Defective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light
Lighting Mode
White Light
Interface
Video Output
Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions
-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply
12 VDC ± 25%,

*You are recommended to use one power adapter to supply the power for one camera.

Consumption
Max. 2.9 W
Protection Level
IP67
Material
Metal
White Light Range
Up to 20 m
Communication
HIKVISION-C
Dimension
Φ 85.1 mm × 77.62 mm (Φ 3.35" × 3.05")
Approx. 311.5 g (0.69 lb.)
