Cambium Networks ePMP Force 300-25 Subscriber Module

Komputer & Aksesoris > Komponen Network > Komponen Network Lainnya > Cambium Networks ePMP Force 300-25 Subscriber Module
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Cambium Networks ePMP Force 300-25 Subscriber Module

ePMP Force 300-25 Specifications

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Spectrum
Channel Spacing Configurable on 5 MHz increments
Frequency Range Wide Band Operation 5.150 – 5.970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)
Channel Width 20 | 40 | 80 MHz

Interface
MAC (Media Access Control) Layer Cambium proprietary and optionally standard 802.11ac
Physical Layer 2x2 MIMO/OFDM
Ethernet Interface 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used IPv6/IPv4 Management, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network Management HTTPs, SNMPv2c, SSH
VLAN 802.1Q with 802.1p priority

Performance
ARQ Yes
Nominal Receive Sensitivity (w/FEC) @20MHz Channel MCS0 = -87 dBm to MCS8 (256 QAM-3/4) = -63 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40MHz Channel MCS0 = -85 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80MHz Channel MCS0 = -82 dBm to MCS9 (256QAM-5/6) = -56 dBm (per chain)
Modulation Levels (Adaptive) MCS0 (BPSK) to MCS9 (256QAM 5/6)
GPS Synchronization Yes, via internal GPS or CMM4 with 56 V and 5 pin to 7 pin cross over cable adapter
Transmit Power Range 0 to +27 dBm (combined, to regional EIRP limit) (1 dB interval)

Physical
Surge Suppression 1 Joule Integrated
Environmental IP55
Temperature -22°F to +140°F (-30°C to +60°C)
Wind Survival 180 km/hour (112 mi/hour)
Weight 2.4 kg (5.3 lbs)
Dimensions (Dia x Depth) 47 cm x 31 cm (18.5 in x 12.2 in)
Pole Diameter Range 6.4 cm – 7.6 cm (2.5 in – 3 in)
Power Consumption 12 Watts
Input Voltage 30 Volts

Security
Encryption 128-bit AES (CCMP mode)
Certifications
FCCID TBD
Industry Canada Cert TBD
CE TBD

Gambar produk

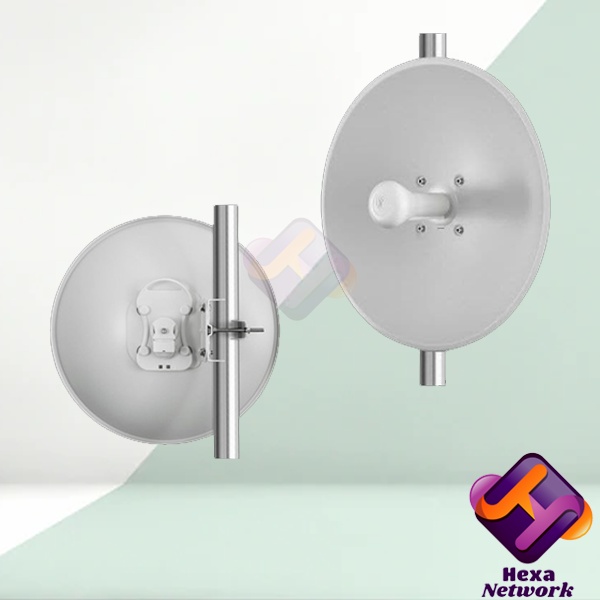

Cambium Networks ePMP Force 300-25 Subscriber Module
Cambium Networks ePMP Force 300-25 Subscriber Module
