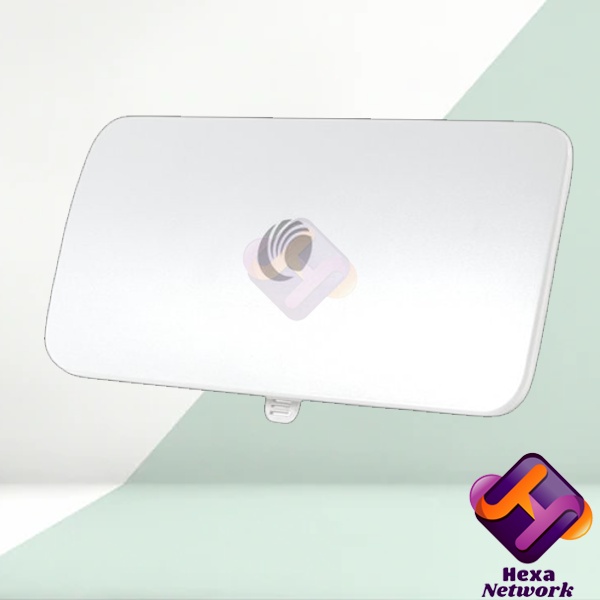

Detail Cambium Networks ePMP Force 300-16 Subscriber Module
Specifications:
"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"
ePMP Force 300-16 Specifications
Spectrum Channel Spacing Configurable on 5 MHz increments Frequency Range Wide Band Operation 4910 - 5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.) Channel Width 20 | 40 | 80 MHz
Interface MAC (Media Access Control) Layer Cambium Physical Layer 2x2 MIMO/OFDM Ethernet Interface 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts Protocols Used IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH Network Management IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™ VLAN 802.1Q with 802.1p priority
Performance ARQ Yes Nominal Receive Sensitivity (w/FEC) @20MHz Channel MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain) Nominal Receive Sensitivity (w/FEC) @40MHz Channel MCS0 = -87 dBm to MCS9 (256 QAM-5/6) = -64 dBm (per chain) Nominal Receive Sensitivity (w/FEC) @80MHz Channel MCS0 = -84 dBm to MCS9 (256 QAM-5/6) = -59 dBm (per chain) Modulation Levels (Adaptive) MCS0(BPSK) to MCS9 (256 QAM-5/6) Transmit Power Range 0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval)
Physical Surge Suppression 1 Joule Integrated (C000000L065A - 30V Gigabit surge suppressor is recommended for optimum protection) Environmental IP55 Temperature 30°C to +60°C (-22°F to +140°F) Wind Survival 180 km/hour (112 mi/hour) Weight 0.50 kg (1.1 lb) (includes mounting bracket) Dimensions (Dia x Depth) 12.4 x 25.1 x 11.9 cm (4.9 x 9.9 x 4.7 in) – with mounting bracket attached Pole Diameter Range 1 – 1.6 in (2.5 – 4.1 cm) with included clamp; up to 2.25 in (5.7 cm) with larger clamp Power Consumption 12 Watts Input Voltage 30 Volts
Security Encryption 128-bit AES (CCMP mode) Certifications FCCID Z8H-89FT0016 Industry Canada Cert 109W-0016 CE EN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz)
Gambar produk
Cambium Networks ePMP Force 300-16 Subscriber Module
