Detail Cambium Networks ePMP Force 300 Connectorized Subscriber Module

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

SPECIFICATIONS
SPECTRUM
Channel Spacing Configurable in 5 MHz increments
Frequency Range Wide Band Operation 4.910 – 5.970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)
Channel Width 20 | 40 | 80 MHz

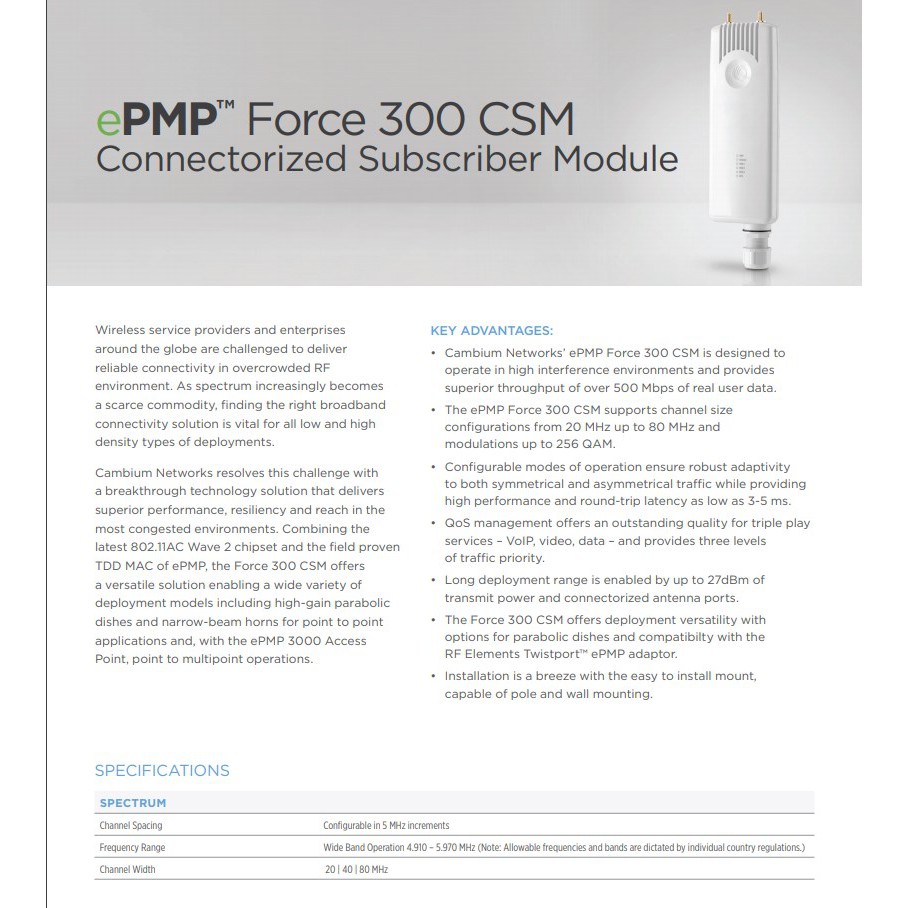

ePMP™ Force 300 CSM SPECIFICATION SHEET
SPECIFICATIONS
INTERFACE
MAC (Media Access Control) Layer Cambium Proprietary
Physical Layer 2x2 MIMO/OFDM
Ethernet Interfaced 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network Management IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks cnMaestro™
VLAN 802.1Q with 802.1p priority
PERFORMANCE
ARQ Yes

Modulation Levels (Adaptive) MCS0(BPSK)to MCS9 (256QAM5/6)
Transmit Power Range 0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval)
PHYSICAL
Surge Suppression 1 Joule Integrated; Optional 30V Surge Suppressor (C000000L065A)
Environmental IP67 and IP68 Compliant
Temperature -22°F to +140°F (-30°C to +60°C)
Weight 0.5 kg (1.1 lbs.) without bracket
Wind Survival 180 km/hour (112 mi/hour)
Dimensions 84 x 223 x 32 mm (3.3 x 8.8 x 1.3 inches) without brackets
Pole Diameter Range 6.4 cm – 7.6 cm (2.5 in – 3 in)
Power Consumption 12 Watts (Up to 15 Watts in extreme cold temperatures when heater is activated.)
Input Voltage 30 Volts nominal (14 to 30V range)
(note that 14V minimum must be maintained at radio connector under all conditions including long cable lengths)
Powering Method Supported 29 V Cambium PoE (included)
SECURITY
Encryption 128-bit AES (CCMP mode)
CERTIFICATIONS
FCCID Z8H-89FT0047
Industry Canada Cert 109W-0047CE EN301 893 V2.1.1 (5.4)
