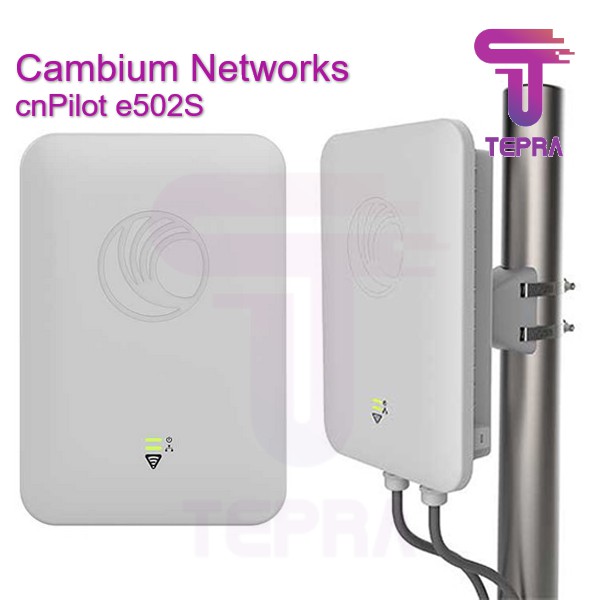

Cambium Networks cnPilot e502s Access Point

Komputer & Aksesoris > Komponen Network > Modem & Router Wireless > Cambium Networks cnPilot e502s Access Point
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Cambium Networks cnPilot e502s Access Point

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

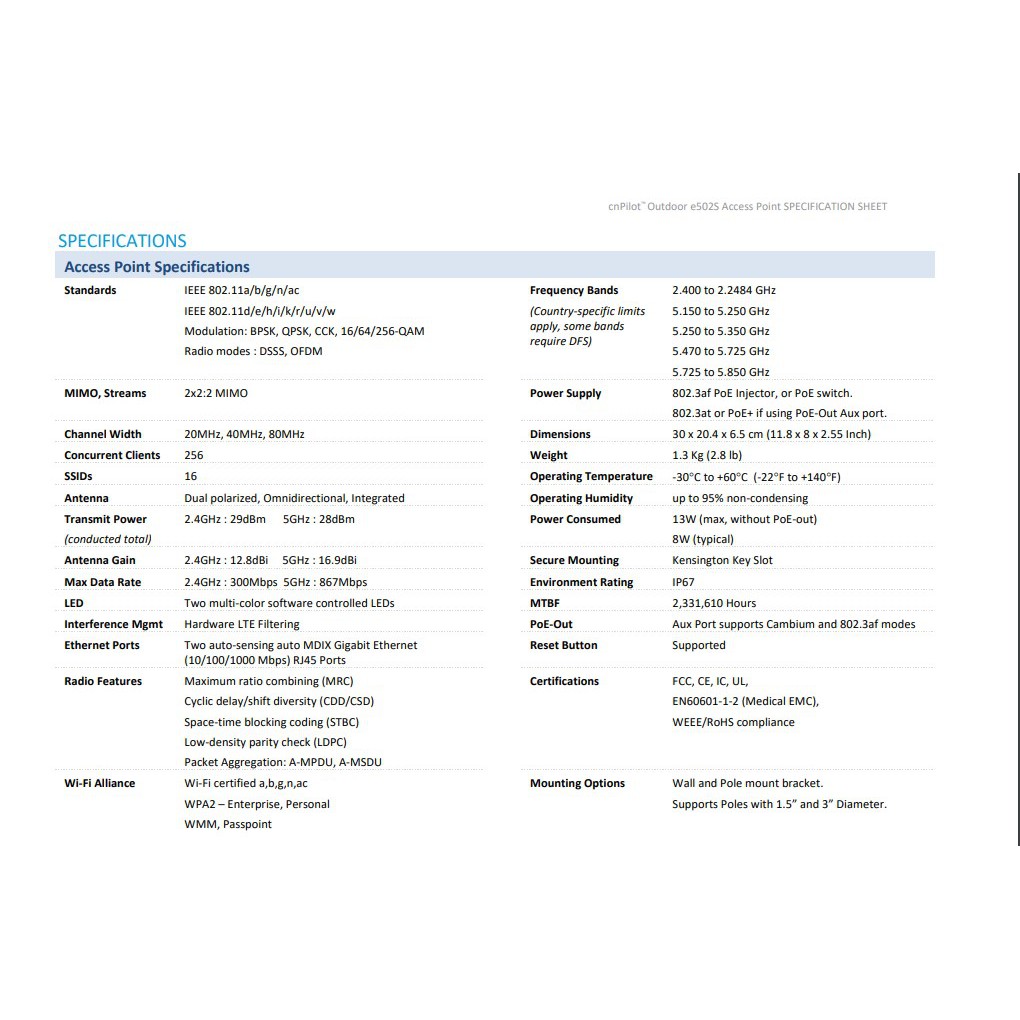

Product Specifications
• Frequency Bands: 2.4GHz: 2.4 - 2.4835GHz
Channels 1 - 13 (ETSI/CE)
Channels 1 -11 (US)
5GHz: 5.15 - 5.85GHz
• SSID Security: WPA-2 (802.11i): WPA2-Enterprise (802.1x/EAP) and WPA2-Preshared-keys, Open
• Max SSID: 16
• Max Concurrent Clients: 256
• Max Range:
Client: 213m (700ft); Actual range will vary based on local RF conditions and client capability
Mesh:
2.4GHz: 3000m (9840ft)
5GHz: 1500m (4900ft)
• Max Data Rates: 1.01Gbps
• Ethernet Ports: Dial Gigabit Ethernet ports
• Antenna: Dual polarized. 2x2 MIMO. Integrated Sector antenna
• Antenna Gain:
2.4GHz: 10.5dBi
5GHz: 13dBi
• Power Supply: 56V/30W Gigabit passive PoE injector
• PoE Out: Aux port: capable of 802.3af power out or canopy power
• Transmit Power:
2.4GHz: 29dBm
5GHz: 28dBm
• Power Consumed:
Typical: 8W
Max: 12.95W
• Dimensions: 30 x 20.4 x 6.5cm (without bracket)
• Weight:
Without Bracket: 881g
With Bracket: 1063g
• Operating Temperature: -30 to 60°C
• Mounting Options: Pole mount bracket (included) or wall-mount (with included bracket or without)
• LTE Co-Existence: Special filter for rejecting interference on 2.4GHz from adjacent LTE bands 38, 40
• Physical Security: Kensington Lock Bracket
• Visual Status: (2) multi-color LEDs indicating Access Point and cnMaestro connectivity status

PoE injector included

Product Includes

(1) cnPilot E502S Access Point
(1) User Guide
