Deskripsi : Cambium 56 VDC Gigabit Ethernet Surge Suppressor | C000000L033A

Garansi 1 Tahun
Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain

Cambium Networks designs outdoor wireless broadband solutions to operate in the
toughest of environments. Lightning strikes are the most typical cause of system
outages or failures of mast-mounted equipment especially when mounted as high as
300m. The Gigabit Ethernet Surge Suppressor is critical for lightning protection to
minimize the potential for damage.
Network operators should always follow best-practices for grounding and lightning
protection. Doing so will minimize network outages and reduce the associated costs
of tower climbs and equipment repair/replacement.

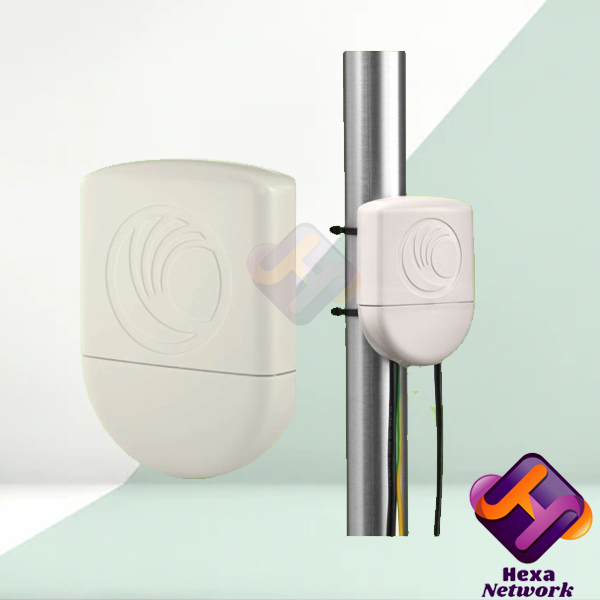

The Gigabit Ethernet Surge Suppressor is compatible with the PMP 450i (Access
Point and Subscriber Module), PTP 450i and PTP 820S. The unit ships suitable for
mounting to a wall or pole.

Specifications
Features
MODEL NUMBER C000000L033A
TRANSFER RATE 1000 Base T
CONNECTORS Two x RJ-45
NOMINAL VOLTAGE 56V
PROTECTION MODE Line-to-line and line-to-ground
SURGE ARRESTOR TVS Diodes (Transient Voltage Suppression for longer operational life)
SURGE CURRENT RATING, L-G, total 172A, 10/1000us
RESPONSE TIME 5 nanoseconds typical
MOUNTING Pole mount or wall mount
DIMENSIONS 4.6 in. x 3.4 in. x 1.8 in.(118mm x 87.5mm x 46.5mm)
WEIGHT 0.34 lbs (156 gm)
WIND SURVIVAL 200 mph (321 km/hour)
OPERATING TEMPERATURE -40° F (-40° C) to +140° F (+60° C)
HUMIDITY 100% condensing
ENVIRONMENTAL PROTECTION IP54 (Dust and Water Intrusion Protection)
