Cambium ePMP Force 425 with extended antenna|ePMP F425

Detail Cambium ePMP Force 425 with extended antenna|ePMP F425

SKU : 9000000207-9000000208

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

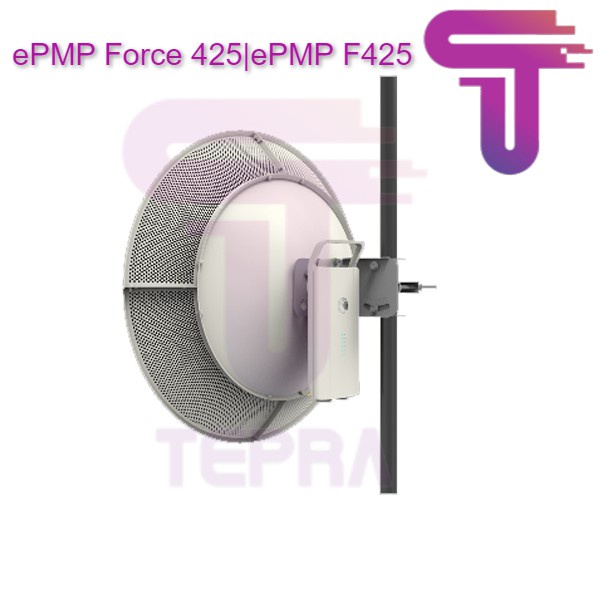

Cambium ePMP Force 425 integrated 25 dBi dish with EXTENDED ANTENNA

The Force 425 pushes this capacity farther than ever with an
integrated 25 dBi dish (and even farther with the optional 28 dBi
range extender). The optional range extender is ordered separately
and can be assembled and attached in the field to add additional
link budget and fade margin for challenging links or to move
to higher capacity where needed and higher modulations can
be achieved.

Spectrum
Force Force 425
Channel Width MHz 20 | 40 | 80
Proprietary Physical Layer 802.11ax, 2x2 MIMO/OFDM
Channel
Spacing Configurable in 5 MHz increments
Frequency Range Wide Band Operation 4910 - 6135 MHz
(Note: Country dependent based on local regulations. Support of 5870 to 6135 coming in a future software upgrade.)
MAC Layer
(Media Access Control) Cambium Proprietary
Ethernet Interface 100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts; 10 Gigabit SFP cage for optional SFP modules
Protocols
Used IPv4/IPv6 (Dual Management Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network Management IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™
VLAN 802.1Q with 802.1p priority
Performance
Force Force 425
ARQ Yes
Maximum Capacity 1 Gbps
Latency < 5 ms
Nominal Receive Sensitivity
(w/FEC) @20 MHz Channel
MCS 0 = -93 dBm to MCS 11 (1024 QAM-5/6) = -63 dBm (per chain)
Nominal Receive Sensitivity
(w/FEC) @40 MHz Channel
MCS 0 = -90 dBm to MCS 11 (1024 QAM-5/6) = -60 dBm (per chain)
Nominal Receive Sensitivity
(w/FEC) @80 MHz Channel
MCS 0 = -87 dBm to MCS 11 (1024 QAM-5/6) = -57 dBm (per chain)
Modulation Levels (Adaptive)
MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6)
Transmit Power Range +3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval)
