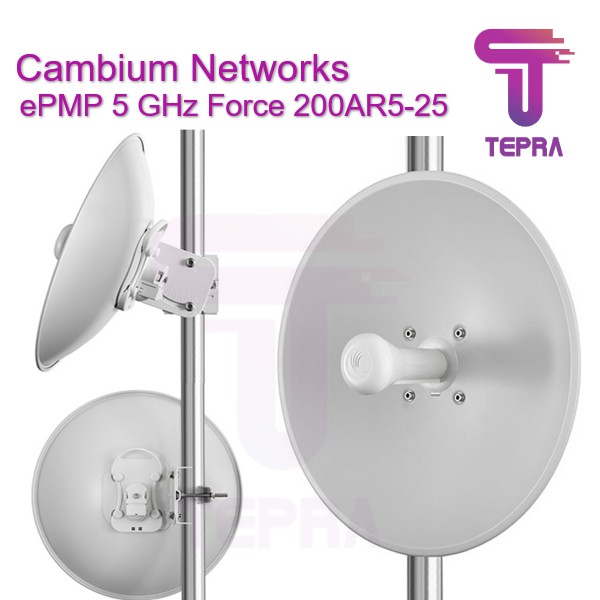

Cambium EPMP 5 GHz Force 200 AR5-25 High Gain Radio

Detail Cambium EPMP 5 GHz Force 200 AR5-25 High Gain Radio

Specifications:

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

ePMP Force 200 Specifications
Spectrum
Channel Spacing Configurable on 5 MHz increments
Frequency Range 2.4 GHz Model: 2402 – 2472 MHz 5 GHz Model: 4910 - 5970 MHz
Channel Width 5 | 10 | 20 | 40 MHz
Interface
MAC (Media Access Control) Layer Cambium proprietary
Physical Layer 2x2 MIMO/OFDM
Ethernet Interface 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network Management HTTPs, SNMPv2c, SSH
VLAN 802.1Q with 802.1p priority
Performance
ARQ Yes
Nominal Receive Sensitivity (w/FEC) @20MHz Channel MCS0 = -92 dBm to MCS15 = -68 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @40MHz Channel MCS0 = -89 dBm to MCS15 = -65 dBm (per branch)
Modulation Levels (Adaptive) MCS0 (BPSK) to MCS15 (64QAM 5/6)
GPS Synchronization Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Transmit Power Range -15 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)
Physical
Surge Suppression 1 Joule Integrated
Environmental IP55
Temperature -30°C to +60°C (-22°F to +140°F) – with radome attached maximum temperature is +47°C (+116°F)
Wind Survival 145 km/hour (90 mi/hour)
Weight 2.4 GHz Model: 2.8 kg (6.2 lbs)
5 GHz Model: 2.3 kg (5.1 lbs)
Dimensions (Dia x Depth) 47 cm x 28 cm (18.5 in x 11.2 in)
Pole Diameter Range 6.4 cm – 7.6 cm (2.5 in – 3 in)
Power Consumption 10 W Maximum, 5 W Typical
Input Voltage 10 to 30 V
Security
Encryption 128-bit AES (CCMP mode)
Certifications
FCCID 2.4 GHz: Z8H80FT0019 / 5 GHz: Z8H80FT0015
Industry Canada Cert 2.4 GHz: 109W-0019 / 5 GHz: 109W-0015
CE 5 GHz: EN 302 502 v1.2.1
5 GHz: EN 301 893 v1.7.1

Gambar produk
