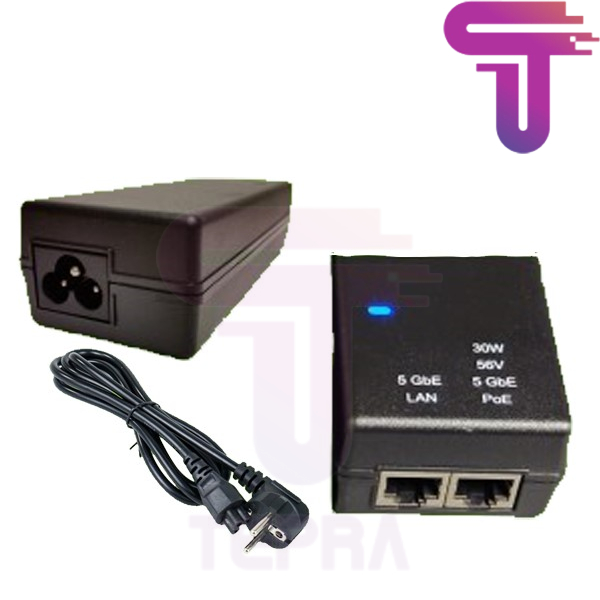

Cambium 56V 30W Gigabit PoE Power Supply | POE Cambium F400C F425

Merek: Cambium | Lihat selengkapnya produk Komputer & Aksesoris dari Cambium
Komputer & Aksesoris > Komponen Network > Komponen Network Lainnya > Cambium 56V 30W Gigabit PoE Power Supply | POE Cambium F400C F425
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Cambium 56V 30W Gigabit PoE Power Supply | POE Cambium F400C F425

Deskripsi : Cambium 56V 30W Gigabit PoE Power Supply | POE Cambium F400C F425

Tidak Garansi
Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain

Cambium Networks radios utilize PoE (Power
over Ethernet) for delivering power and data.
This PoE power supply has an AC input and a
Data Input which then drives a 56V power plus
data( PoE) output to the radio. This PoE power
supply meets stringent Level VI efficiency
requirements and carries regulatory compliance
for deployment in most locations arounds the
world. The unit is designed to be compact easy
to deploy while delivering reliability and high
performance.

Specifications
Model Number : N000000L034B
Output Voltage : 56VDC (±5%)
Output Power : 30W
Ethernet : 5 Gigabit
AC Power Input : 3-wire AC inlet;
Connection IEC-60320 Type C6
AC Voltage Input : 90 to 300 VAC
AC Frequency Range : 47 to 63 Hz
Efficiency : Energy Level 6
ESD Surge Protection : 6kV/8kV contact/air (per EN61000-4-2)
Lightning Surge : 4kV common, 2kV differentia
(Data/PoE) (per EN61000-4-5)
Hold-up Time : 10 ms at max load
Operating Temp : 0°C to +50°C
Non-Operating Temp : -40°C to +70°C
Operating humidity : 5 to 95% non-condensing
Non-Operating : 0 to 95% non-condensing
Humidity
Operating Altitude : 2,000 meters
Dimensions : 140 x 53 x 35 mm
L x W x H : (5.51 x 2.08 x 1.38 in)
Case Color : Black
LEDs : Blue (DC Out)

Regulatory
ROHS / WEEE compliant
ESD EN61000-4-2, Level 3
AC Line Surge EN61000-4-5, Level 3
Safety : UL+cUL,UKCA,RCM,NOM,MEPS,IRAM,
PSB,BSMI,KC,KCC + MEPS,Brazil,
CCC,CE/FCC,NRcan,EAC,BIS,GEMS,
PSE,S-MARK,ST,SABS(NRCS),TUV/GS (62368)
Immunity EN61000-4-2, level 3;
EN61000-4-3, level 2;
EN61000-4-5, level 3;
EN61000-4-6, level 2;
EN61000-4-11
