Cable kit 70mai Dashcam Hardwire Kit Monitor Parkir 24 Jam

Detail Cable kit 70mai Dashcam Hardwire Kit Monitor Parkir 24 Jam

Garansi Resmi 12 Bulan

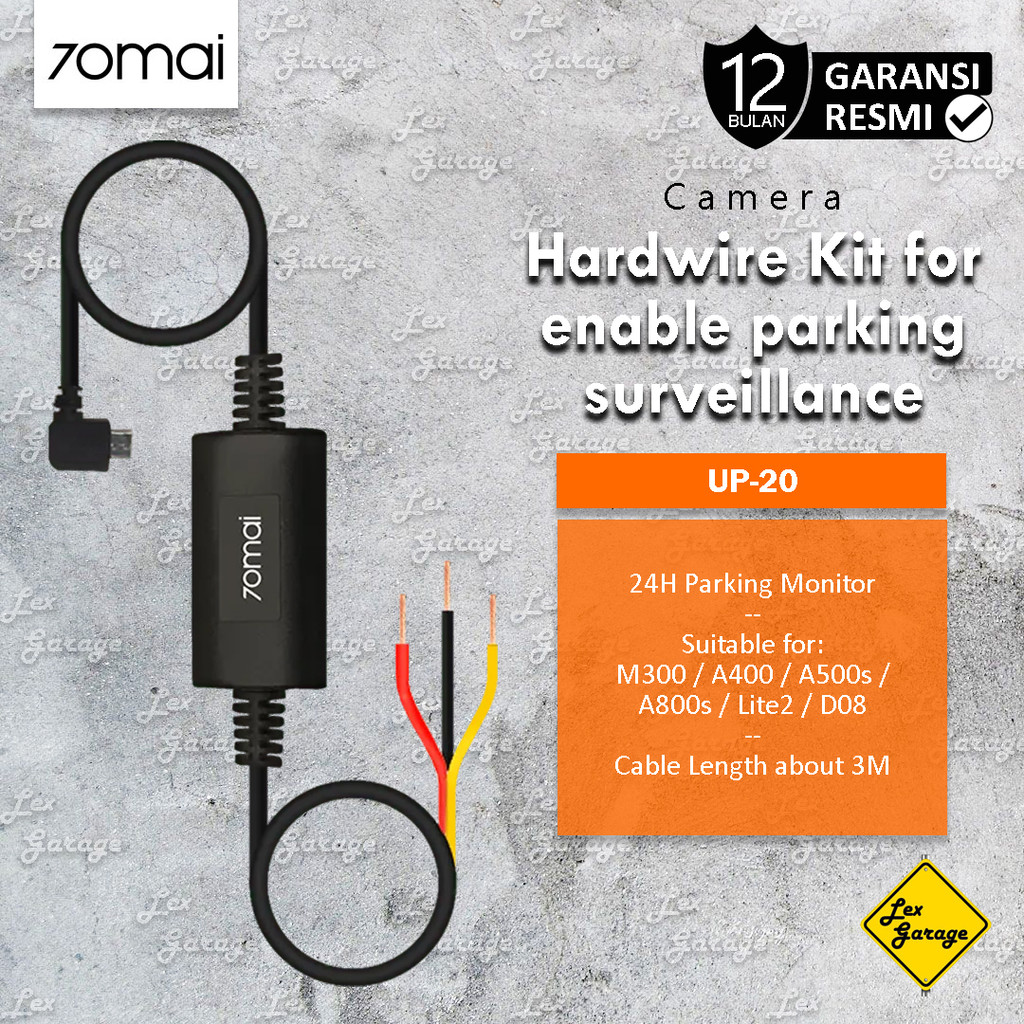

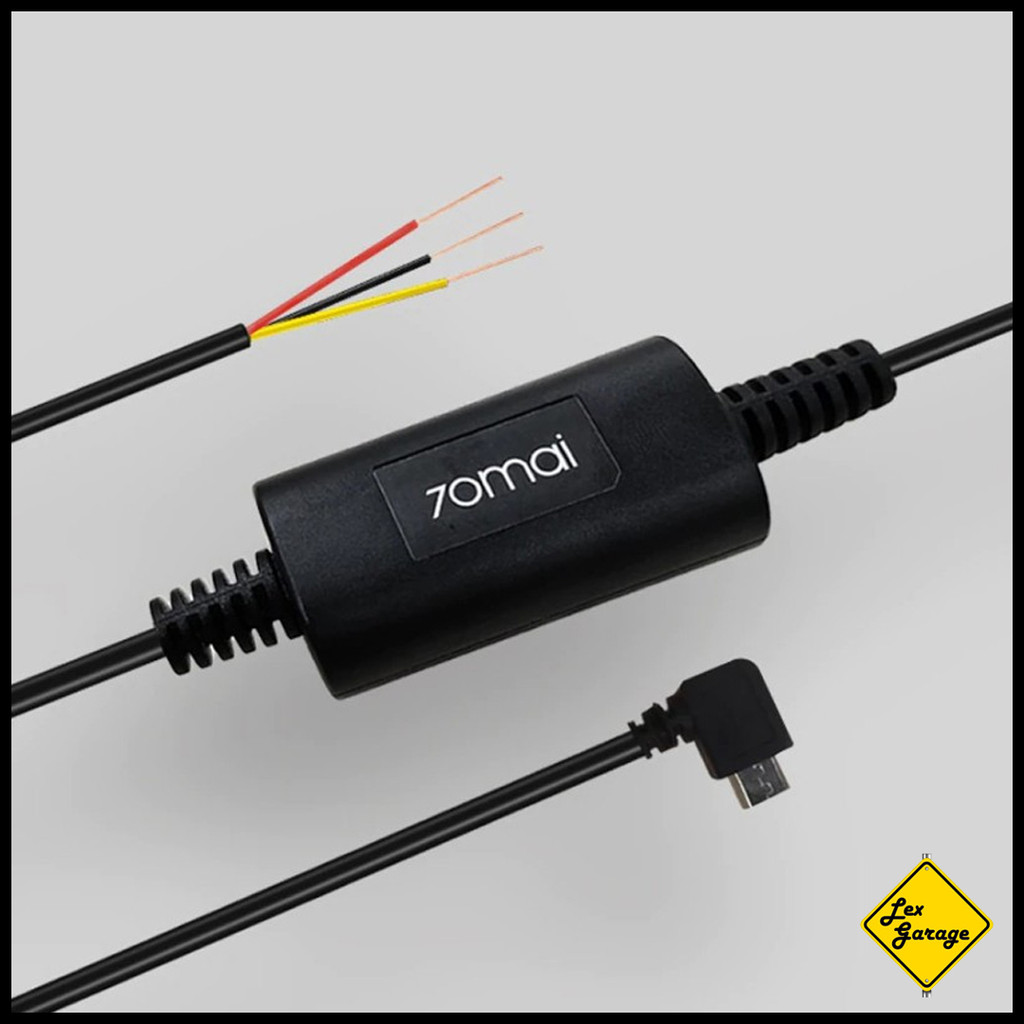

70mai Dashcam UP-02 Hardwire Kit for 24H Parking Monitor

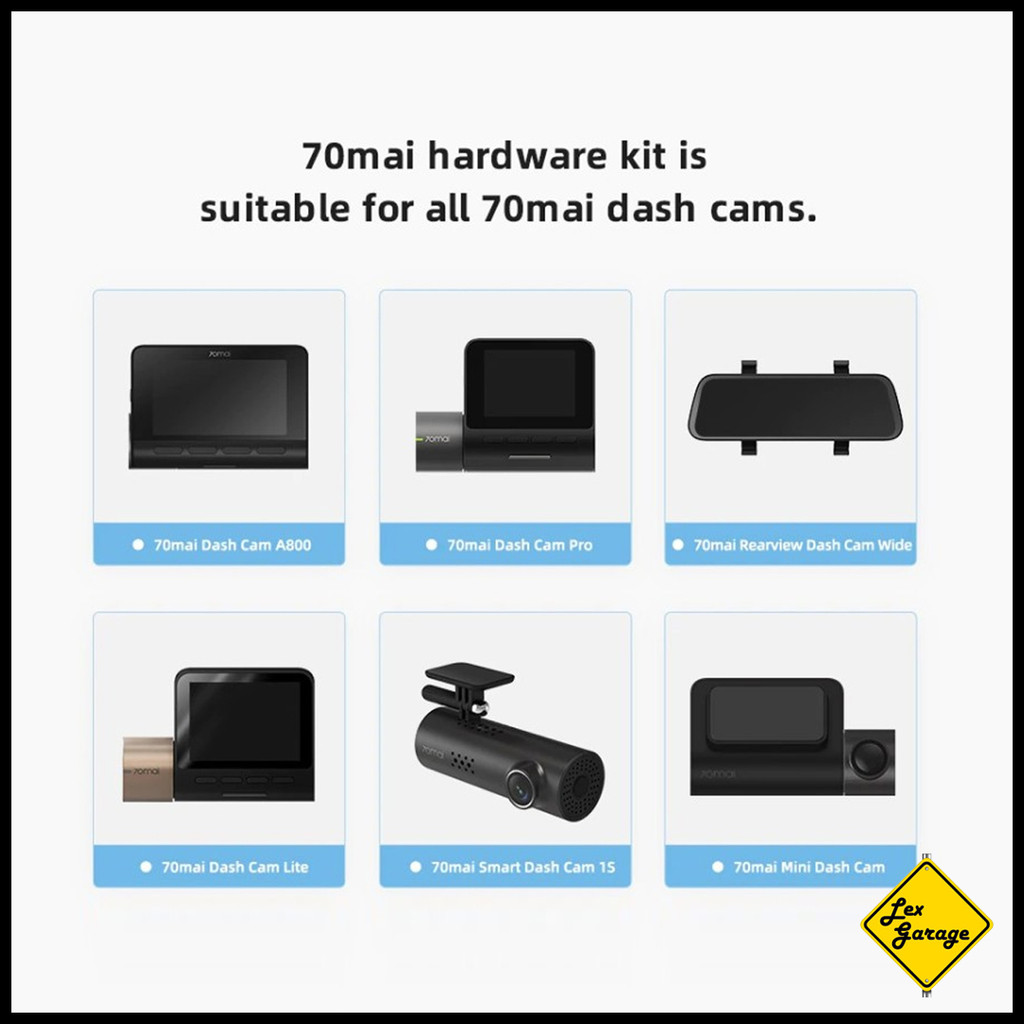

Kompatibel untuk 70mai Dashcam tipe: M300 / A400 / A500s / A800s / Lite2 / D08

Fungsi: Untuk Aktifkan Fitur Monitor Parkir 24 Jam

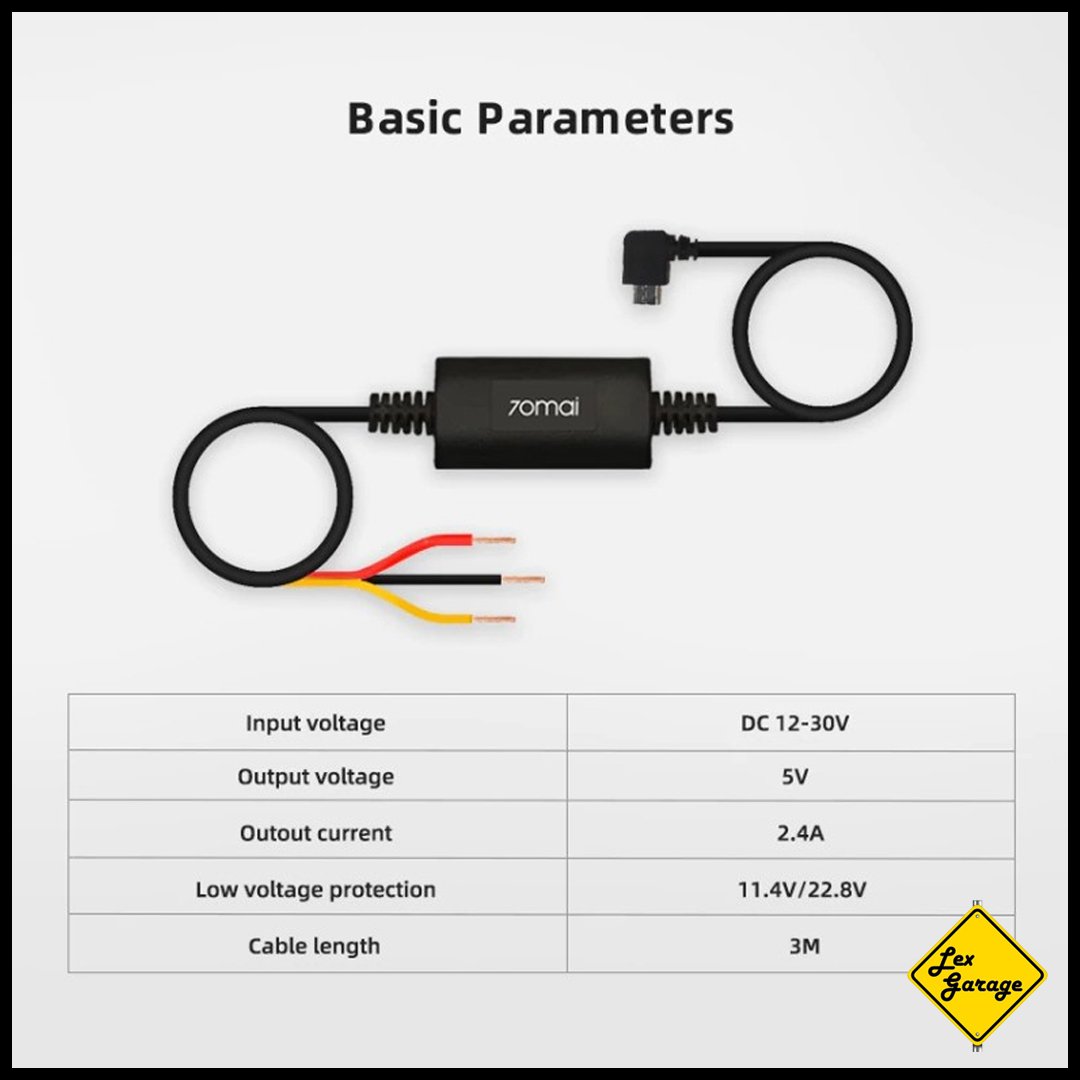

- Interface: USB 2.0
- Voltage: 24V
- Product name: 70mai Hardware Kit

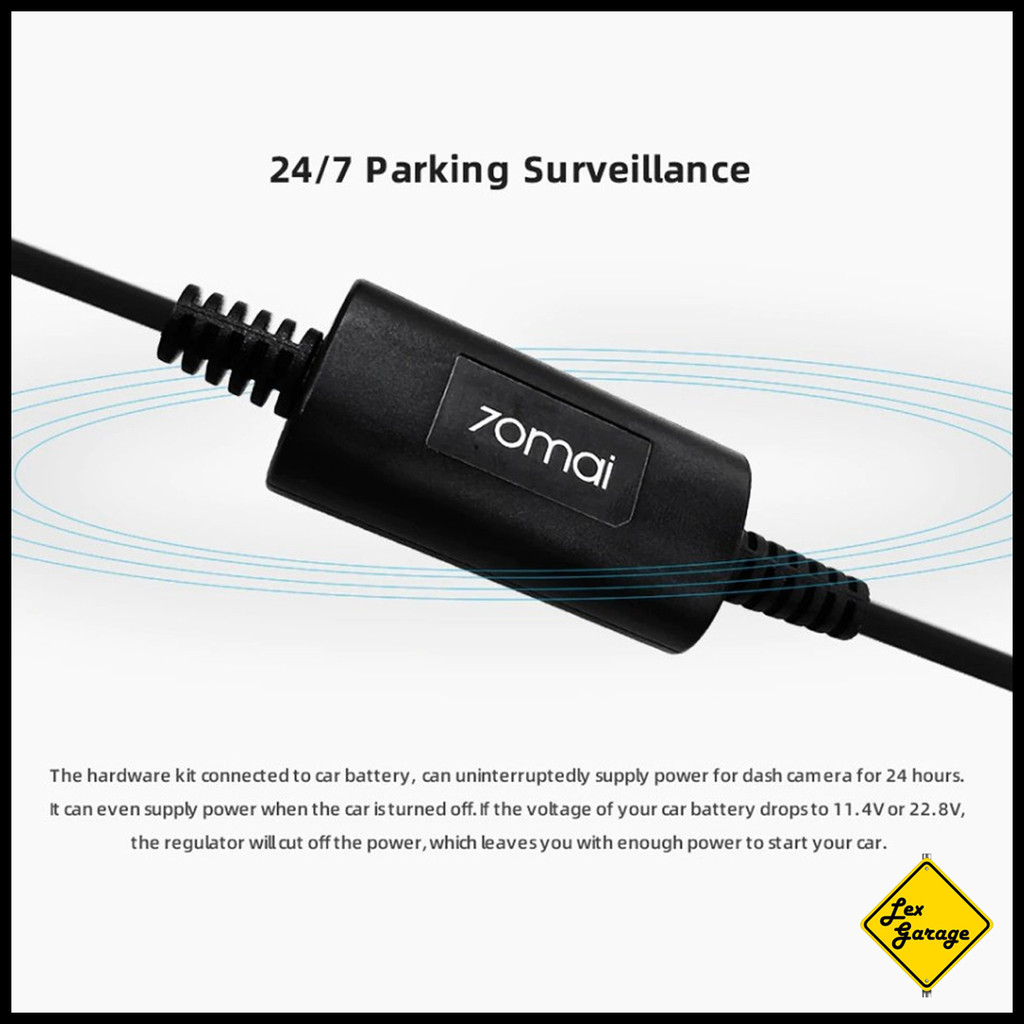

- Feature: For 24H Parking Monitoring
- Cable Length: About 3 Mtr
- Low voltage protection for small cars: 11.4V
- Low voltage protection for big cars: 22.8V
- Output voltage: DC 5V
- Input voltage: DC 12-30V


Please connect each sub-line of the parking monitoring line to the fuse box in the following:
1. The power cord (red) is connected to a normal fuse with an input voltage of 12V-30V and an output current of 2.4A in the fuse box
2. The ACC signal wire (yellow) is connected to the ACC power fuse in the fuse box
3. The ground wire (black) is connected to the negative pole of the fuse box or the grounding position
