ca-23rp lightning surge arrester coaxial anti petir jumper konektor n ca23rp antenna wifi grounding
Deskripsi singkat
Elektronik > Walkie Talkie > ca-23rp lightning surge arrester coaxial anti petir jumper konektor n ca23rp antenna wifi grounding
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Detail ca-23rp lightning surge arrester coaxial anti petir jumper konektor n ca23rp antenna wifi grounding

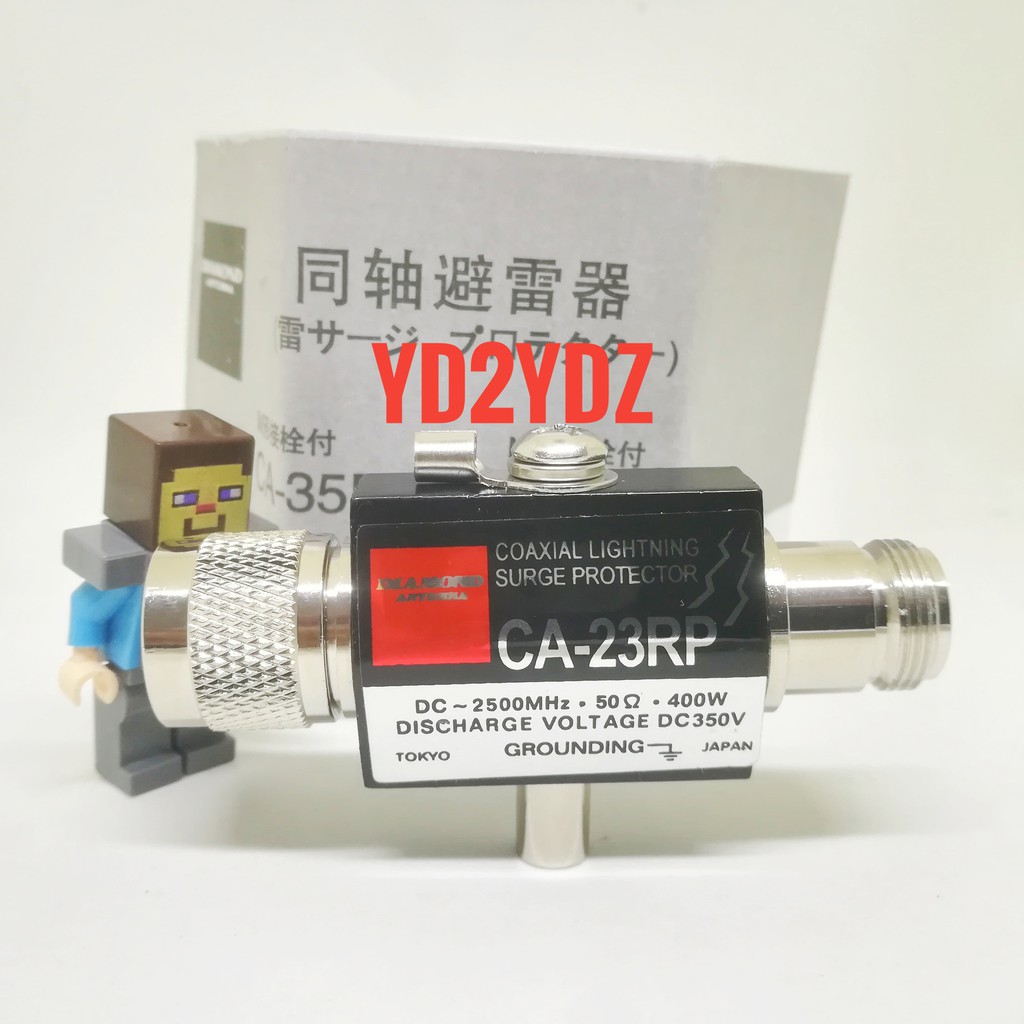

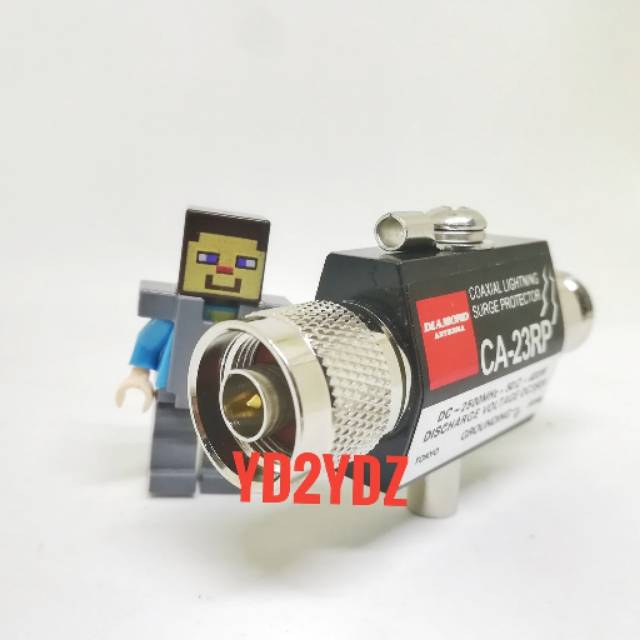

iamond CA-23RP lighting arresterDigunakan untuk proteksi kabel feedline / jumper dari antenna anda sebelum masuk ke perangkat radio
Bisa untuk radio amatir ataupun WIFI, yang menggunakan konektor N
Frequency: DC 2,500 MHz
SWR: less than 1.1
Insertion Loss: less than 0.2 dB
Max Power Rating: 400w PEP
Connector: Type N female Type N male
Impulse Wave Discharge Voltage: 1000v
Impulse Wave Discharge Capacity: 6000A
Impulse Wave Retention Discharge Capacity: DC350v 20%
Insulating Resistance DC100v: Over 10,000M ohms
Dimensions: 3.1"x1.6"x0.8" / 77Wx41Hx20D mm
Gambar produk
