C1815 KSC1815 KSC1815GRTA Transistor NPN Original FAIRCHILD ON SEMI
Deskripsi singkat
Hobi & Koleksi > Alat & Aksesoris Musik > Aksesoris Musik > C1815 KSC1815 KSC1815GRTA Transistor NPN Original FAIRCHILD ON SEMI
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail C1815 KSC1815 KSC1815GRTA Transistor NPN Original FAIRCHILD ON SEMI
Deskripsi C1815 KSC1815 KSC1815GRTA Transistor NPN Original FAIRCHILD ON SEMIManufacturer: ON Semiconductor
Product Category: Bipolar Transistors - BJT
RoHS: Details
hFE : 200 - 400
Mounting Style: Through Hole
Package/Case: TO-92-3 Kinked Lead
Transistor Polarity: NPN
Configuration: Single
Collector- Emitter Voltage VCEO Max: 50 V
Collector- Base Voltage VCBO: 60 V
Emitter- Base Voltage VEBO: 5 V
Collector-Emitter Saturation Voltage: 0.1 V
Maximum DC Collector Current: 0.15 A
Pd - Power Dissipation: 400 mW
Gain Bandwidth Product fT: 80 MHz
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Series: KSC1815
Packaging: Ammo Pack
DC Current Gain hFE Max: 700
Height: 4.7 mm
Length: 4.7 mm
Technology: Si
Width: 3.93 mm
Brand: ON Semiconductor / Fairchild
Continuous Collector Current: 0.15 A
DC Collector/Base Gain hFE Min: 70
Product Type: BJTs - Bipolar Transistors

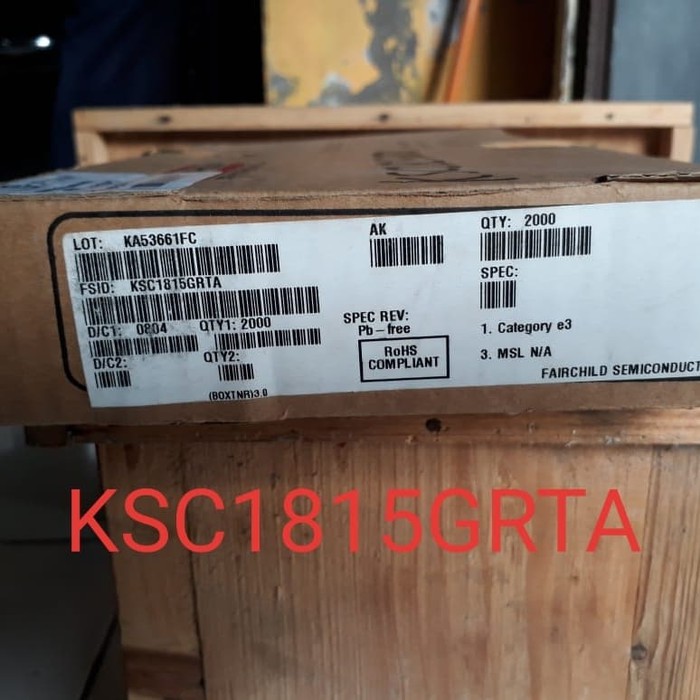

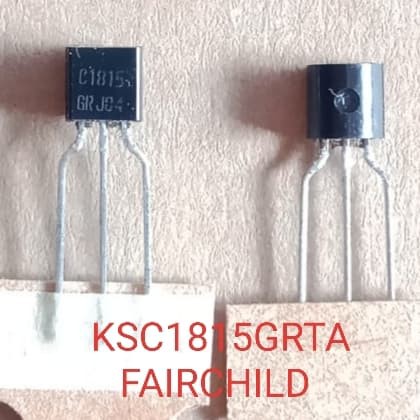

Gambar produk
