analogue audio amplification.

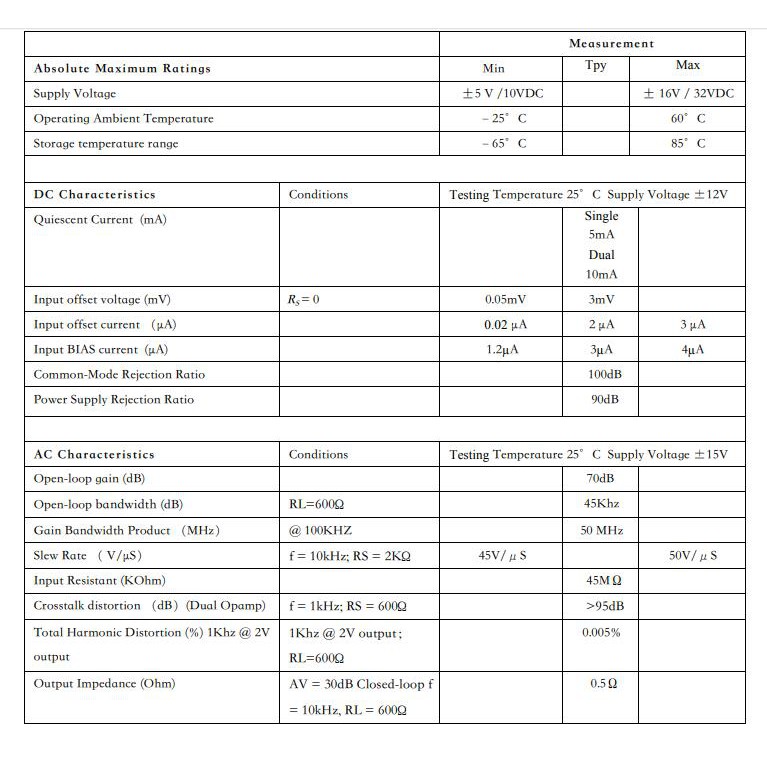

Unlike the general-purpose IC opamp designs, which focus on high open loop gain, Burson aimed to
achieve low open-loop distortion, low noise, low drift and low offset. The Supreme Sound Opamp
also exhibited a wider bandwidth and wide power supply range. These qualities are essential in high
quality analog audio amplification.

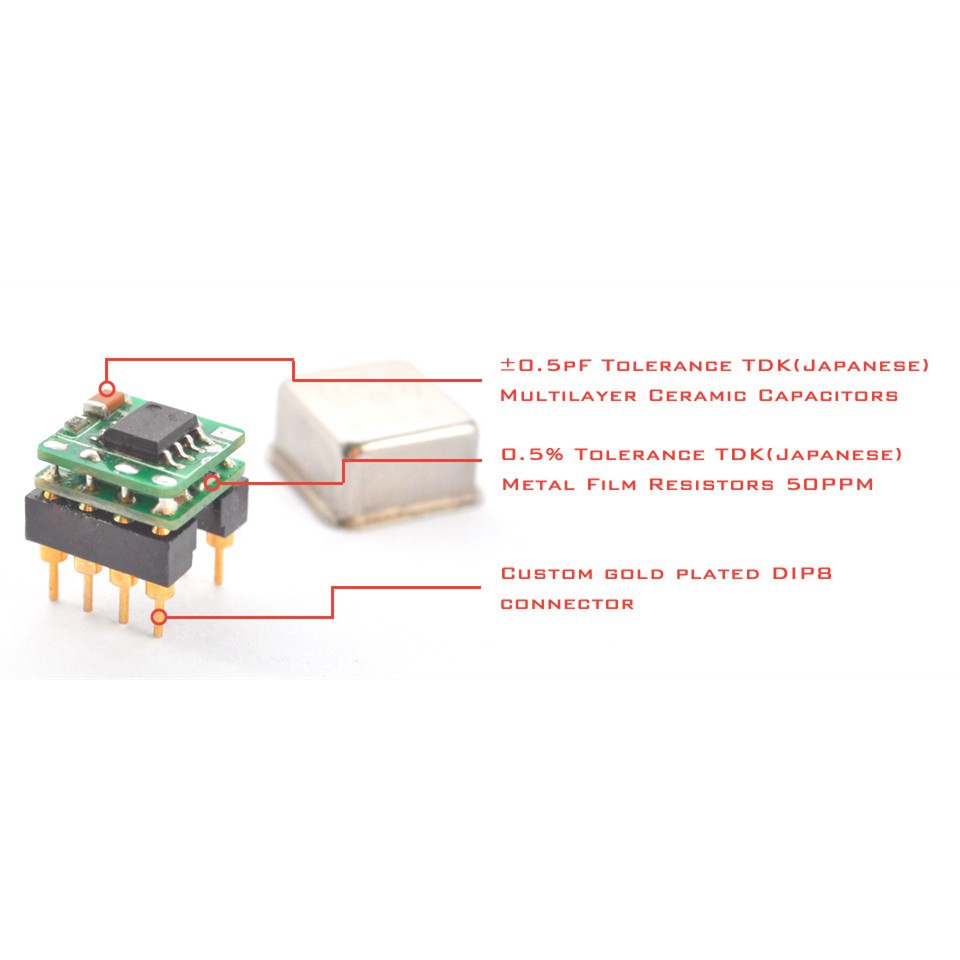

The input stage features a pair of field-effect transistors. The main amplification section employed a
current mirror configuration instead of the conventional voltage amplification. By keeping the current
limiting resistor to a minimum value we minimized RC parameter of the circuitry, and hence achieved
a wider frequency response.
The SS Opamp suitable for a wide range of audio applications.

The Burson V5i-D op amp module can directly replace the following types of op amps:

Dual op amps:
AD823, AD823AN, AD8066, AD8620, AD712, AD827, C4570, JRC4580, JRC5532, JRC5532D, JRC5534, LF353, LM4562, LME49860, LM833N, MUSES8920, NE5532, NEC4520, NEC4570, NJM2068D, NJM2114, NJM2214D, NJM4558, NJM4558D, NJM4560, NJM5532, NJM4558P, OP275, OPA1612, OPA2277PA, OPA2132, OPA2134, OPA2604, JRC4558, RC4558D, RC4558P, TL052, TL072, MUSES01, MUSES02, MUSES8820, MUSES8920, MUSES8832, BA15532

Single op amp:
NE5534, LT1122, OPA134, OPA627, AD811, AD844, OPA604, AD8610, AD797, LME49990, LME49710
