Buck Boost Converter DC CC CV 0.6-36V 5A Power Supply Modul Adjustable ZK-5KX

Detail Buck Boost Converter DC CC CV 0.6-36V 5A Power Supply Modul Adjustable ZK-5KX

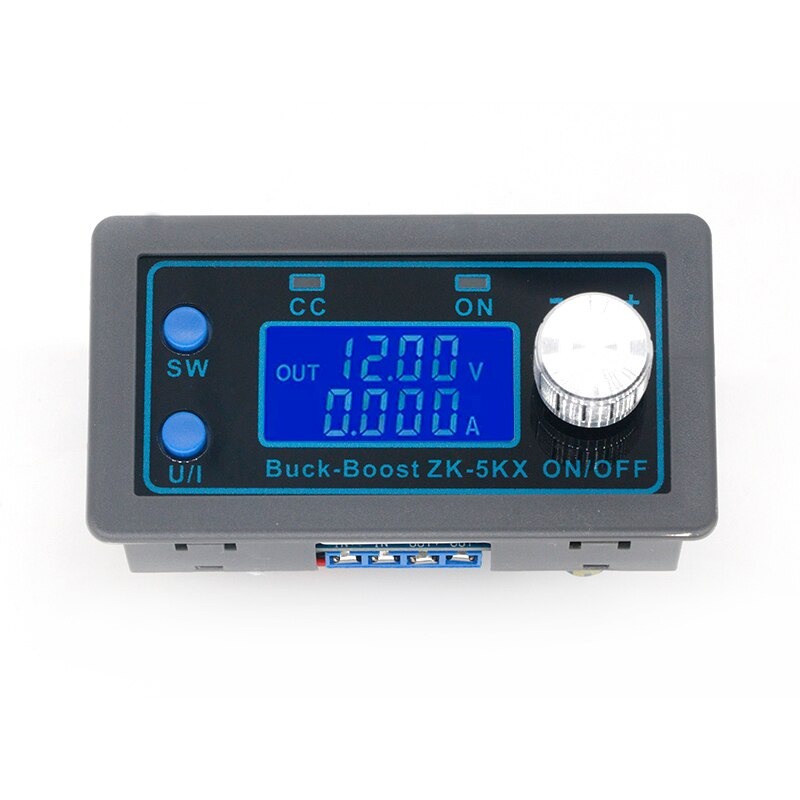

ZK 5KX DC DC Buck Boost Converter Programmable
CC CV 0.6-36V 5A 5V 12V 24V 80W
Power Module Adjustable Regulated Power Supply

(gunakan input adaptor maks 30V untuk menghindari kerusakan)

Product parameters:
Input voltage: 6.0-36V
Output voltage: 0.6-36v
Output current: 5A max
Output power: 80w
Voltage display resolution: 0.01V
Current display resolution: 0.001A
Conversion efficiency: about 88%
Soft start: Yes (it may fail when the module with high power load is started)
protection mechanism:
Input anti-reverse connection;
Output anti-backflow;
Input undervoltage protection (5.8-36V adjustable, default 5.8V)
Output overvoltage protection (0.6-36V adjustable, default 36V)
Output overcurrent protection (0 -5A adjustable, default 5A)
Output over power protection ((0 -80W adjustable, default 80W)
Over temperature protection (80-110°C adjustable, default 110°C)
Timeout protection (0 -100h adjustable, closed by default)
Over-capacity protection (0 -60Ah adjustable, closed by default)

Working frequency: 120KHZ
Size: length * width * height 79mm*43mm*48mm
Weight: about 119g (including packaging)

Packing list:
1*Boost-Boost DC Adjustable Power Module

Gambar produk
