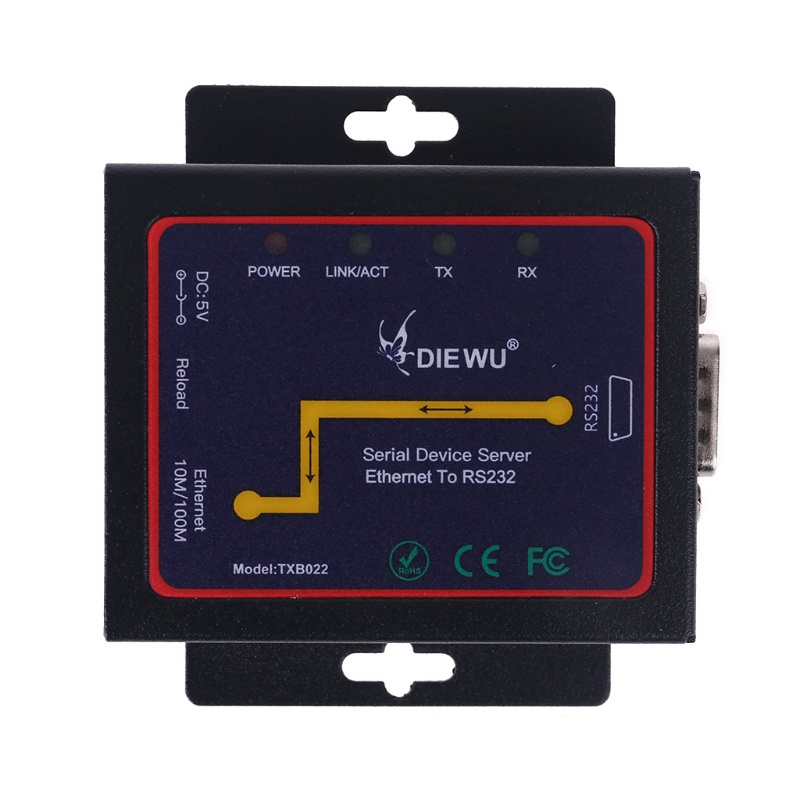

DB9 RJ45 to RS232 Ethernet TCP/IP Serial Server Module Ethernet Device Communication Converter
100% brand new and high quality
Features:
Support Auto-MDI/MDIX
Support TCP server,TCP client, UDP
Support web browser settings
Baud-rate support 300bps-230400bps
Support reload function
Support modbus RTU

Specification:
Model Number: TXB022
Chipset: IP210
Port Number: 1 port 10/100M Auto MDI-MDIX RJ45,1*Com port
Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3az
Net work media: 10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP
Data Rate: 10/100M
Forwarding Rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
LED Indicator: Link/Act, Power, TX/RX
Baud Rate: 300bps~230400bps
Operation Modes: TCP Server, TCP Client, UDP
Power Input: DC5V
Power Consumption: Max1.5W
Operating Temperature: -10 -55 Degree
Material: PCB

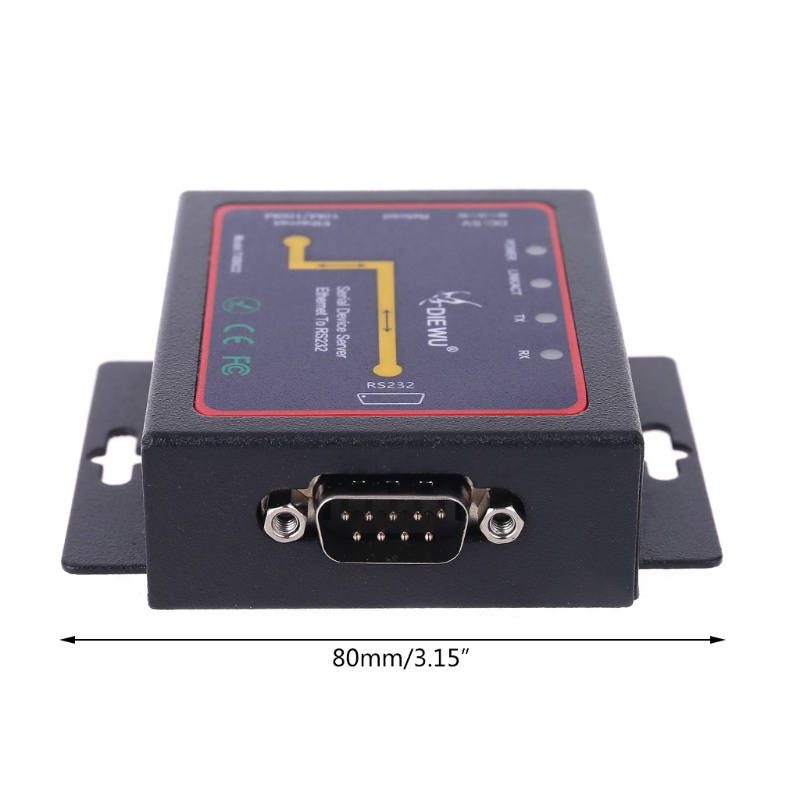

Baffle Size: approx.120mm/4.72in
Color: As pictures shown
Quantity: 1 Set

Note:
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

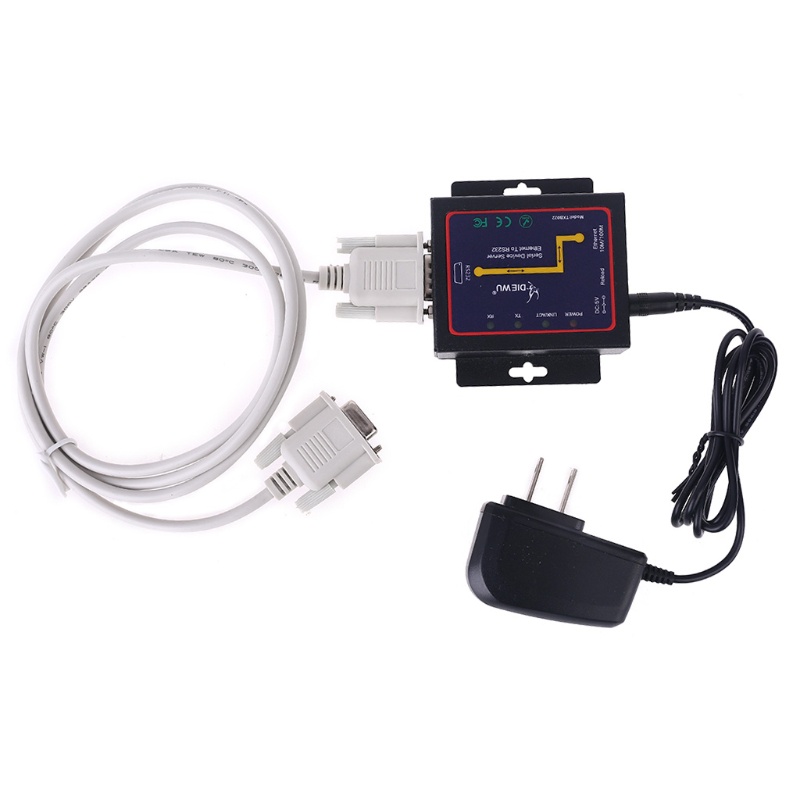

Package Includes:
1 x RJ45 to RS232 Converter
1 x US Plug Adapter
1 x USB Cable
