btsg AR9285 AR5B95 Half Height Mini PCI-E 150Mbps Wireless Wlan WiFi Card For Atheros

Komputer & Aksesoris > Komponen Network > Wireless Adapter & Kartu Network > btsg AR9285 AR5B95 Half Height Mini PCI-E 150Mbps Wireless Wlan WiFi Card For Atheros
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail btsg AR9285 AR5B95 Half Height Mini PCI-E 150Mbps Wireless Wlan WiFi Card For Atheros

#AR9285 #AR5B95 #Half #Height #Mini #PCI-E #150Mbps #Wireless #Wlan #WiFi #Card #For #Atheros

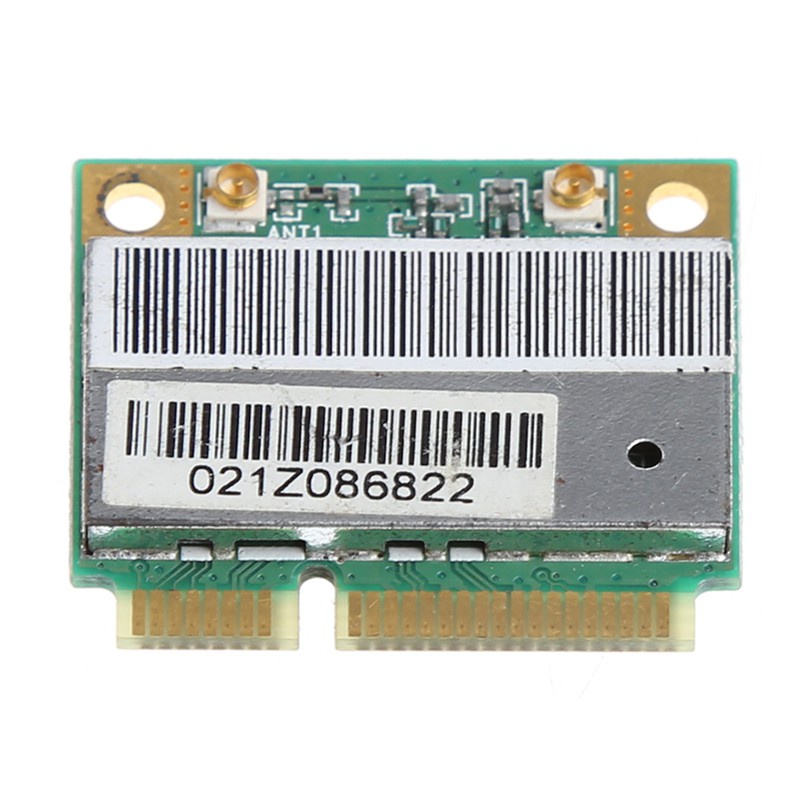

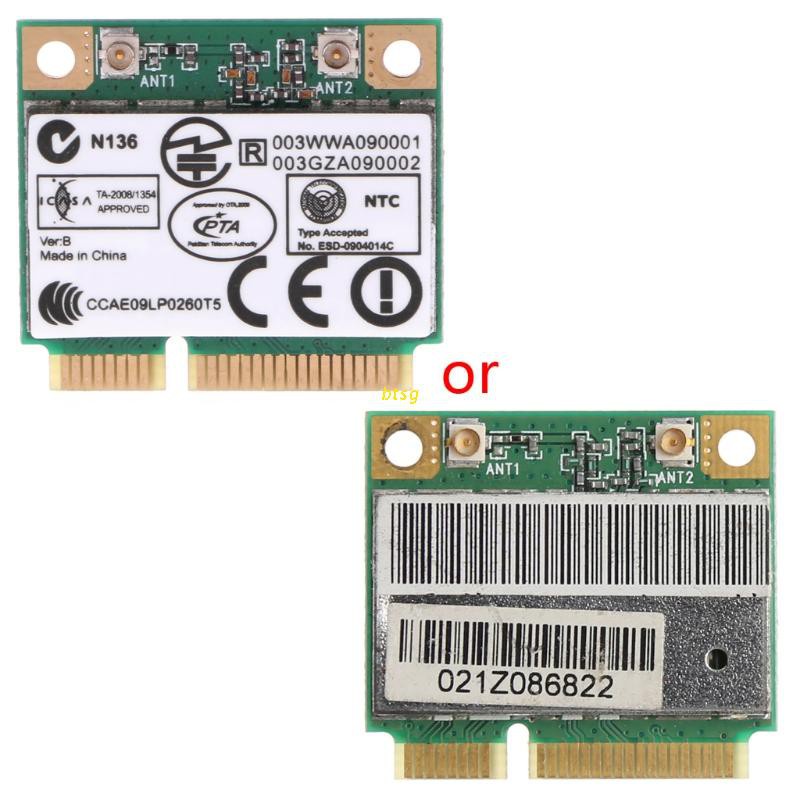

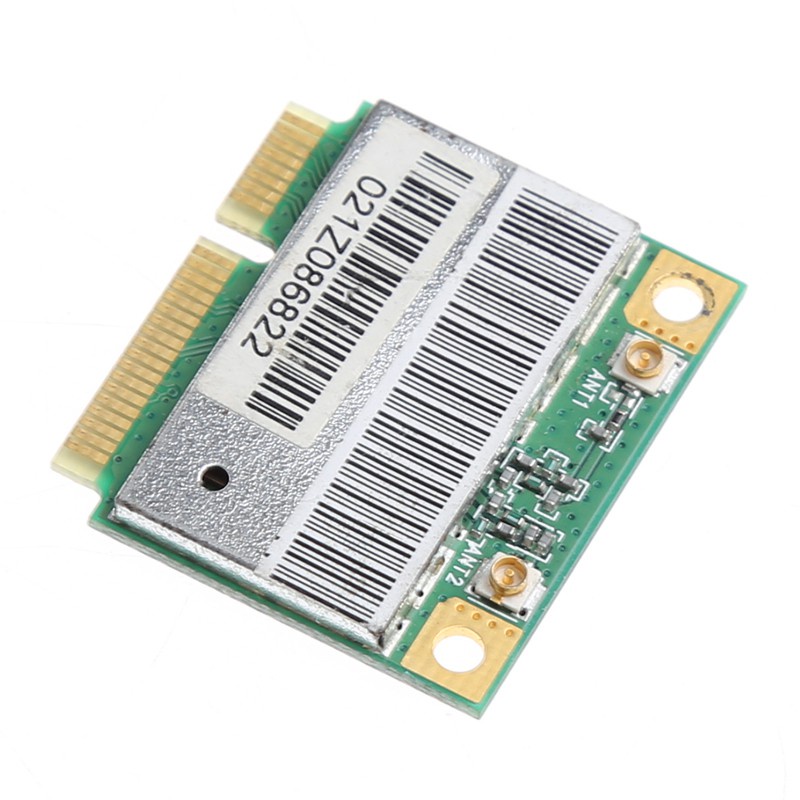

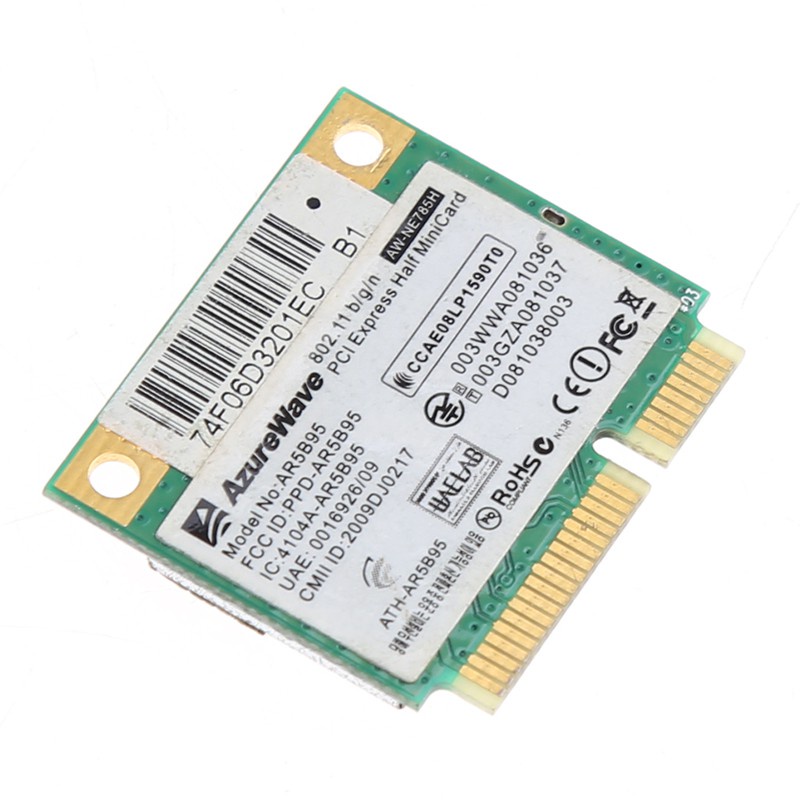

AR9285 AR5B95 Half Height Mini PCI-E 150Mbps Wireless Wlan WiFi Card For Atheros
Features:
This module is compatible with ALL laptops that have a Half mini PCI internal slot except IBM, HP machines.
The AR9285 single-chip PCI Express solution features Atheros Align technology which leverages the 802.11n 1 stream specification to provide the optimal upgrade path from legacy 802.11 solutions.
Slide this mini PCI Express card into an available slot for wireless data transfer rates of up to 150 Mbps.
The single-stream feature enables a new class of Wi-Fi devices that deliver performance enhancements over the existing 802.11g technology, at comparable price points.
The Atheros AR9285 single-chip PCI Express (PCIe) solution is a highly integrated MAC/Baseband/Radio solution that is backward compatible to 802.11g and forward compatible to 11n.

Specifications:
Item Type: WiFi Half Mini PCI-E Card

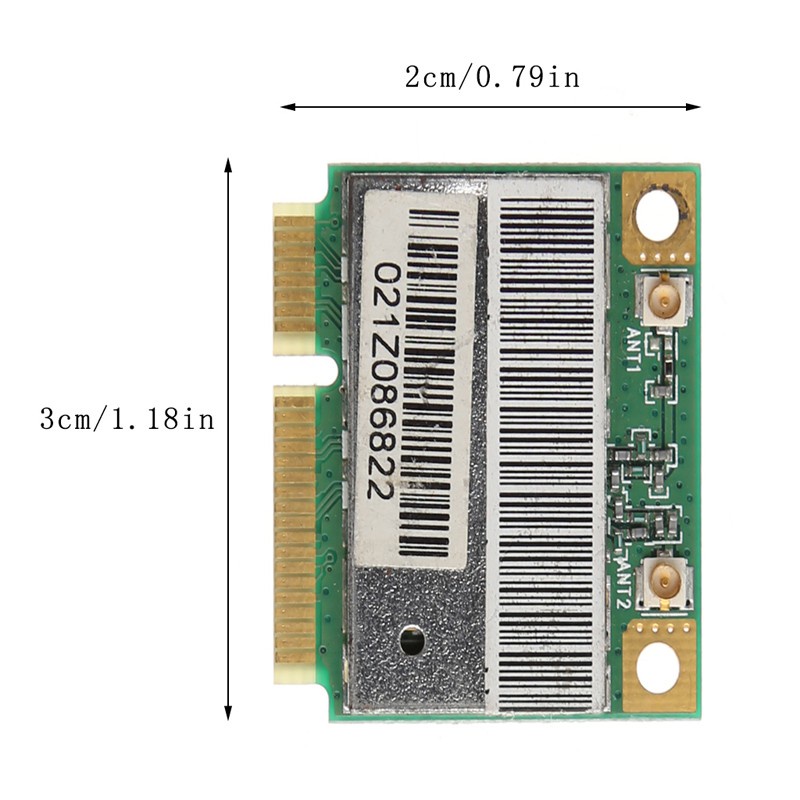

Size: 30×20mm/1.18×0.79in (Approx.)
Model: AR5B95 AR9285
Interface Type: Half MINI PCI-E
Chip: Atheros AR9285
Applicable Network Type: Fast Ethernet
Frequency Range: Single frequency (2.400GHz~2.4835GHz)
Transmission Rate: 150Mbps
Channel: FCC 1 ~ 11 Channels / ETSI and Telec 1 ~ 13 Channels
Antenna: 1T2R mode
Channel bandwidth: support 20 / 40MHz
Operating radius: up to 300m (outdoor operating range)
Spread Spectrum: IEEE 802.11b (DSSS), IEEE 802.11g / n (OFDM)
Security: 64/128-bit WEP, WPA, WPA2, TKIP, AES, 802.1x, CCX
MIMO (Multiple Input, Multiple Output) support 802.11n 1x2 MIMO
Supported QoS and WMM
Supported Operating Systems: Microsoft Win XP, vista, Windows 7/8/8.1/10 32/64-bit,etc.
Quantity:1PC (other accessories demo in the picture are not included)

Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!!
Compare the detail sizes with yours, please allow 1-4CM differs due to manual measurement, thanks!

Package includes:
1 X Mini PCI-E Wireless Card (No retail package)
