Altera MAX II EPM240 CPLD Development Board Learning Experiment Board Breadboard
100% brand new and high quality

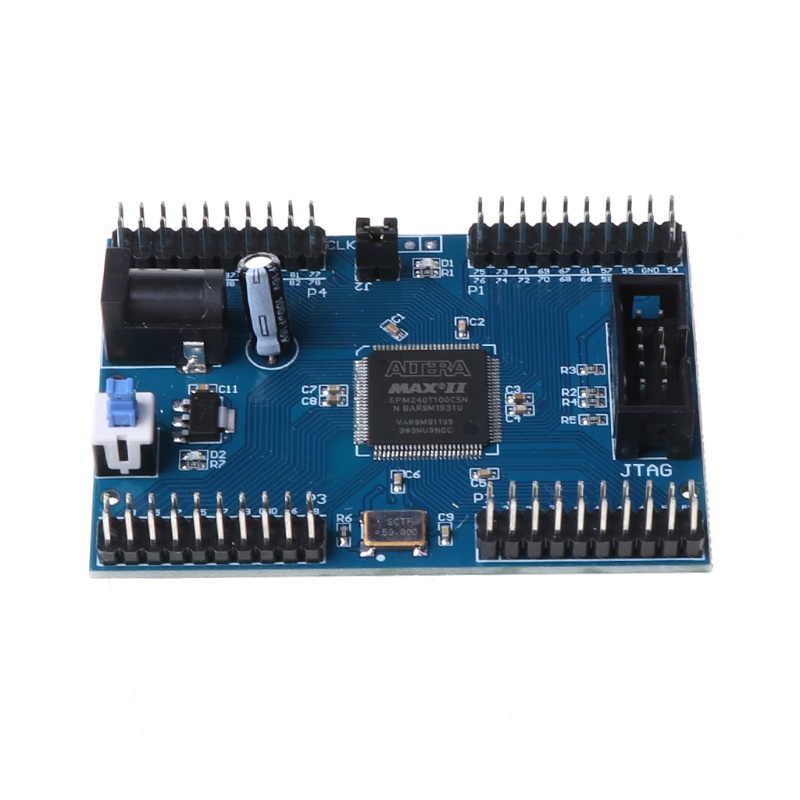

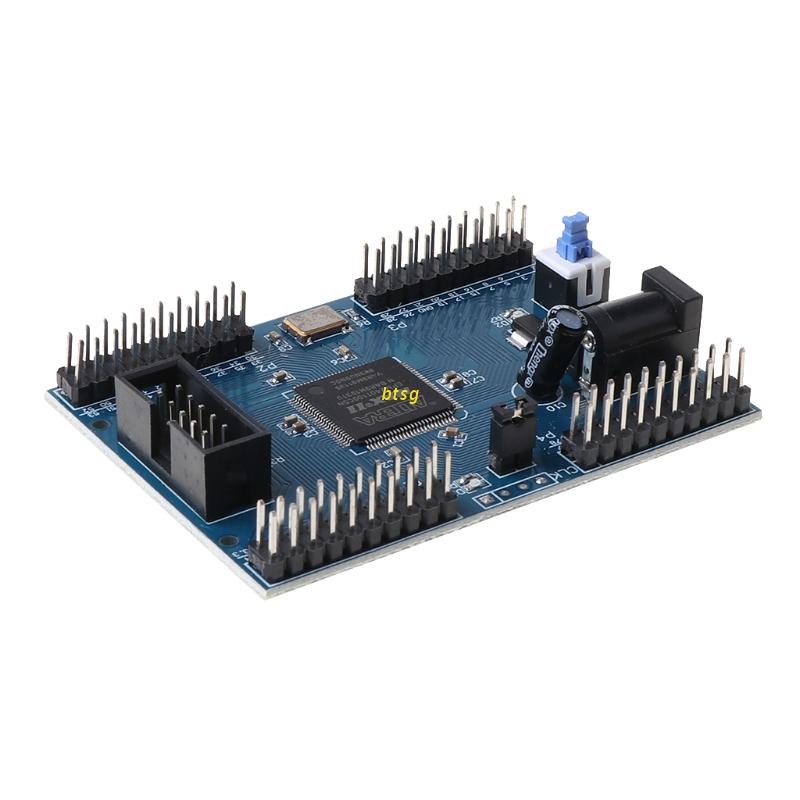

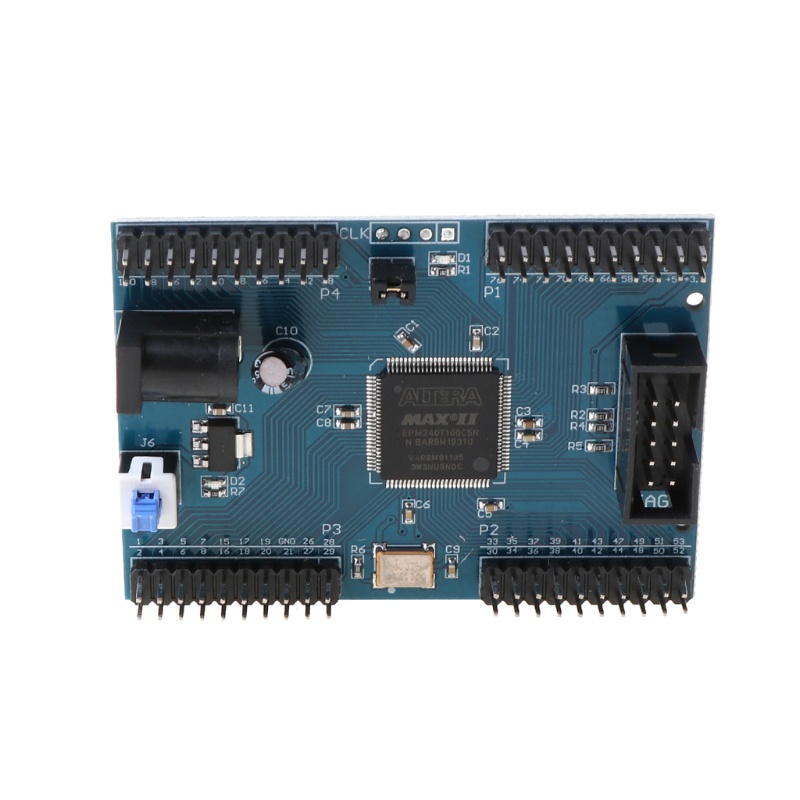

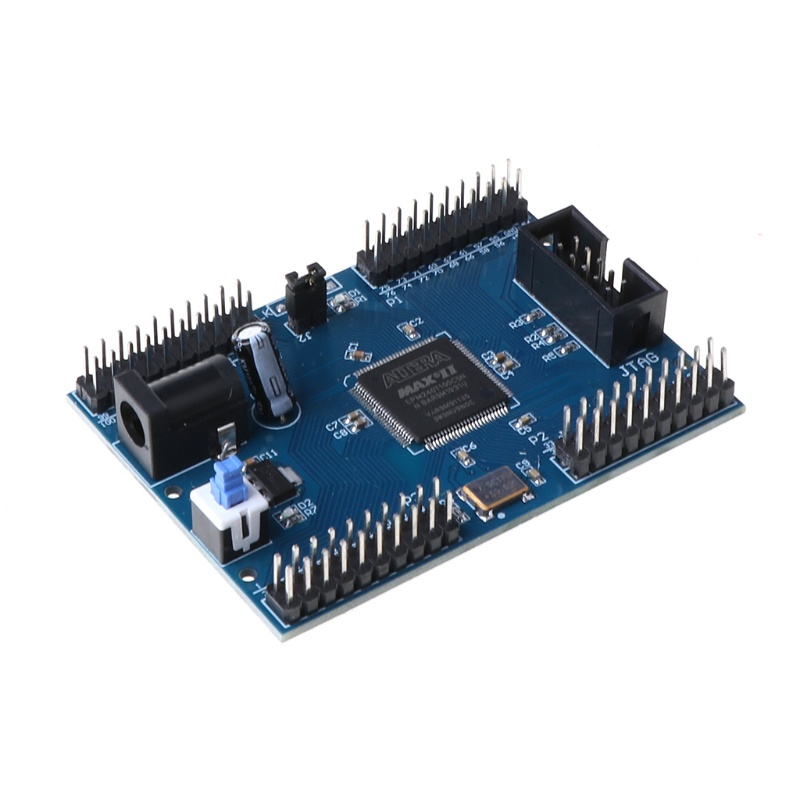

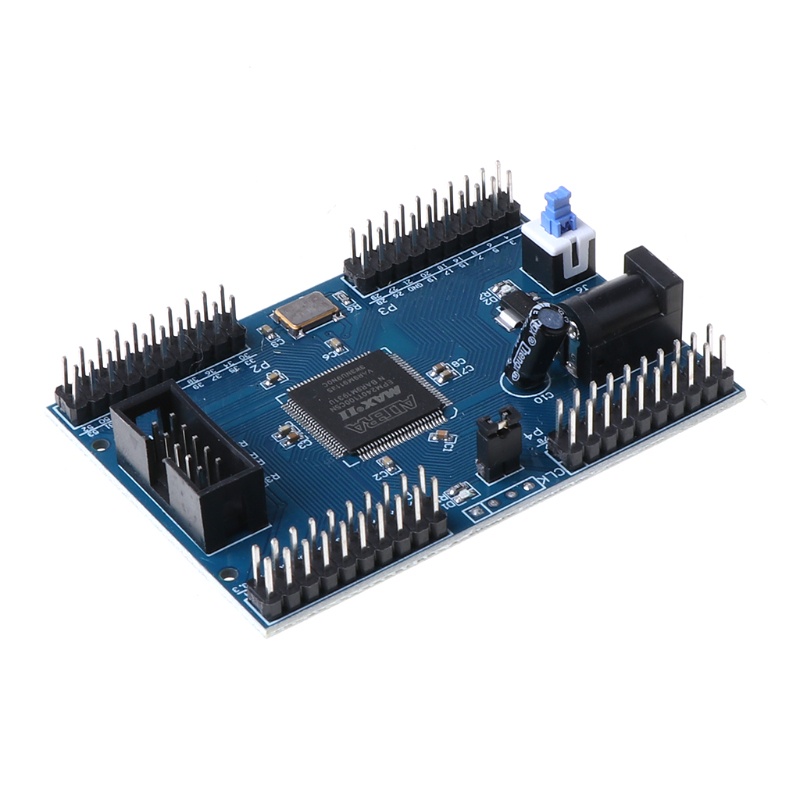

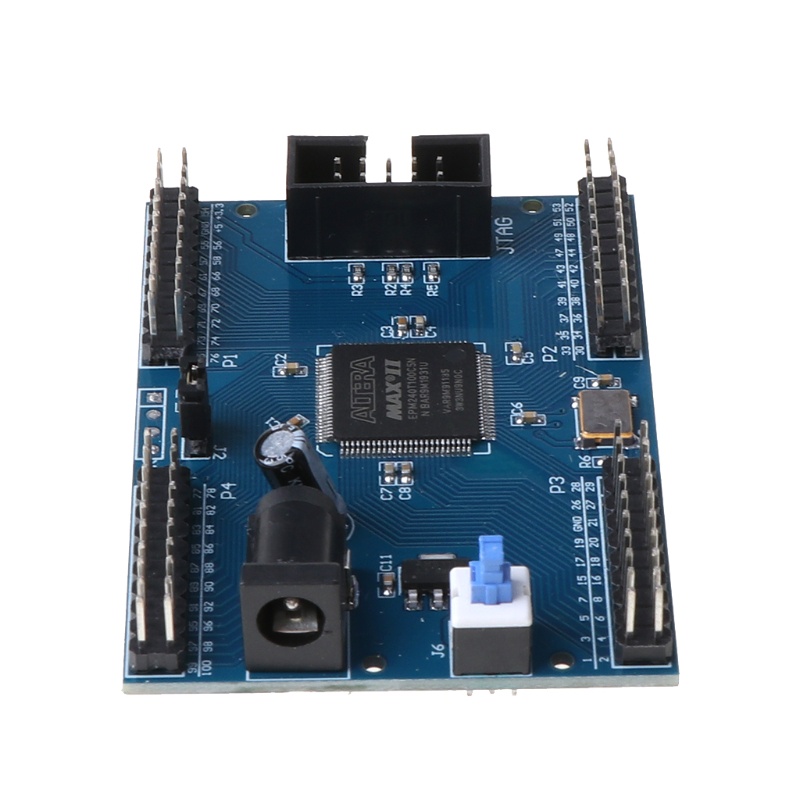

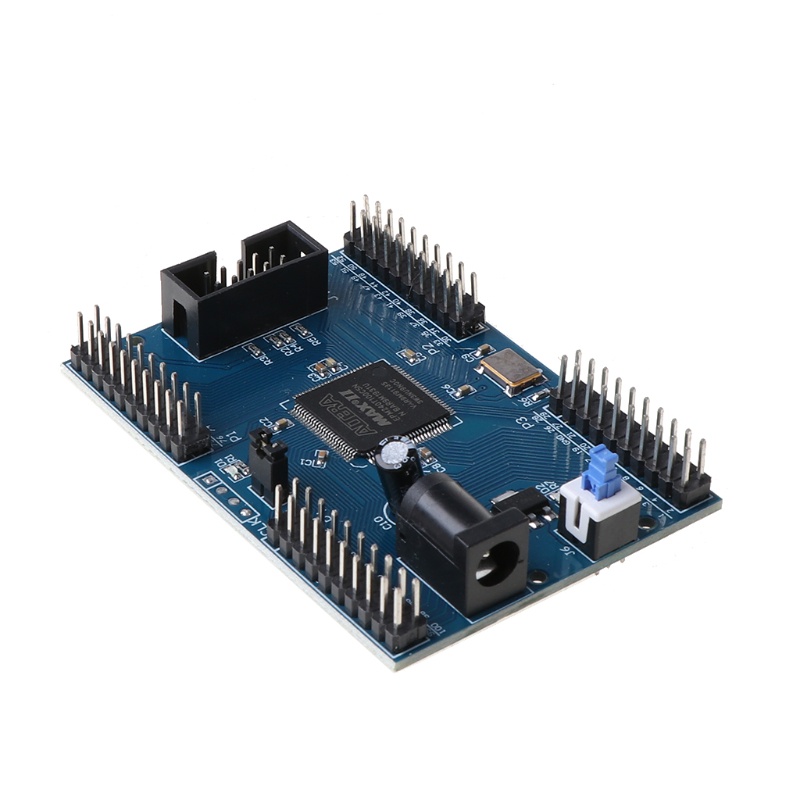

The product is ALTERA MAX II family CPLD chip EPM240T100C5N minimum system board, together with a Byte-Blaster and USB-Blaster Download for product validation and development. JTAG and power supply interface board has been set aside, and leads to all the pins, simply connect the 5V power supply can work extremely convenient to use. The CPLD chip for the entry of low-cost CPLD / FPGA is very appropriate, the user according to the IO port of the core plate leads to expansion of the external circuitry such as: LED lights, digital tube, LCD liquid crystal, serial communications, etc. . Facilitate the users to develop their own products to maximize the learning development cost savings for the user.
chip board EPM240T100C5
Board JTAG interface,
Active board 50MHZ crystal
With a programmable LED
With a 5V chip, 3.3V AMS1117-3.3 switch
5 V power supply with switch
All the leads all the IO

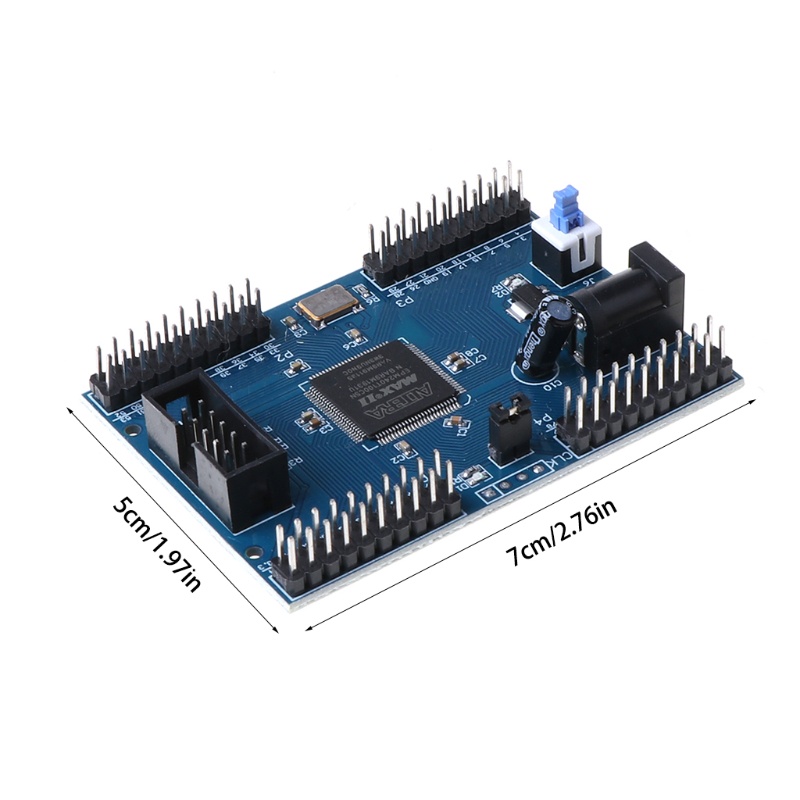

The board size 5CM * 7CM
Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:
Development Board x 1
