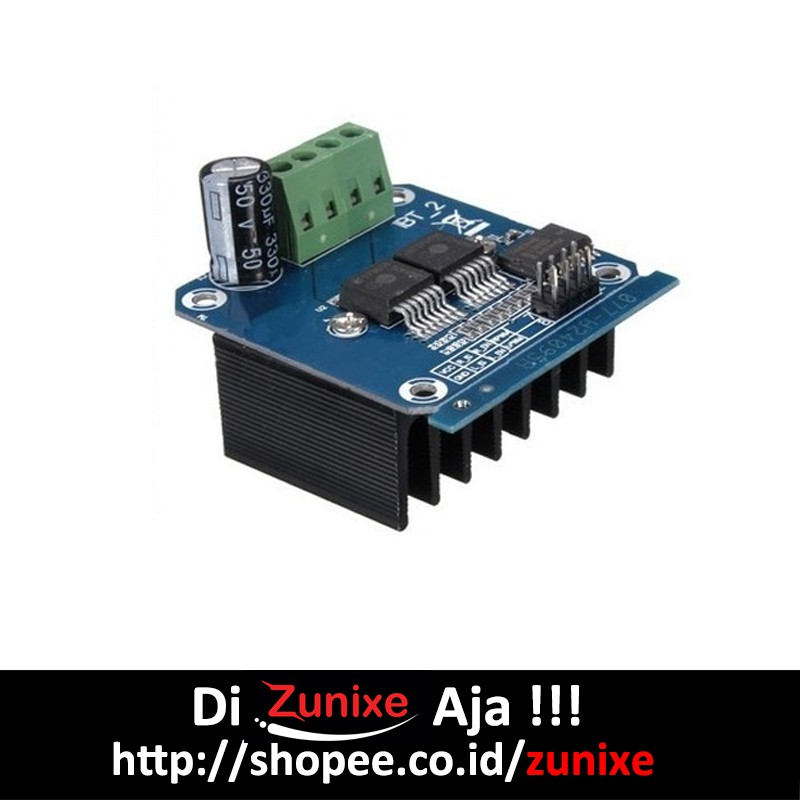

Detail BTS7960 43A SMART CAR MOTOR DRIVE MODULE

High Current Motor Driver H-Bridge Module BTS7960 43A for Arduino AO21

Description:
High Current Motor Driver Module BTS7960 is actually an H-bridge driver based on the Infineon chips BTS7960. The BTS7960 is a high power H-bridge driver module with thermal over current protection. High Current Motor Driver BTS7960 circuitry with the 74HC244 chip effectively isolates the microcontroller and the motordriver. It provides strong drive and handle upto 43A.

High Current Motor Driver Module BTS7960 Specifications:
Input voltage: 6V-27V
Model: IBT-2
Maximum current: 43A
Input level: 3.3-5V
Control mode: PWM or level
Duty cycle: 0-100%
High Current Motor Driver Module BTS7960 Applications:

Current diagnostic
Slope adjustment
Dead Time generation
Overtemperature, overvoltage, undervoltage, overcurrent protection
Short circuit protection

#BTS7960 #smartcar #robot
