Detail BTS7960 43A H-Bridge High-Power Stepper Motor Driver module

Hi #RekanEasyWare ...
EasyWare Part#: EP000659

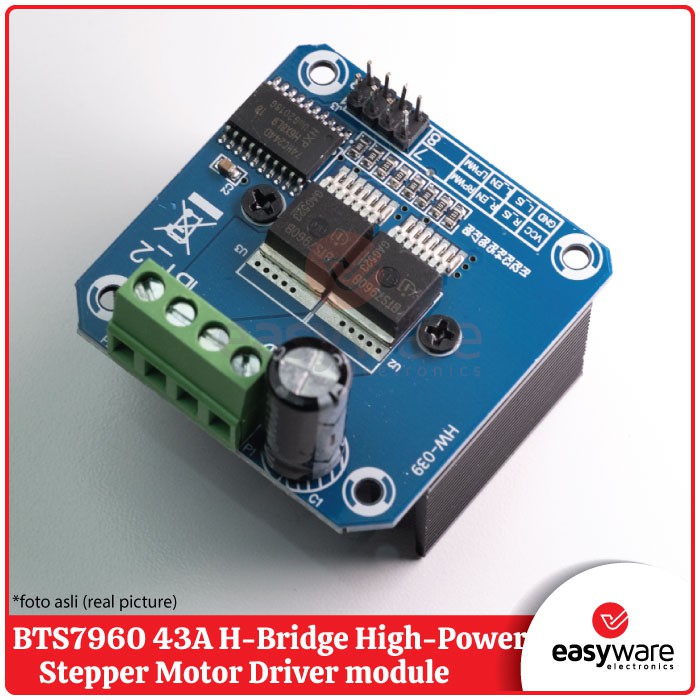

The Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module is; a fully integrated high current H bridge for motor drive applications using the BTS7960 high current half bridge. the BTS7960 is part of the NovalithICTM family. This containing one p-channel high side MOSFET and one n-channel low side MOSFET; with an integrated driver IC in one package. Due to the p-channel high side switch; the need for a charge pump is eliminated thus minimizing EMI.

FEATURES :
- PWM capability of up to 25 kHz combined with active freewheeling.
- Switched mode current limitation for reduced power dissipation in overcurrent.
- Status flag diagnosis with current sense capability.
- Overtemperature shut down with latch behavior.
- Overvoltage lockout.
- Undervoltage shut down.
- Driver circuit with logic level inputs.
- Adjustable slew rates for optimized EMI.
- 74AHC244 Schmitt-trigger Octal buffer/line driver for ESD protection (Inputs accepts voltages higher than VCC).

SPESIFICATIONS :
- Input voltage(V): 6 27.
- Maximum current(A): 43.
- Input level(V): 3.3 5.
- Duty cycle: 0 100%.
- Path resistance: 16 m at 25C.
- Low quiescent current: 7 A at 25C.

PACKAGE :
- 1x Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module
