BTN7971B IC MOTOR DRIVER HIGH CURRENT BTN7971B GRA728 IC DRIVER MOTOR

Detail BTN7971B IC MOTOR DRIVER HIGH CURRENT BTN7971B GRA728 IC DRIVER MOTOR

Features :
• Path resistance of max. 30.5 mΩ @ 150 °C (typ. 16 mΩ @ 25 °C)
High Side: max. 12.8 mΩ @ 150 °C (typ. 7 mΩ @ 25 °C)
Low Side: max. 17.7 mΩ @ 150 °C (typ. 9 mΩ @ 25 °C)
• Low quiescent current of typ. 7 μA @ 25 °C
• PWM capability of up to 25 kHz combined with active freewheeling
• Enhanced switching speed for reduced switching losses
• Switched mode current limitation for reduced power dissipation in overcurrent
• Current limitation level of 50 A min. / 70 A typ. (low side)
• Status flag diagnosis with current sense capability
• Overtemperature shut down with latch behavior
• Overvoltage lock out • Undervoltage shut down
• Driver circuit with logic level inputs
• Adjustable slew rates for optimized EMI
• Green Product (RoHS compliant)
• AEC Qualified

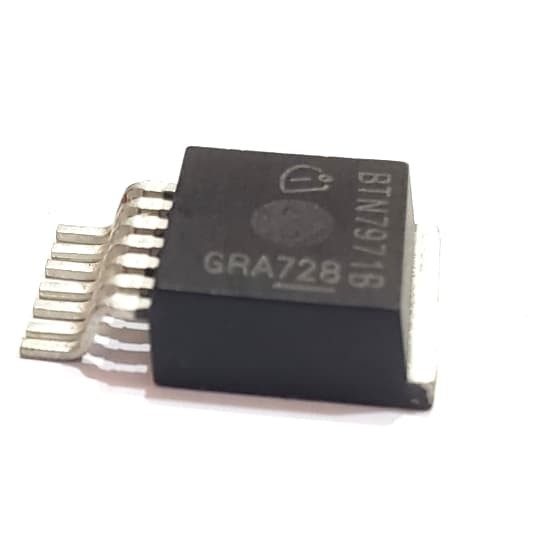

Gambar produk
