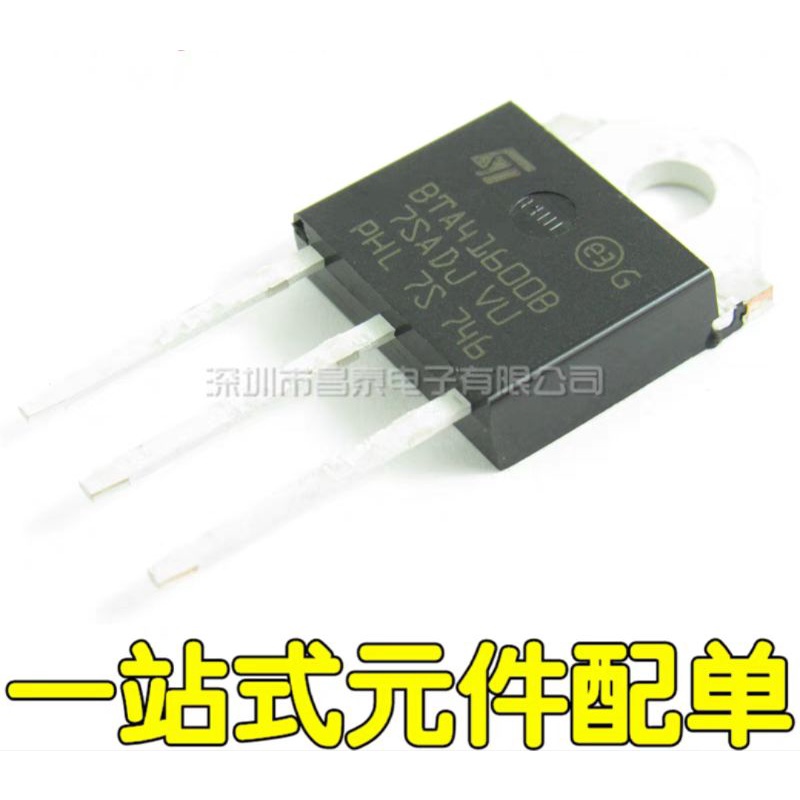

Detail BTA41600B BTA41-600B BTA41 600B 600V 40A Thyristor Dua Arah

BTA41-600B BTA41 600B 600V 40A Silicon Controller Rectifier BG81

Descirption:
Available in high power packages, the BTA/BTB40-41 series is suitable for general purpose AC switching. They can be used as an ON/OFF
function in applications such as static relays, heating regulation, induction motor starting circuits... or for phase control operation in light dimmers, motor speed controllers.

Feature:
Product Name : Triacs;
Model : BTA41-600B
Voltage : 600V;
RMS on-state Current : 40A
Mounting Hole Diameter : 4mm/ 0.16";
Pin Size : 16 x 5.04mm/ 0.63" x 0.2" ( L* Pitch)
Body Dimension : 36 x 15 x 4mm/ 1.4" x 0.6" x 0.16" (L*W*T);
