BTA41 BTA41-600B TOP-3 TRIAC 40A 600V THYRISTOR
Deskripsi singkat
Elektronik > Elektronik Lainnya > BTA41 BTA41-600B TOP-3 TRIAC 40A 600V THYRISTOR
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail BTA41 BTA41-600B TOP-3 TRIAC 40A 600V THYRISTOR
SMC-0026========
Deskripsi:
=================================
Bagi agan yang ingin mendrive device 220V tetapi nggak mau berisik dengerin
relay cetak cetok, bisa pakai rangkaian triac controller. Salah satu komponennya
adalah BTA41.
Spesifikasi:
=================================
- IT(RMS) : 40A
- VDRM/VRRM : 600v
- IGT : 100mA
- VGT : 1.5v
- Minimum Operating Temperature: - 40 C
- Maximum Operating Temperature: + 125 C
Features :
=================================
- High current TRIAC
- Low thermal resistance with clip bonding
- High commutation capability
- BTA series UL1557 certified (File ref: 81734)
- Packages are RoHS (2002/95/EC) compliant
Applications
=================================
- On/off function in static relays, heating regulation, induction motor starting
circuits
- Phase control operations in light dimmers, motor speed controllers, and
similar
Paket :
=================================
- 1x BTA41 BTA41-600 TOP-3 TRIAC 40A 600V THYRISTOR
terima kasih
UNTUK HARGA GROSIR CHAT US ^^

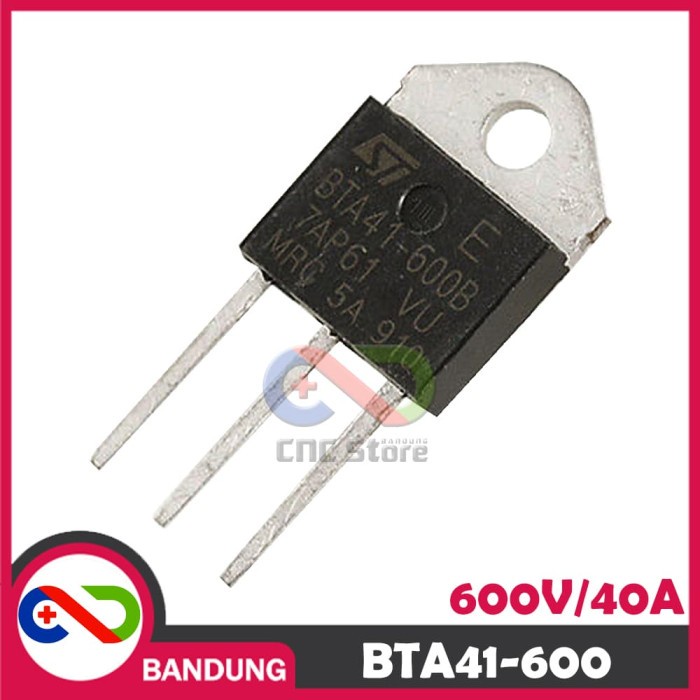

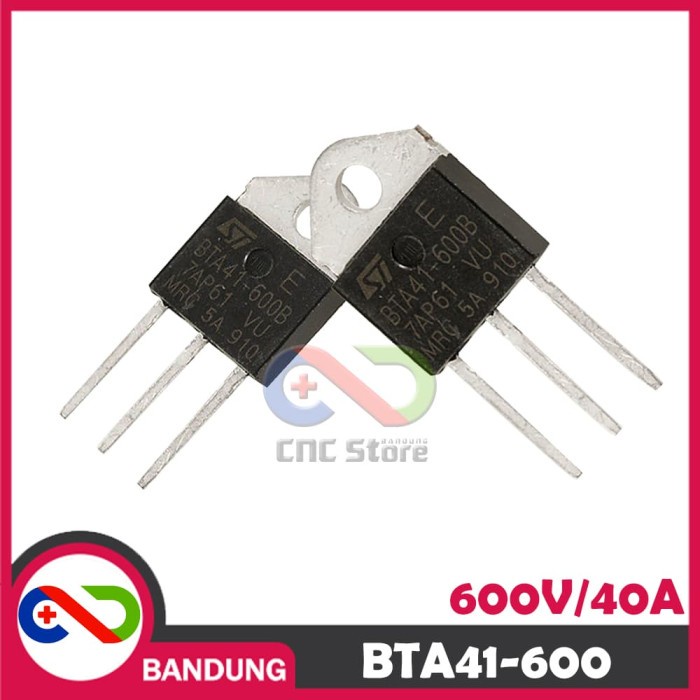

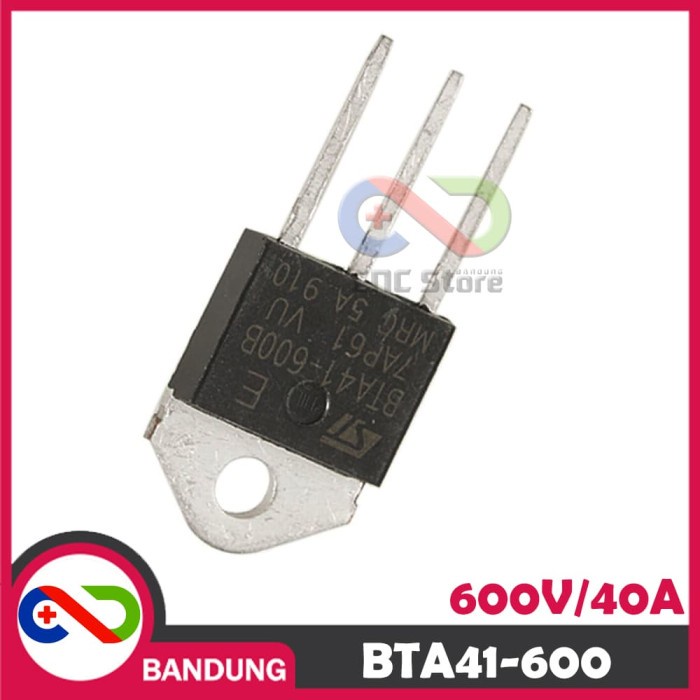

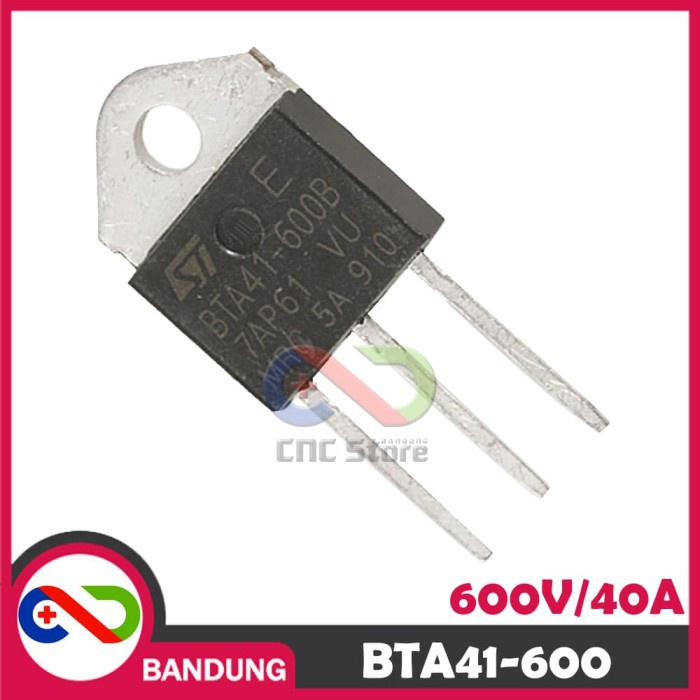

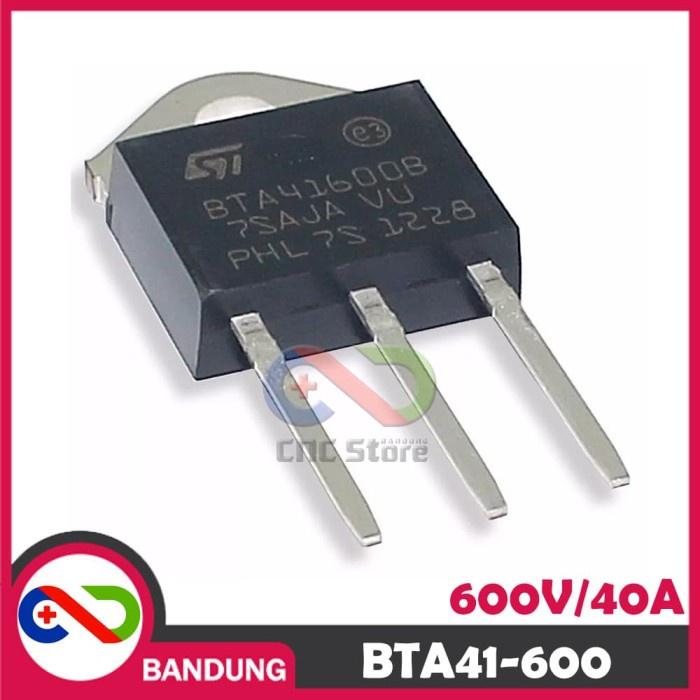

Gambar produk
