Detail BT151 600R BT151-600R 600V 7.5A 127 Thyristor T0-220AB BE31

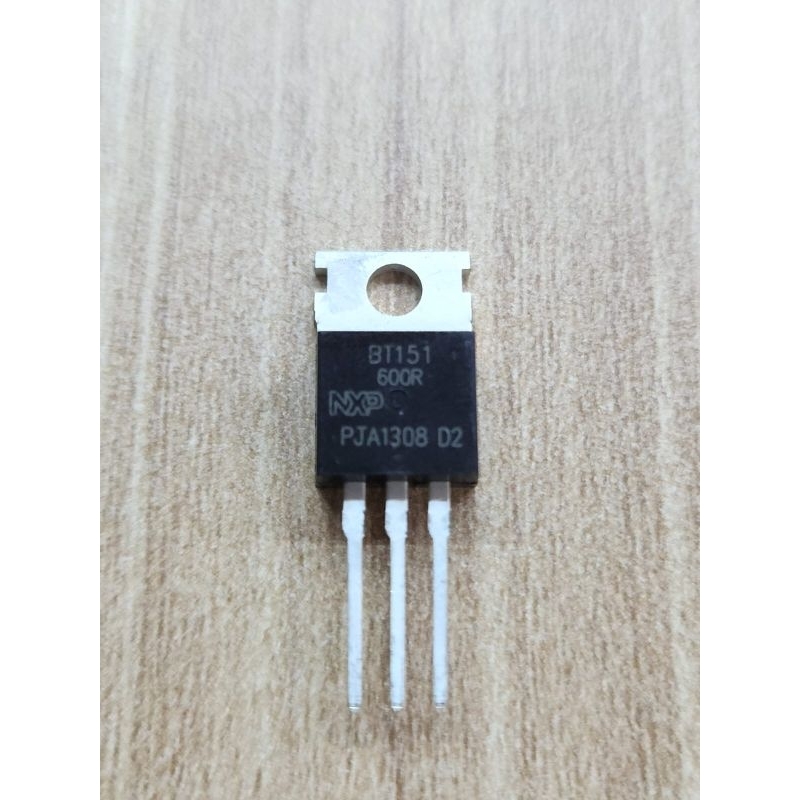

BT151 600R BT151-600R 600V 7.5A 127 Thyristor T0-220AB BE31

Description:
Glasspassivated thyristors ina plastic envelope, intended for use in applications requiring high bidirectional blocking voltage capability and high thermal cycling performance. Typical applications include motor control, industrial and domestic lighting, heating and static switching.

Feature:
Voltage - Off State:600V
Voltage - Gate Trigger (Vgt) (Max):1.5V
Current - Gate Trigger (Igt) (Max):15mA
Voltage - On State (Vtm) (Max):1.75V
Current - On State (It (AV)) (Max):7.5A
Current - On State (It (RMS)) (Max):12A
Current - Hold (Ih) (Max):20mA
Current - Off State (Max):500A
Current - Non Rep. Surge 50, 60Hz (Itsm):120A, 132A
