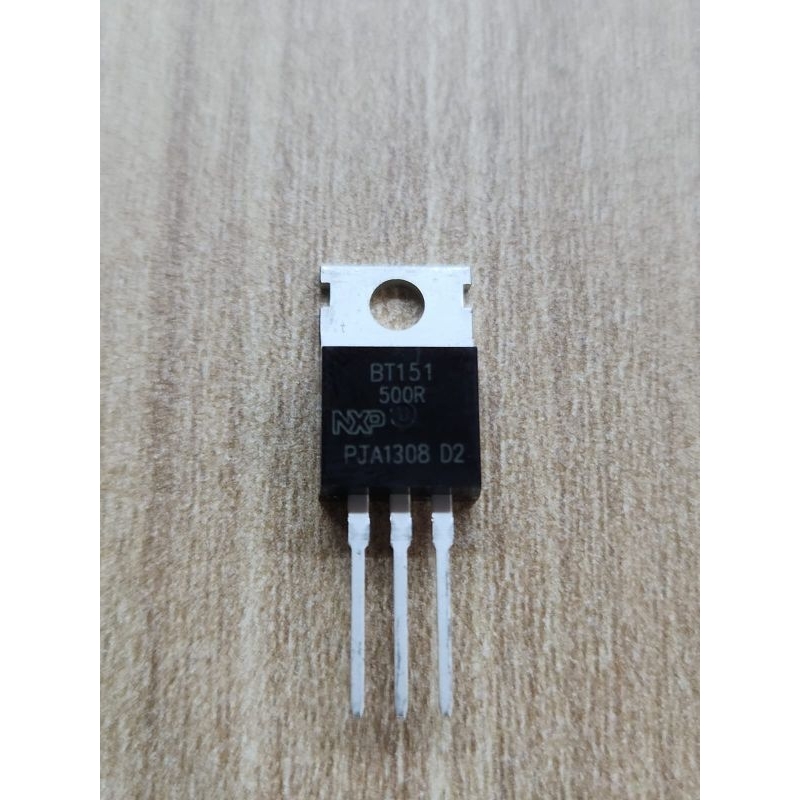

Description: Glasspassivated thyristors ina plastic envelope, intended for use in applications requiring high bidirectional blocking voltage capability and high thermal cycling performance. Typical applications include motor control, industrial and domestic lighting, heating and static switching.
Feature: Voltage - Off State:500V Voltage - Gate Trigger (Vgt) (Max):1.5V Current - Gate Trigger (Igt) (Max):15mA Voltage - On State (Vtm) (Max):1.75V Current - On State (It (AV)) (Max):7.5A Current - On State (It (RMS)) (Max):12A Current - Hold (Ih) (Max):20mA Current - Off State (Max):500A Current - Non Rep. Surge 50, 60Hz (Itsm):120A, 132A
