Breadboard MB102 Dual Power Supply Module Shield 3.3V 5V For Arduino Raspberry Pi Board Solderless

Detail Breadboard MB102 Dual Power Supply Module Shield 3.3V 5V For Arduino Raspberry Pi Board Solderless

Yuk buruan diorder !!!

Harga Termasuk :
1 x Power supply breadboard MB102
(Hanya power supply tanpa breadboard)

Power supply yang cocok dengan breadboard MB-102. Menghasilkan tegangan 3,3V dan 5V maksimal 700mA. Bisa dipake di breadboard MB-102 830 titik atau yang 400 titik. Ini berguna banget untuk supply external bagi device yang perlu tegangan stabil

Power supply ini sangat cocok dipakai pada breadboard MB102 solderless. Tinggal tancap di breadboard dan bisa memilih tegangan 3.3V maupun 5V. Input power bisa melalui adaptor external maupun melalui port USB (max 9V DC).

Features:
Brand new & high quality
Breadboard power supply module, compatible with 5 V, 3.3 V

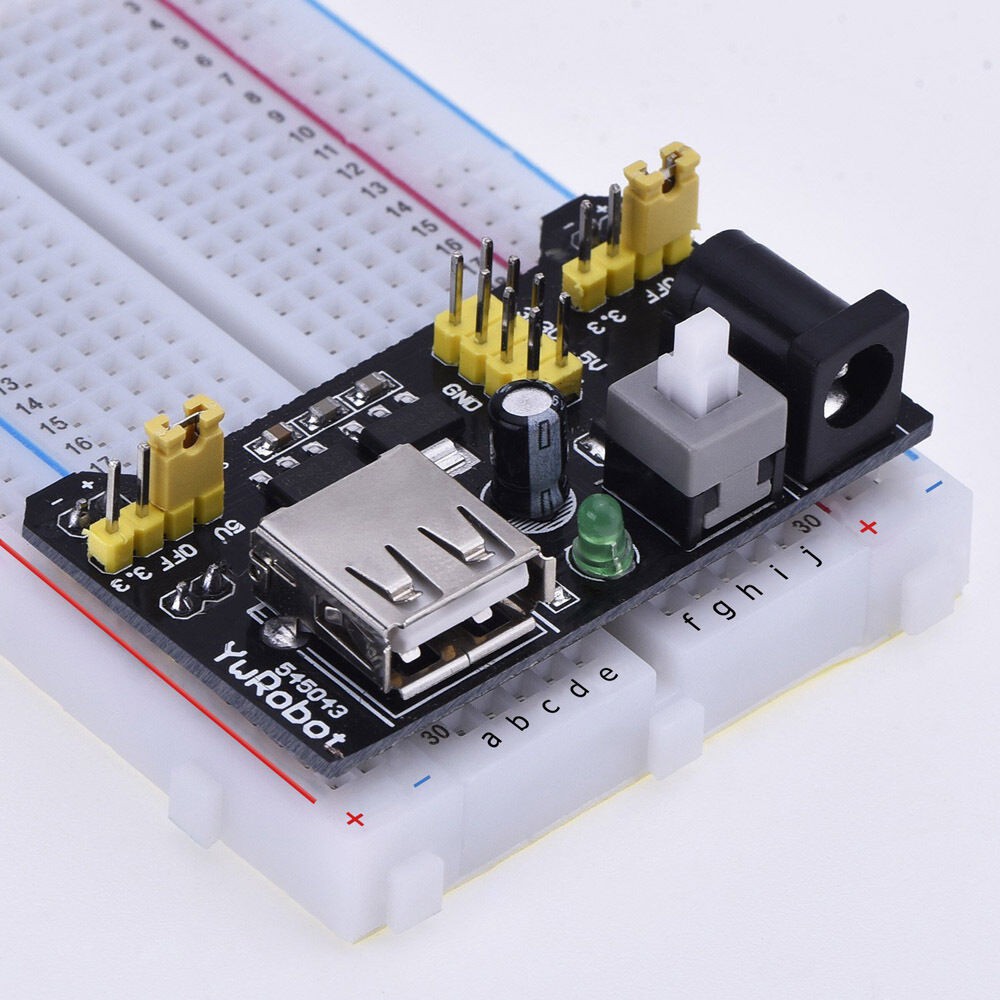

Apply to MB102 breadboard
Input voltage: 6.5-12 V (DC) or USB power supply
Output voltage: 3.3V/5V can switch over
Maximum output current: 700 ma
Fluctuation two road independent control, can switch over to 0 V, 3.3 V, 5 V
On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use.
Please notice: this item only a Power Supply Module, Breadboard is not included

Spesifikasi:
> Dilengkapi regulator LDO AMS1117-3.3 dan AMS1117-5
> Switch On / Off
> Lampu indikator LED
> Input Voltage: 6.5V to 9V (DC)
> Output Voltage: 3.3 V dan 5 V
> Output Current Maksimum: 700 mA

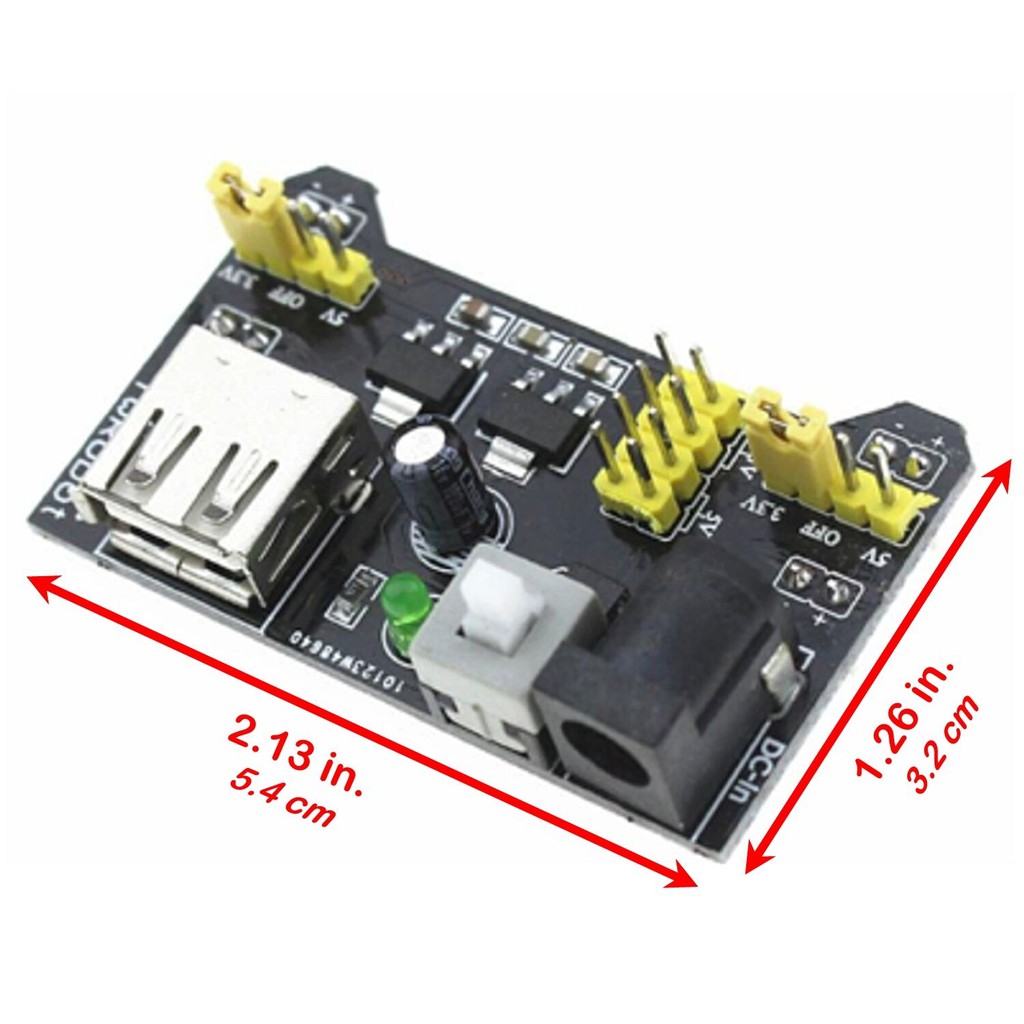

> Ukuran: 5.3 cm 3.5 cm

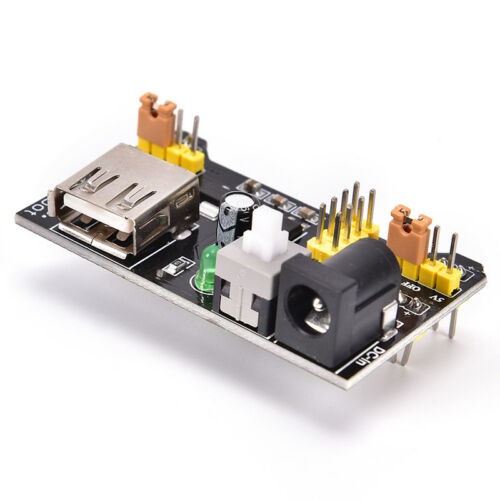

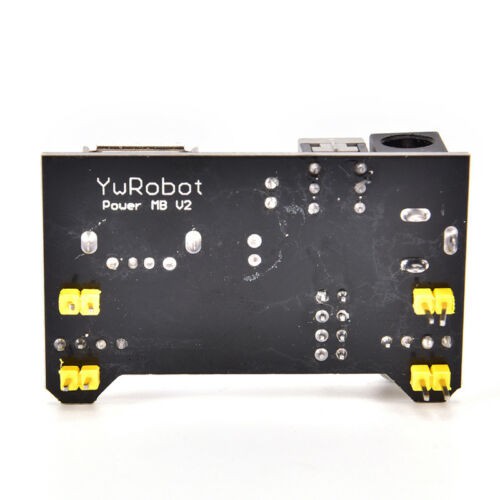

Gambar produk
