BRACKET TV LCD MONITOR 22"-35" NORTH BAYOU NB H100 TILT SWIVEL ROTATE

Detail BRACKET TV LCD MONITOR 22"-35" NORTH BAYOU NB H100 TILT SWIVEL ROTATE

BRACKET TV LCD MONITOR 22"-35" NORTH BAYOU NB F100A TILT SWIVEL ROTATE

- Mendukung 1 panel layar
- Cocok untuk LED LCD TV 22" - 35" (tergantung ukuran Vesa)
- Mendukung VESA hingga 75×75 - 100X100mm
- Penyesuaian kemiringan layar + 8 ° hingga - 55 °, putar 180 °, Rotasi Layar 360 °, Angkat 340mm
- Bobot maksimal lengan 3-12Kg (Pastikan TV/monitor tidak melebihi bobot maksimal!)
- Jarak lengan dapat diperpanjang maksimum 530mm
- Tersedia Baut Pengaman
- Mudah Pemasangan
- Terbuat dari Material yang kokoh

SPECIFICATION
Brand : NORTH BAYOU
Model : F100A
Support Monitor/TV : 1
Fit Size : 22" - 35"
VESA Support (mm) : 75x75 - 100x100
Tilt : + 8° / - 55°
Swivel : 180°
Rotate : 360°
Upright lift (mm) : 260
Max Arm Extension (mm) : 530
Max Load (Kg) : 3 - 12
Desk Clamp (mm) : 10 - 90
Color : Black
Mounting Hardware Included : Yes
1pcs Package
Dimension(cm) : 44 x 22 x 13
Gross Weight (Kg) : 4.8
1Box Package
Dimension (cm) : 53 x 45.5 x 23
Gross Weight : 23
Quantity (Pcs): 4
*Note: Larger screen panels can be used with this bracket as long as the VESA bore is suitable and the weight does not exceed the maximum weight

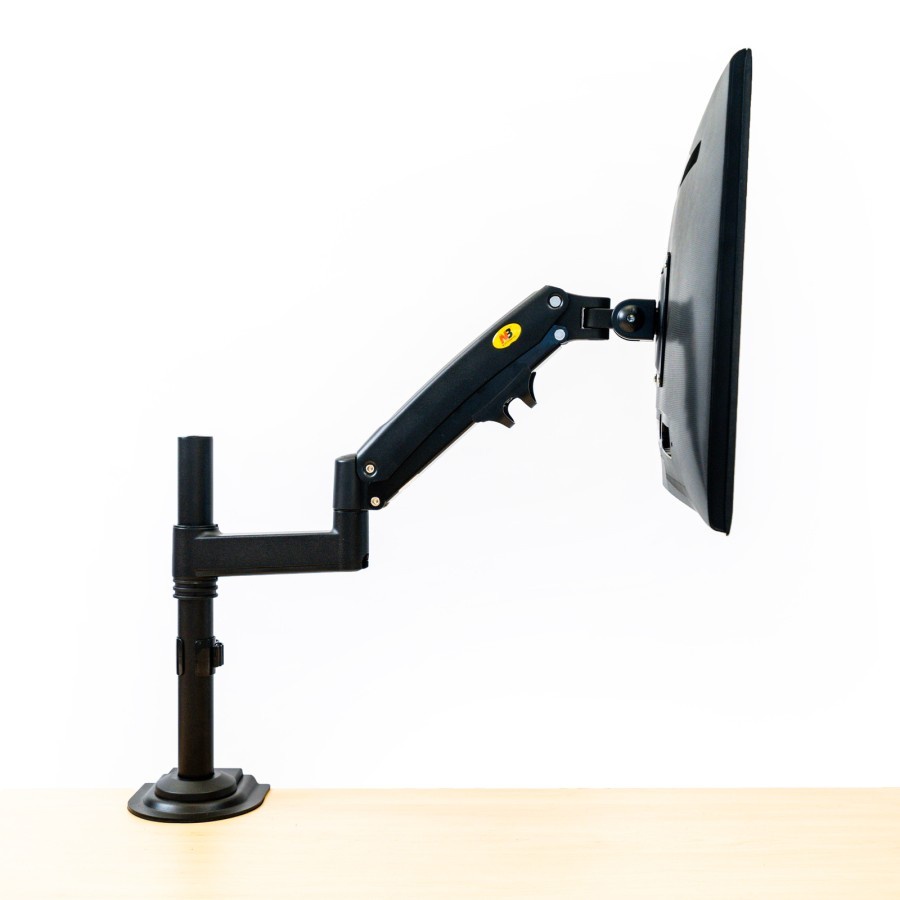

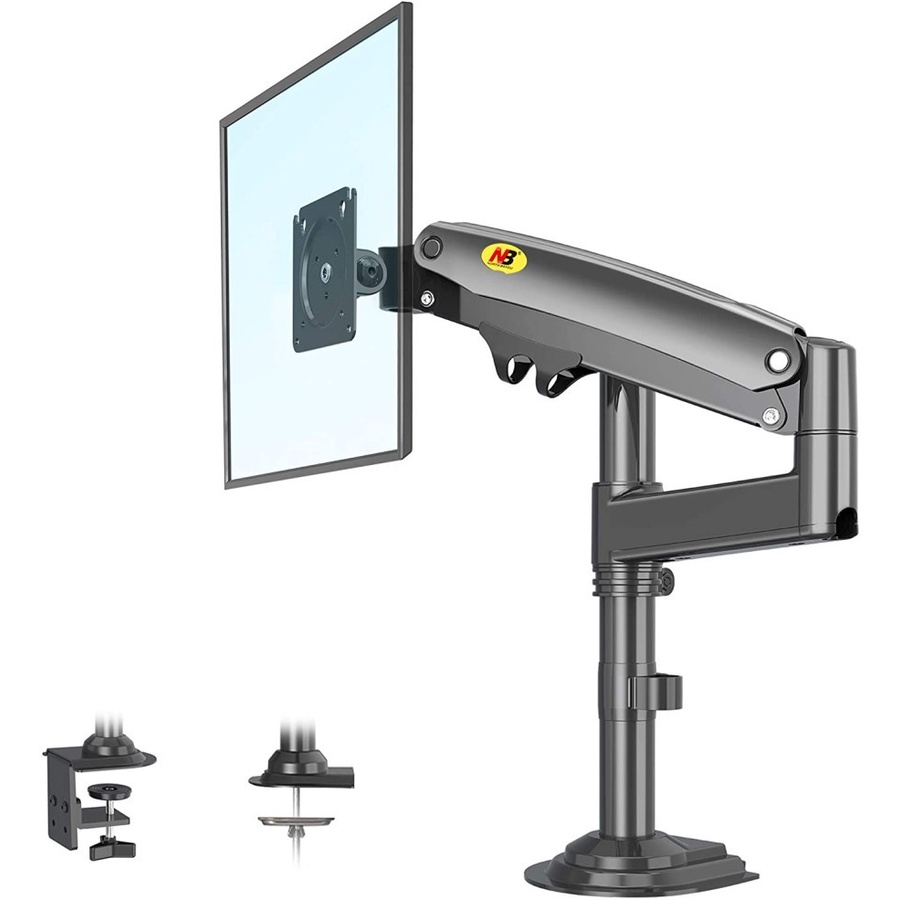

Gambar produk
