Bracket NB H80 17 - 34 Max Load 2 - 9 Kg Vesa 75x75 -100x100 mm

Detail Bracket NB H80 17 - 34 Max Load 2 - 9 Kg Vesa 75x75 -100x100 mm

bracket/breket led lcd tv monitor gas spring nb H80

Descriptions:
- Full motions flexibility with all directional effortless adjustment without tools used.
- Durable gas-strut cylinder and conical joints constructed for smooth and stable operation.
- Ecological design concept relax your life.
- Integrated cable management conceals inside provide clean, neat and clutter-free appearance.
- Compact and retractable design increase your work space.
- It can be installed at the table edge or grommet installation anywhere of your worktable.
- The monitor arm is constructed in aluminum alloy material with plastic appearance.

Specifications:
Color: Black
Material: Alu Alloy
Fits: Most 17 to 27 inch screen flat panel TV
(Note: Supported screen size is provided as a reference only)
VESA Compliance: 75*75 / 100*100mm

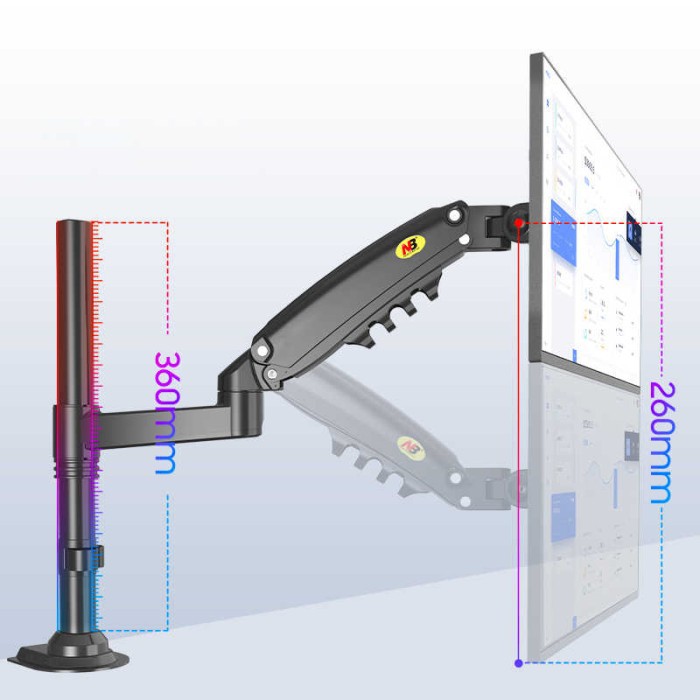

Upright Lift Distance: 260mm
Maximum Extension: 550mm
Rotation: 360°
Swivel: ±90°

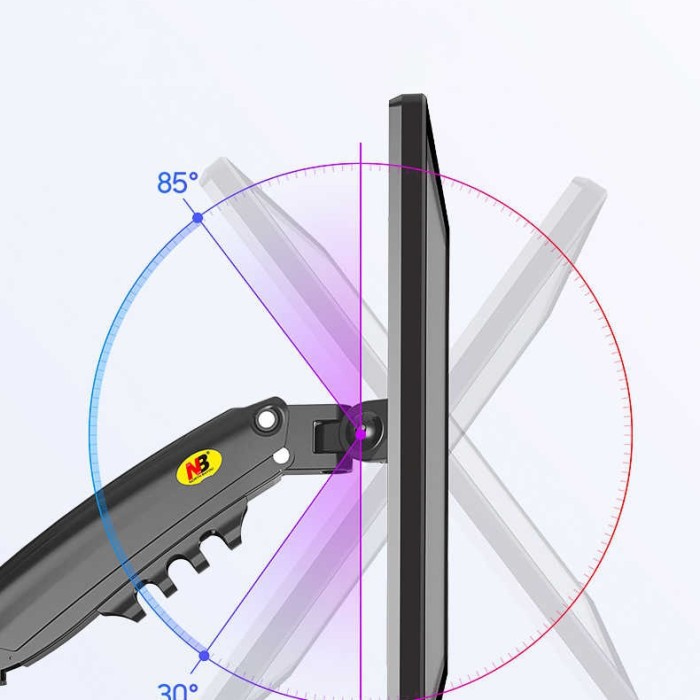

Tilt Angle: +85° to -30°
Load Capacity: 2kg to 9kg
VESA: When we refer to VESA sizes we are referring to the standard used to measure the hole pattern on the back of your Display. If you do know your VESA pattern you can simply measure the distance side to side and top to bottom on your display. The distance in millimeters is the Vesa Hole Pattern.
