Bracket monitor tv 17-27 inch North Bayou F150 Original

Detail Bracket monitor tv 17-27 inch North Bayou F150 Original

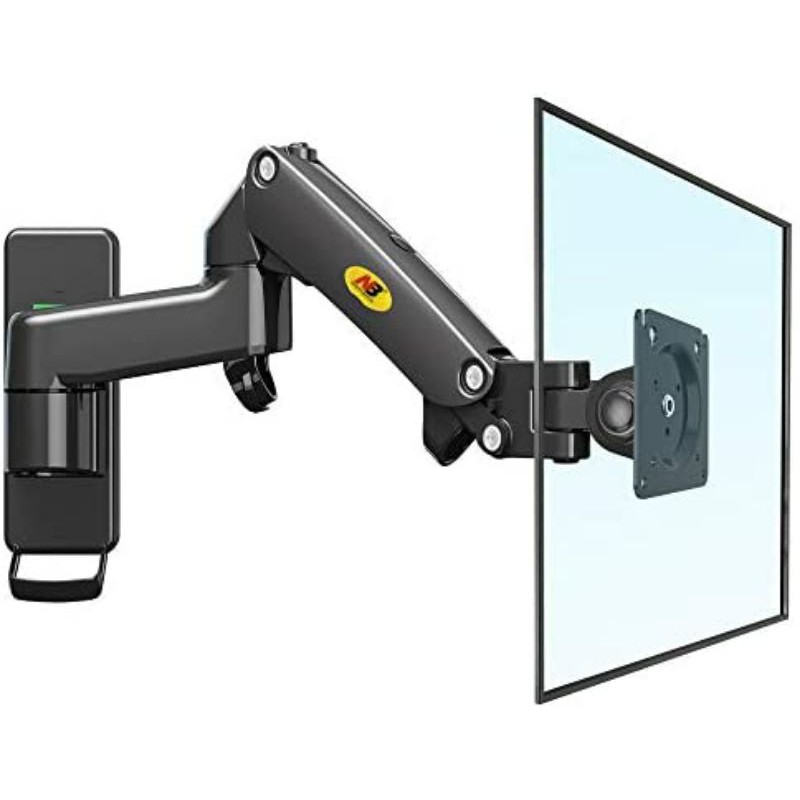

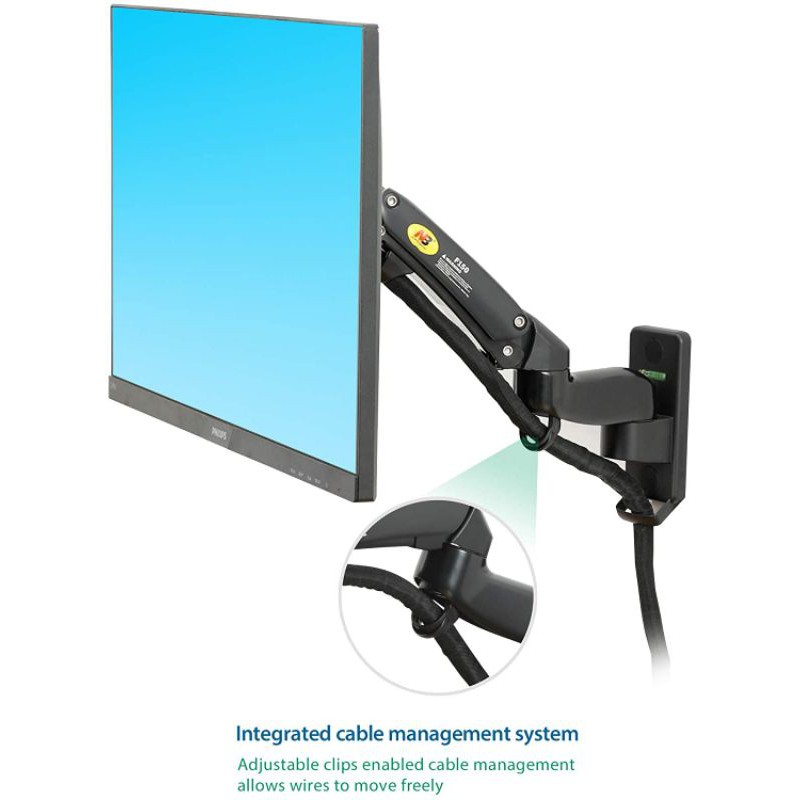

NB F150 is a fully articulating ergomomics wall installation monitor mount . It is designed and built with ecological interface concept to enhence your viewing and gaming experience. Built in with durable Gas-strut to enable to move your monitor any direction and height at your wish. With added spring pivot joint designed offer effortless tilting position. What's more, screen offer 360° rotation for different function usages. With its flexibility design in retractable and extendable arms provide space saving in a limited area. This full motion mount covers almost every viewing point in your rooms where-ever you installed for entertainment, video conference, gaming or real time excercising with your idol. F150 Product is a Double-arm extension comes with micro polish and chromed finished aluminum alloy with well integrated cable management for best aesthetics looked and strength

B North Bayou TV Monitor Wall Mount Bracket Full Motion Articulating Swivel for 17-27" Monitors (Load Capacity from 4.4 to 15.4lbs) Double Extension F150-B

Ergonomics wall mount for 17- 27 inch monitor, designed to hold a load of 4.4lbs to 15.4lbs(2-7KG), Simple installation and effortless operation, comes with detailed instructions and all needed hardware
Fits VESA 75*75MM or 100*100MM, While if your VESA hole is inside a recession area, Pls noted that the size of the whole VESA Plate of this product is 118*118mm, Extra Longer Screw & Screw spacer may be needed in order to make it fit well.

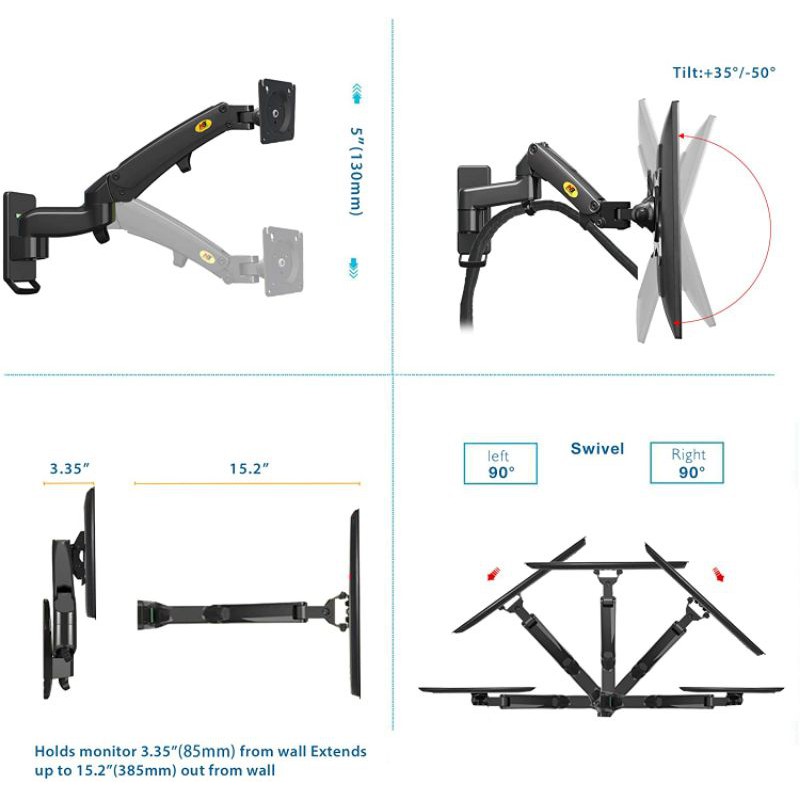

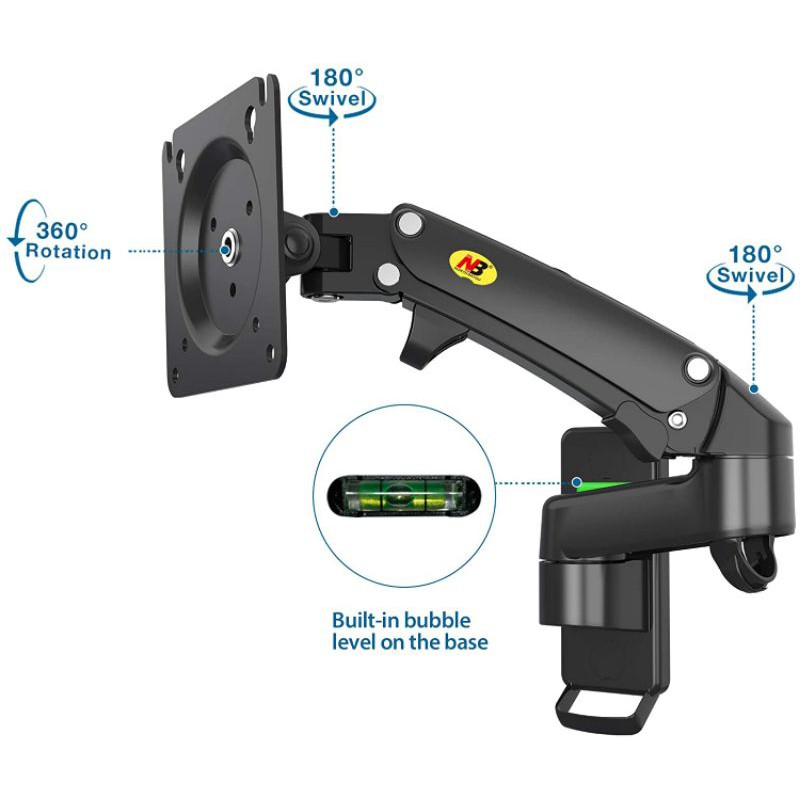

Tilt angles +35° to -50° Swivel angles ±90°, Screen Rotation 360° Wide range of height adjustment for different need :Monitor Lift range 5''(130mm)
Min distance from wall only 3.4''(85mm) and max extension to 15.2''(385mm) Enhance your viewing and gaming experience.

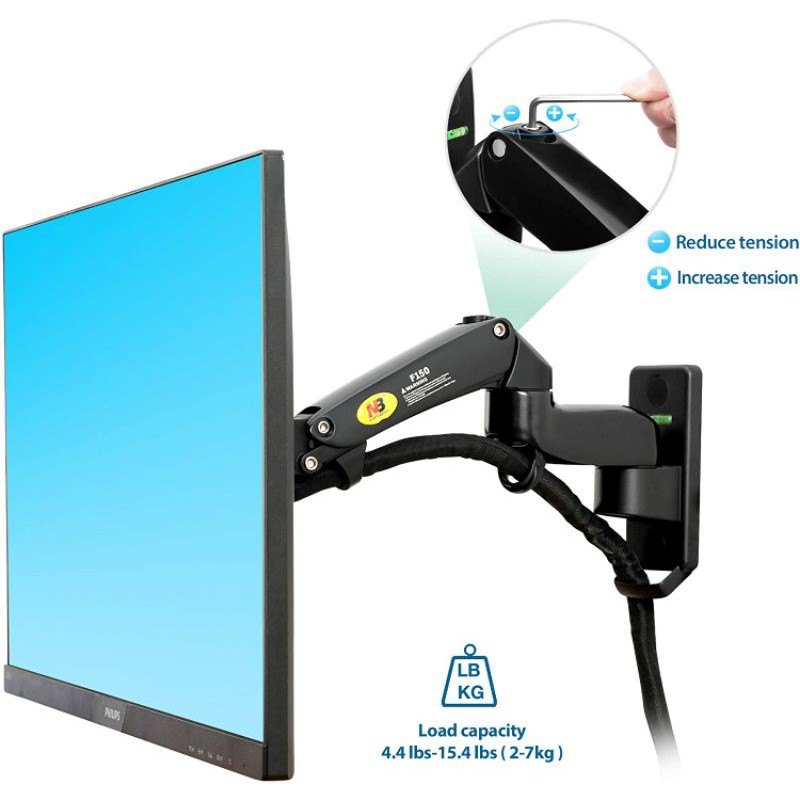

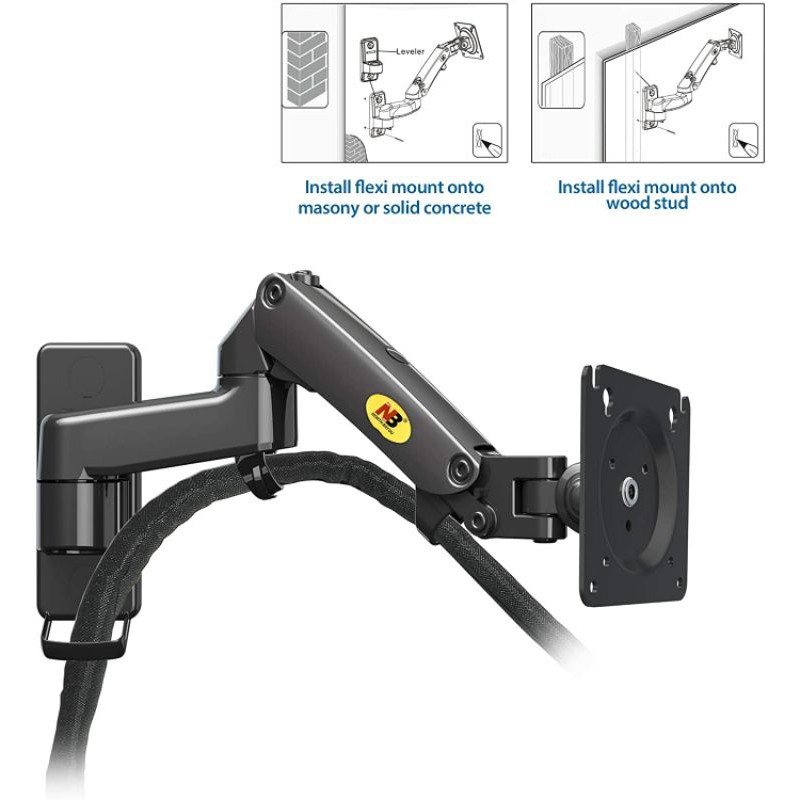

INSTALLATION GUIDE: Firstly, Install the product the Wall, Secondly, Mount your monitor to the product, After that, Push down the arm, It will be easy to adjust this tension screw accordingly.(Pls DON'T adjust the tension screw without the monitor on it )

Gambar produk
