Box SDI to Hdmi with Adaptor

Detail Box SDI to Hdmi with Adaptor

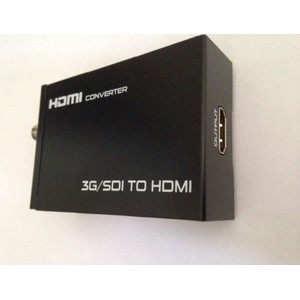

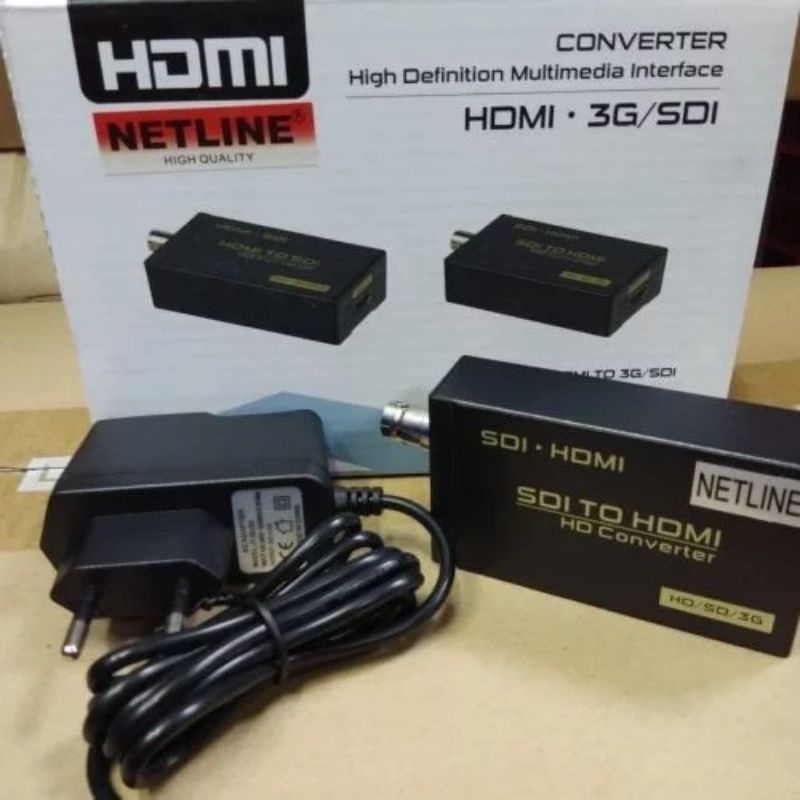

3G / SDI to HDMI CONVERTER FULL HD
Convert your Devide SDI format to HDMI signal Full HD

Feature:
Auto detect resolution of HD-SDI, SD-SDI and 3G-SDI
Plug and play;
LED Indicator light

Specification:
Signal Inputs:
SDI Format ( HD-SDI, SD-SDI and 3G-SDI )
SDI date rate: 270Mb/s, 1.485Gb/s, 2.97Gb/s
Impedance : 75 ohm
SDI input resolution :
-SD 525i, 625i;
-HD720P@24HZ, 720P@25HZ, 720P@30HZ, 720P@50HZ, 720P@60HZ,
-HD 1080i@50HZ; 1080i@60HZ;
-HD 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ,1080P@60HZ
-Recommended resolutions: 720P@50Hz/60Hz or 1080P@50Hz/60Hz
Output Video: HDMI Signal
This Converter does not support audio Output
HDMI Output Resolution:
- 720P/50Hz 720P/60Hz 1080i/50Hz 1080i/60Hz 1080P/ 24/ 25/ 30 /50 /60HZ
Operating Temperature: 0 - 59 C
Operating Humidity: 10% to 85% RH (no condensation)
Power Supply : DC Adapter
Power consumption (Max) : 5W
Dimension : 85 x 63 x 27 mm
