The HDMI to 3G SDI Converter allows HDMI signals to be shown on SDI displays while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high definition HDMI signal with audio to 3G SDI for long distance transmission and display your work on 3G SDI display.
Features:
- Support HDMI timing : 480i, 576i, 720p 50/60, 1080p 24/25/30, 1080i 50/60, 1080p 50/60
- Operation at 2.970 Gbps, 2.970/1.001Gbps, 1.485Gbps, 1485/1.001Gbps and 270Mbps
- Integrated Audio embedded up to 8CH PCM 48KHz for HDMI
- Auto video mode detection ( 3G/SD/HD )
- Connect with other units ( SDI to HDMI ) to extend your signal over long distances.
- Supports signal transmission distances up to 300M for SD signals, 200M for HD signals and 100M for 3G signals
- Note : Cable tested with Belden 1694A. Operating distances may vary if used with another type of cable.
Specifications:
- SDI Transmission Rates : 2.970 Gbps, 2.970/1.001Gbps, 1.485Gbps, 1485/1.001Gbps and 270Mbps
- Frequency Bandwith : 225MHz / link ( HDMI 1.3 )
- In / Output Support Resolution : 480i, 576i, 720p 50/60, 1080p 24/25/30, 1080i 50/60, 1080p 50/60
- Input Port : 1 x HDMI
- Output Port : 1 x BNC ( SDI / HD-SDI / 3G-SDI )
- Power Supply : 5V DC 1A
- Dimension : 100mm x 65mm x 25mm

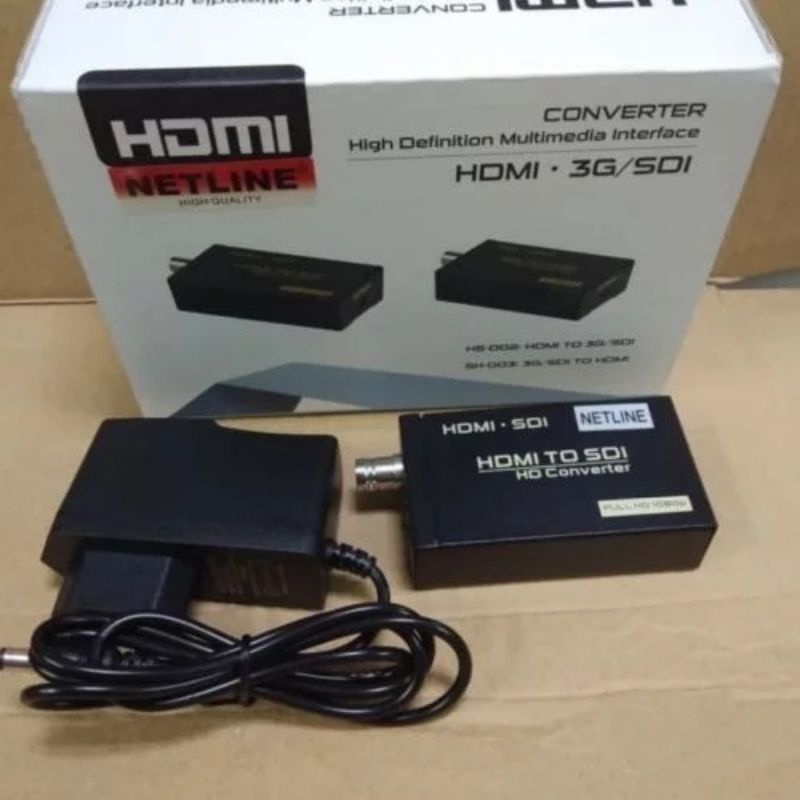

Package Content :
1x HDMI to SDI Converter
1x Power Supply Adaptor 5V 1A
1x User Manual
