BMS 5S 20A 18V 21V Battery Charging Protection Board 5S BMS Module

Detail BMS 5S 20A 18V 21V Battery Charging Protection Board 5S BMS Module

Hi #RekanEasyWare ...
EasyWare Part#: EP000449

Catatan:
- Foto asli stok EasyWare Electronics.
- Harga untuk 1pcs.

Features :
- 5S 18V 20A PCM PCB Li-ion Lithium Battery Protection Board
- Mainly used for electric power tools
- It uses special IC for 5S lithium batteries as processor to detect real-time voltage, charge and discharge current and ambient temperature of each battery
- Stable various protective functions for charging and discharging, such as overcharge protection, over-discharge protection and short circuit protection
- Low power consumption,the working current is about 25uA and quiescent current is about 6uA
- Choosing the correct protection board and applying it appropriately is vital to the longevity your batteries

Spesifications :
- Charge Voltage:19/21V
- Single Cell Charge Voltage:3.8/4.25V
- Continuous Discharge Current:8-20A
- Overcharge Single Cell Detection Voltage:3.85-4.25V
- Overcharge Protection Delay:1S
- Overcharge Single Cell Recovery Voltage:3.75-4.13V
- Overcharge Protection Release Delay:1mS
- Over-discharge Single Cell Detection Voltage:2-2.8V
- Over-discharge Protection Delay:1S
- Over-discharge Single Cell Recovery Voltage:2.5-3.0V
- Over-discharge Protection Release Delay:100±20mS
- Over-current Detection Voltage:0.1-0.4V
- Over-current Detection Current:30±5A
- Over-current Detection Delay:1S
- Over-current Protection Recovery State:Auto
- Short Circuit Protection:Support
- Short Circuit Detection Delay:250uS
- Short Circuit Release Delay:1S
- Short Circuit Detection Voltage:0.8V
- Short Circuit Protection Recovery State:Auto after Disconnect Load
- Protection Temperature:70±5℃
- Recovery Temperature:55±5℃

Package :
- 1x 5S 18V 21V 20A Battery Charging Protection Board

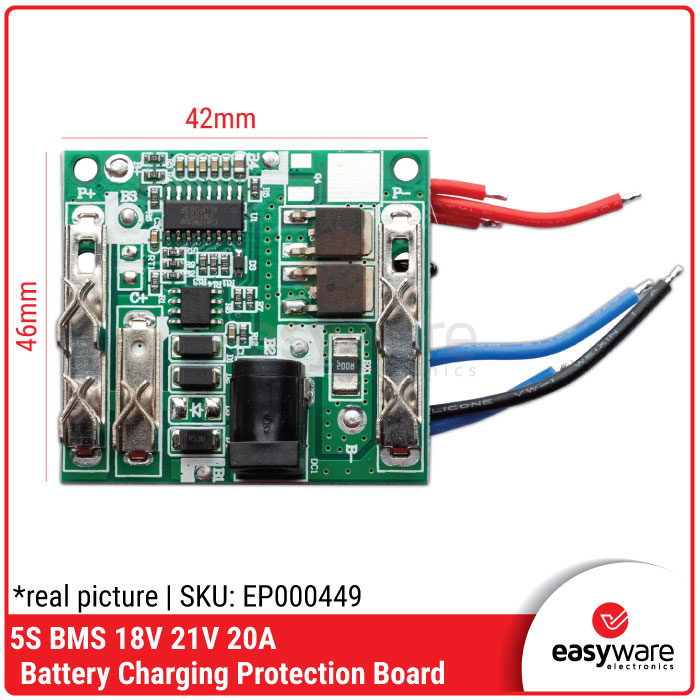

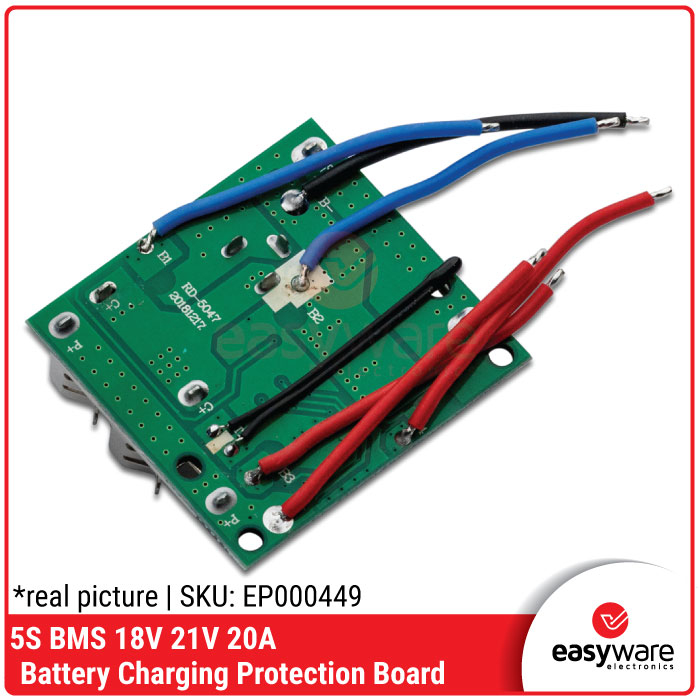

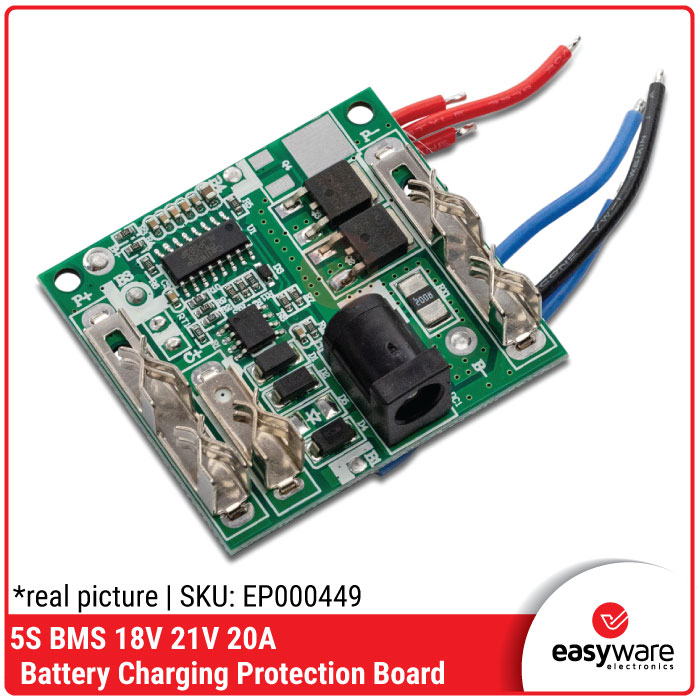

Gambar produk
