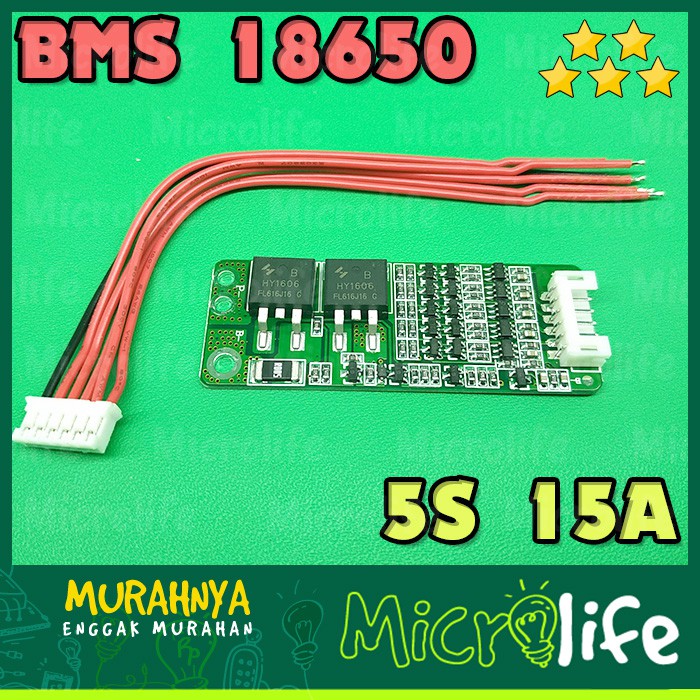

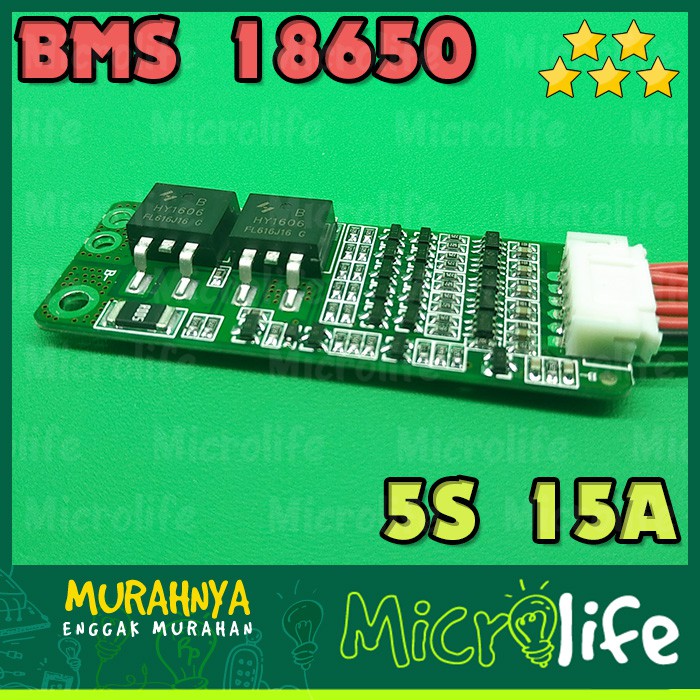

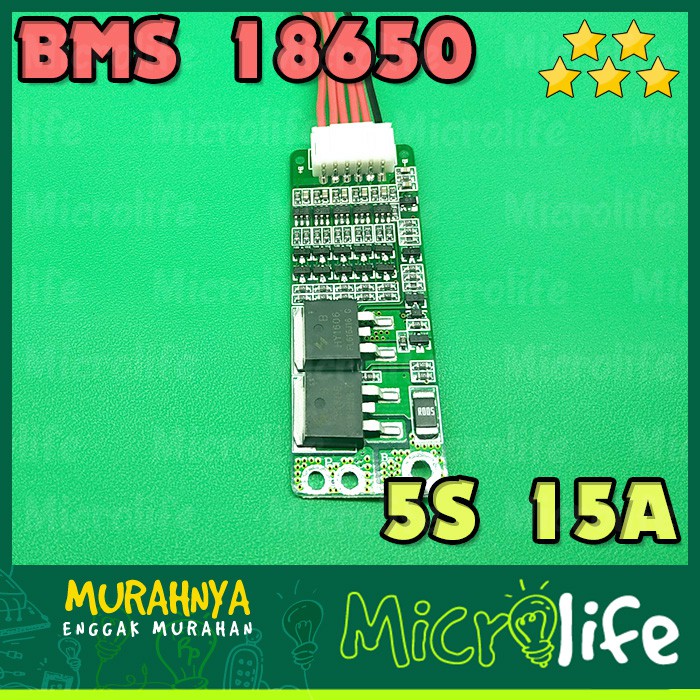

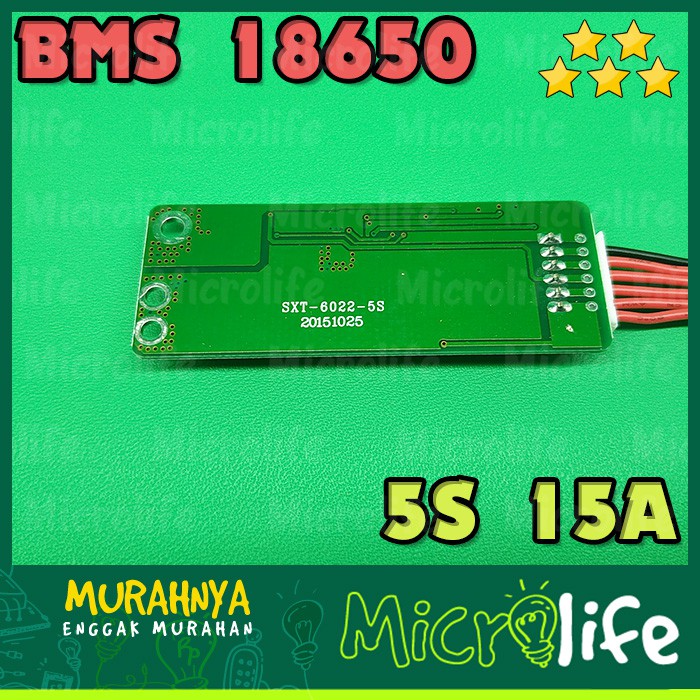

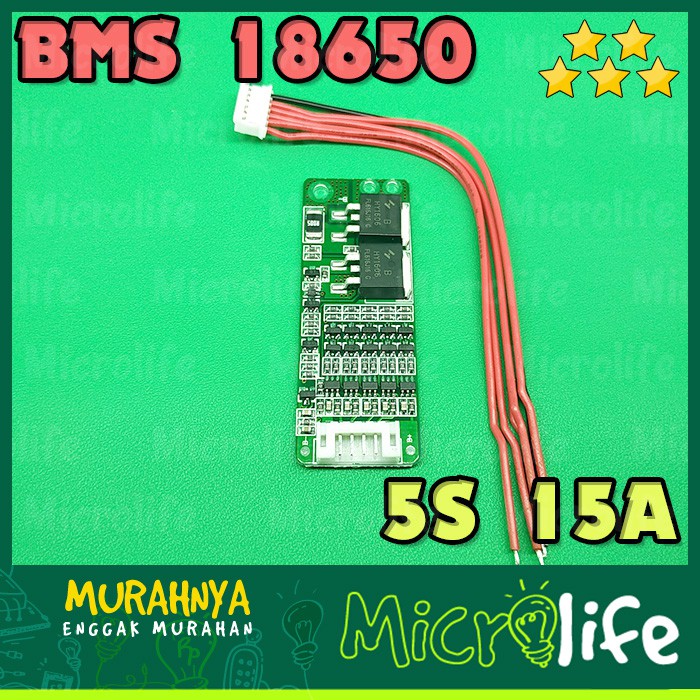

BMS 5S 15A Lithium Ion 18650 PCM Battery Management Protection Board

Specification:
++ Name: protection board
++ Size: approx. 60 x 23mm
++ Charging voltage: 21 V
++ Charge MOS pressure value: 35 V
++ Discharge MOS pressure value: 35 V
++ Charging current: 56 A
++ Continuous discharge current: 15 A
++ Over current protection: 50/55/60 A
++ Over current protection delay: 20/25/30mS
++ Single section since the power consumption: 30uA
++ Single section between the power consumption: 3uA
++ Single section over charge detection voltage: 4.18- /4.22V
++ Over charge recovery voltage 4.05- 4.15 V
++ Over charge detection delay: 0.5/1.0/2.0S
++ Single section over discharge detection voltage: 2.75-2.85 V
++ Over discharge recovery voltage: 2.90-3.20 V
++ Over discharge detection delay: 0.5-2.0S
++ Short / over / over current protection recovery short circuit / over discharge / over current protection after removal of load auto recovery
++ Short circuit protection delay 200/500/600uS
++ The normal working state of B- to P- resistance: 5mΩ
++ Continuous 15A current maximum temperature rise: 25 ℃
++ Working environment (humidity) relative humidity: ≥98% (long-term stability under the humidity)
++ Working environment (temperature) -30 ~ 80℃(in the lower temperature range of long-term stability)

Isi Paket :
1x BMS 5S 15A Lithium Ion 18650 PCM Battery Management Protection Board
1 Set Kabel
