Detail BMS 4S Battery Protection Charging Board 4S 18650 3.7V 4.2V 20A

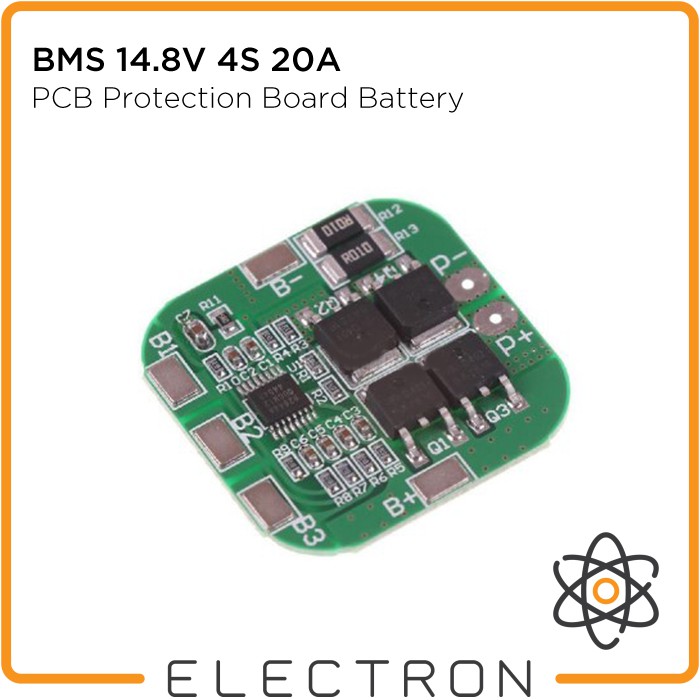

BMS 14.8V 4S 20A

Spesifikasi:
4S LI-ION BMS
Over Charge Voltage:4.25-4.35v0.05v
Over Discharge Voltage: 2.3-3.0v0.05v
Max working current:10A
Max Peak current:20A
Working Temperature:-40---+50
Storage Temperature:-40-- +80
Small current:6uA
Life cycle:50000hours
Resistance:45m
Short cut Protection:Protectable ,change for repair
Size:35*35*3.0mm


BMS solder instruction:

B+ connected battery positive;

B1 the connect point between battery 1 and battery 2

B2 connect the point between battery2 and battery 3

B3 Connect the point between battery 3 and battery 4

B- connect to battery negative end

P- + connection charge / discharge positive;

P- connection charge / discharge negative
