BMS 4S 12V 100A 3.2V LiFePo4 with balance baterai proteksi bateray pack

Detail BMS 4S 12V 100A 3.2V LiFePo4 with balance baterai proteksi bateray pack

modul BMS 4S 12V 100A 3.2V Lipo LiFePo4 baterai proteksi bateray pack

Model Number:Lithium LiFePo4 Battery
Dissipation Power:Other; Operating Temperature:Other; Type:Voltage Regulator
Supply Voltage:12V; Application:For eBike; Package:other
Name: 4 string 12V lithium battery power protection board;
Specifications:
Heat sink size: 90 * 35 * 10mm
Cable length: 400mm
Electrical parameters: As shown in following table
Features:
With a balanced, same port 100A discharge.
Protection board with overcharge protection, over discharge protection, over current protection, short circuit protection, temperature protection.
Attention when connecting:
When we connect BMS with cells or disassemble BMS from battery pack, the following order and regulations must be complied with to avoid damage of components of BMS and problems of not protecting of cells.
In order to achieve the best performance of BMS and to run the longest distance, all the battery must be matched well (Each battery voltage 0.05V, IR15 m,capacity30mAh) to make sure the better consistency of the battery.
Cell must be connected in parallel first, after then connected in series

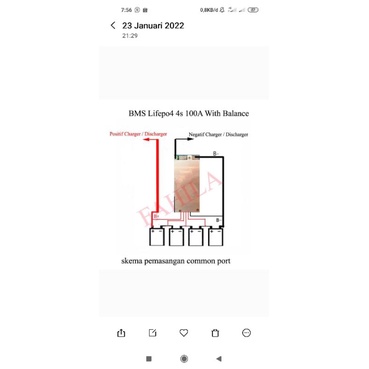

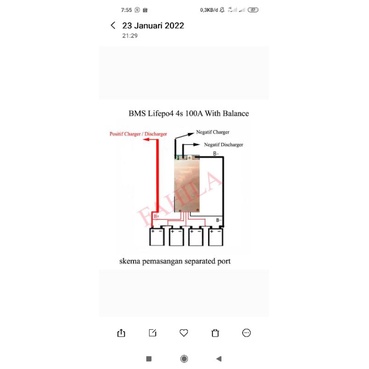

Order of connection:
Step1: Connect charging /discharging wire , battery pack negative wire
Step2:After confirm the wires are connected OK, plug the connector cable in the BMS
DO NOT plug CONNECTOR CABLE in the BMS before connect wire!!
Attention, ESD protection during work.

Isi Paket:
1x Modul BMS
1x Set Kabel

Gambar produk
