BMS 3S 20A Li-ion Lithium Battery 18650 Charger Protection Board 12V
Deskripsi singkat
Handphone & Aksesoris > Powerbank & Baterai > Powerbank & Baterai Lainnya > BMS 3S 20A Li-ion Lithium Battery 18650 Charger Protection Board 12V
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Detail BMS 3S 20A Li-ion Lithium Battery 18650 Charger Protection Board 12V
Harga 1pcsModule name: 3S 12.6V Li-ion Lithium Battery 18650 Charger Protection PCB Board
Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)

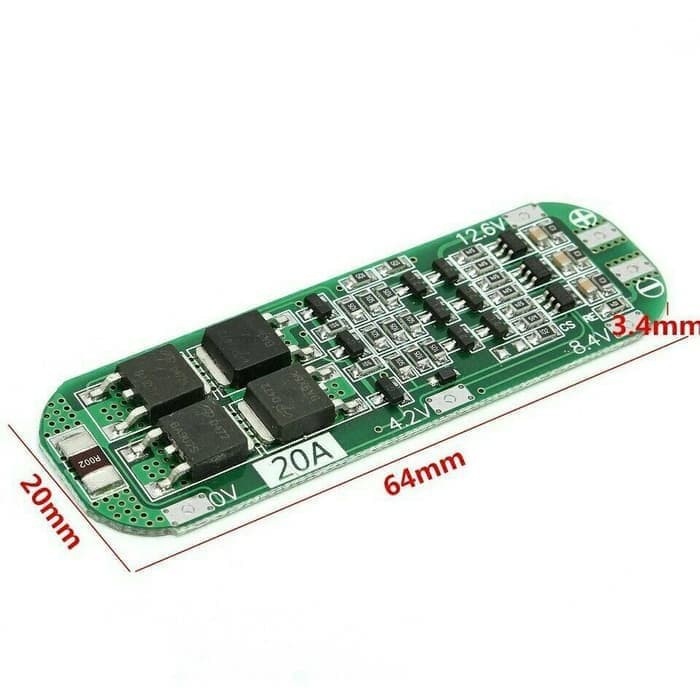

Product Size: 64mmx20mmx3.4mm
Material:Metal
Charging voltage: 12.6V
Maximum output current: 20A
Maximum output power / charging power: 252W
Precautions:

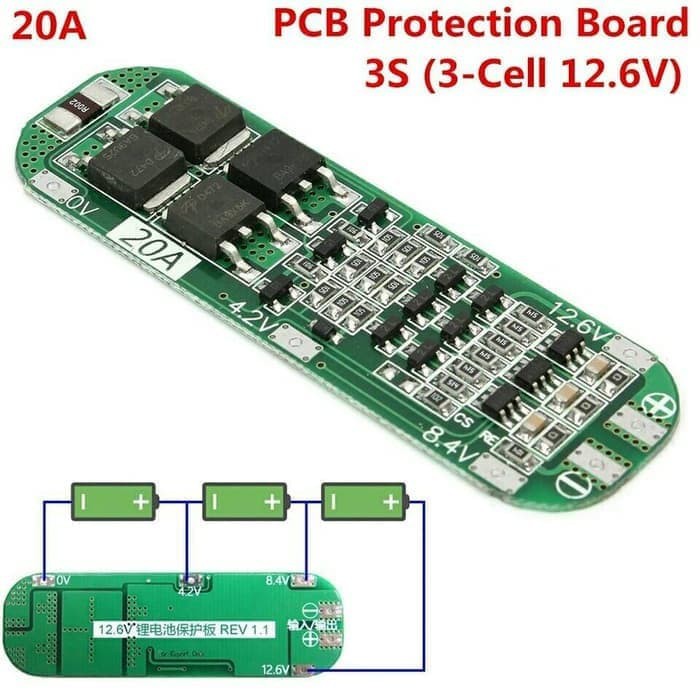

1.Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip.
2.After connection,it need to first charge activation, then will have the output.
***UNTUK DIPERHATIKAN :
- jangan mencampur baterai yang BEDA MERK, BEDA KAPASITAS dan BEDA KONDISI (baterai baru dan bekas di dalam 1 BMS)
- jika menggunakan BATERAI BEKAS, kemungkinan bisa mengakibatkan BMS malfungsi.
- disarankan menggunakan baterai yang berkualitas (pengalaman seller).
Package Included:
1 x PCB Protection Board
Gambar produk
