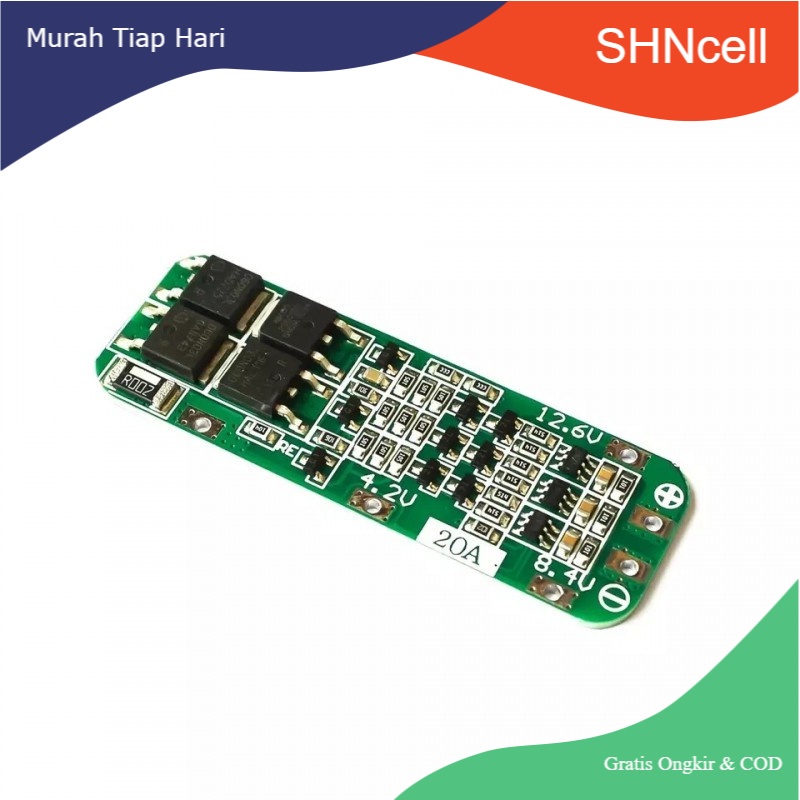

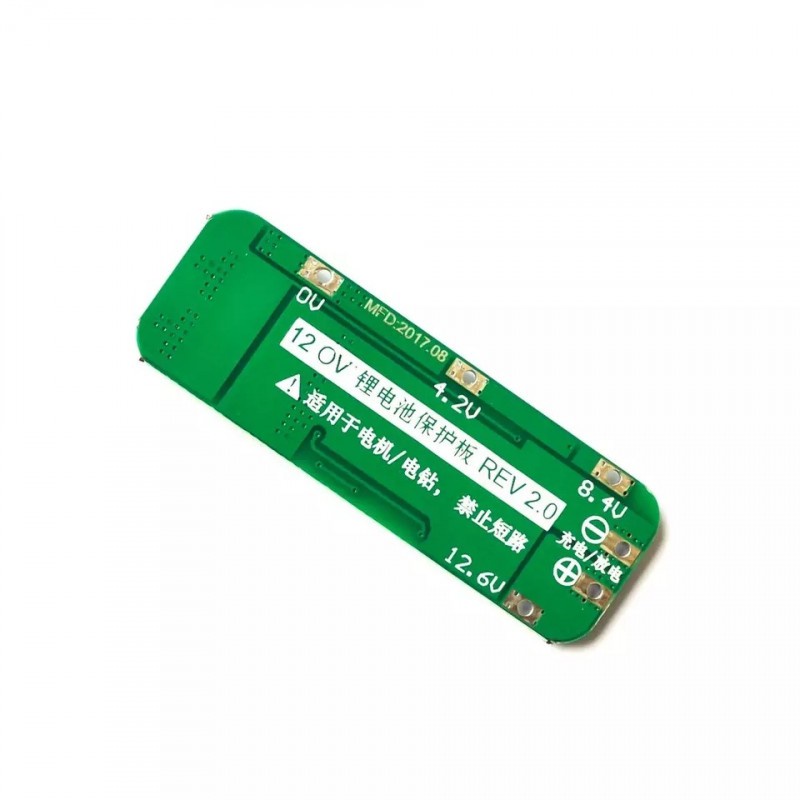

Detail BMS 3S 12V 20A Papan Modul PCB Pelindung Charger Baterai Lithium 18650
Features: Module name: 3S 12.6V Li-ion Lithium Battery 18650 Charger Protection PCB Board Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries) Product Size: 64mmx20mmx3.4mm Material:Metal Charging voltage: 12.6V Maximum output current: 20A Maximum output power / charging power: 252W

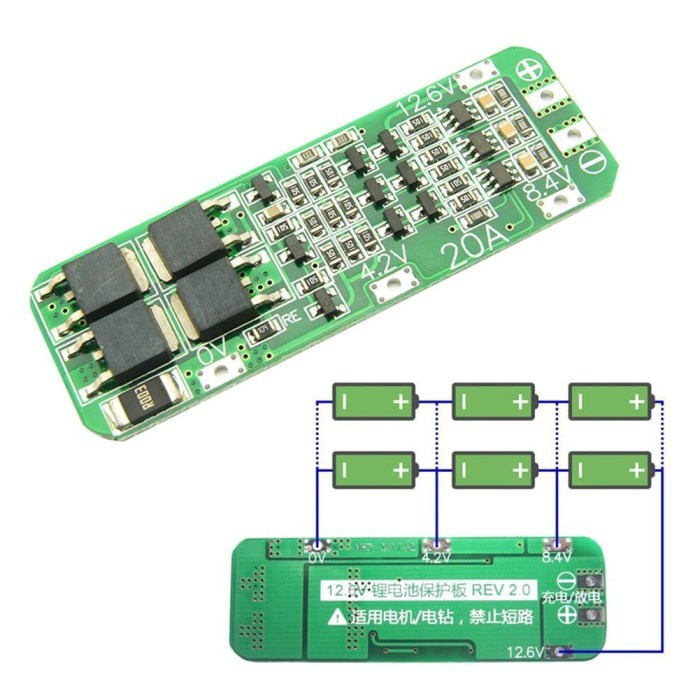

Precautions: -Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip. -After connection,it need to first charge activation, then will have the output.
Attention: Do not mix the good battery and poor battery to use. The internal resistance of 3 battery capacity are closer will be better. Please buyers know the professional knowledge of this module before buying
Gambar produk
