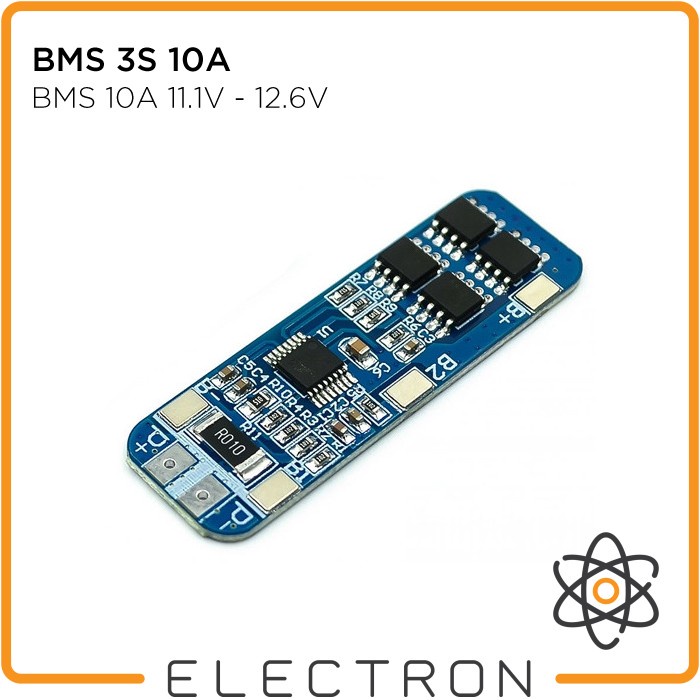

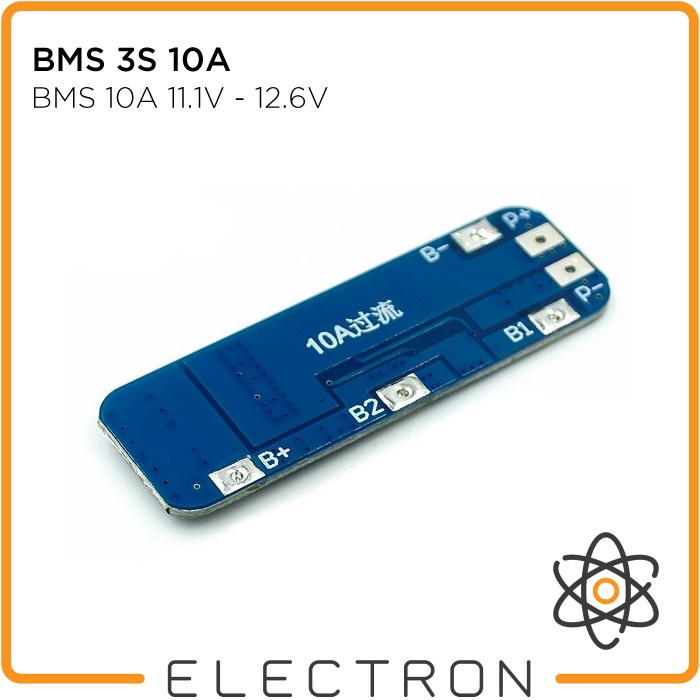

Detail BMS 3S 10A Battery 18650 Management System Charger Module Board 12V

BMS 3S 10A
-
Modul BMS untuk melindungi baterai dari overcharge, overdischarge, short-circuit, dll.

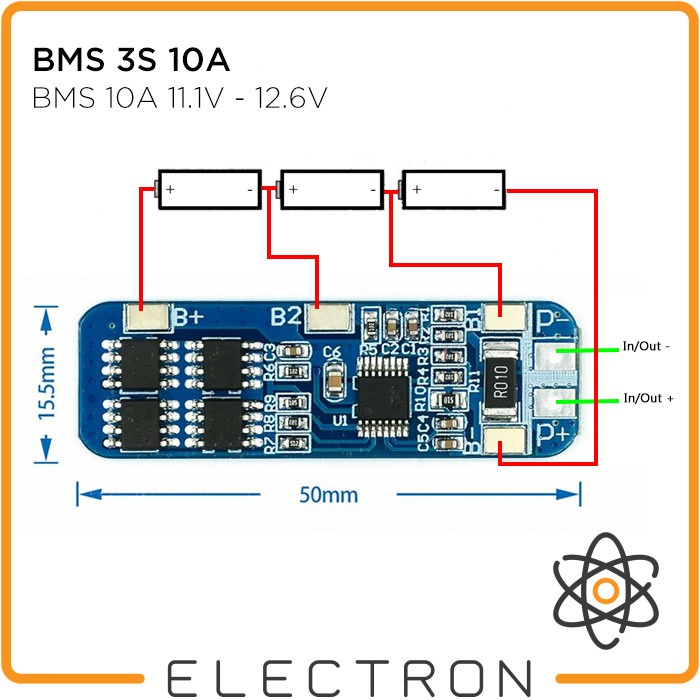

Rangkaian seri 3 baterai sehingga output menjadi 11.1V - 12.6V

Cocok untuk baterai:

- 18650 Li-ion
- Li-Po

Proteksi:

- Overcharge
- Over discharge
- Over current
- Short circuit

# Spesifikasi

Model: HX-3S-01
Overcharge voltage range: 4.25-4.35v±0.05v
Size: 50x16x1.0mm
Over discharge voltage range: 2.3-3.0v±0.05v
Working temperature: -40 -- +50℃
Storage conditions: -40-- +80℃
Quiescent current: less than 6uA
Effective life: more than 30000 hours
Internal resistance: less than 60mΩ.
