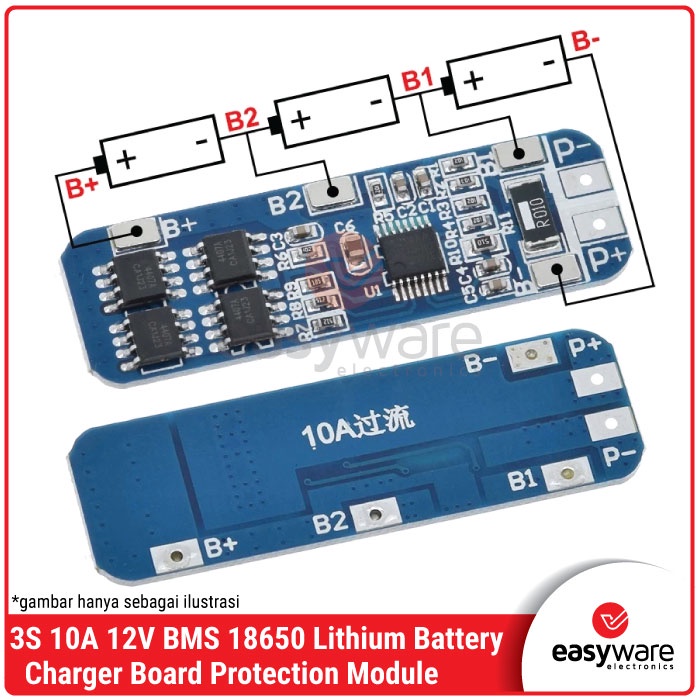

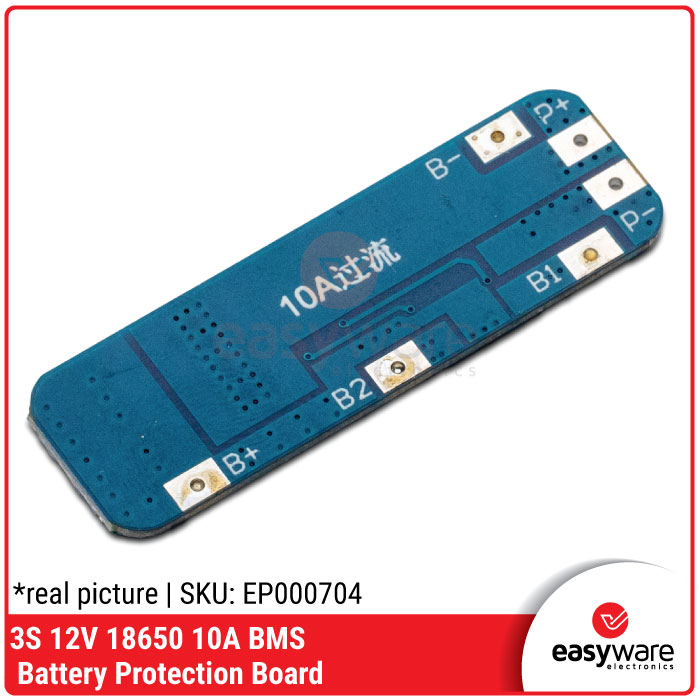

BMS 3S 10A 12V 18650 Lithium Battery Charger Board Protection Module

Detail BMS 3S 10A 12V 18650 Lithium Battery Charger Board Protection Module

Hi #RekanEasyWare ...
EasyWare Part#: EP000704

Features :
- Operating current : 6 – 8A
- Current limit : 10 – 13A
- Storage condition : -40 ~ +80 ℃
- Resting current: less than 30uA
- Effective lifetime: over 30,000 hours
- Internal resistance: less than 100mΩ
- Short-circuit protection: protection
- Self-recovery delay

Spesifications :
- Battery: 3 Cell
- Overcharge detection voltage (V): 4.25 ± 0.025
- Over-discharge detection voltage (V): 2.50 ± 0.08
- Over current Protection (A): 13
- Working current (A): 8
- Operating Temperature (°C): -40 ~ +50
- Size: 54x17.5x4 mm

Package :
- 1x 3S 10A 12V 18650 Lithium Battery Charger Board Protection Module

Gambar produk
