BMS 3.7V 1S 2A-3A v2
--

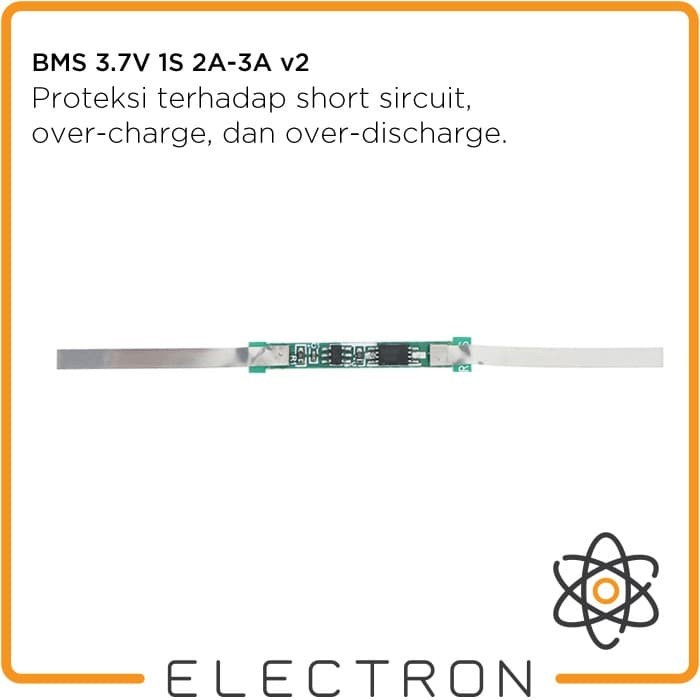

Versi 2 protection board with solder belt
--
Battery Protection Board untuk 1 baterai 3.6-3.7 VDC 18650.
Dapat digunakan untuk charging & discharging baterai secara otomatis

Fitur:
- Proteksi terhadap short sircuit, over-charge, dan over-discharge.
- Mengatur charging & discharging baterai

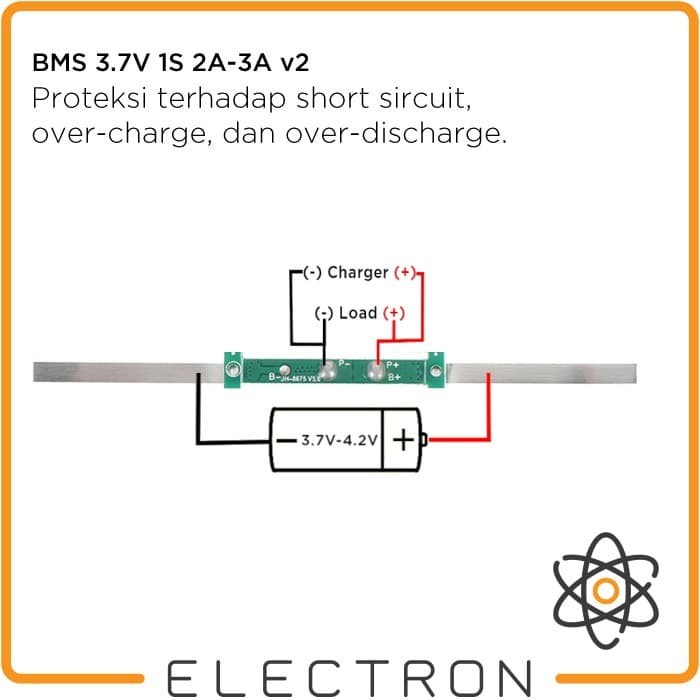

Cara penggunaan:
- B+ dihubungkan ke kutub positif (+) baterai
- B- dihubungkan ke kutub negatif (-) baterai
- P+ dihubungkan ke kutub positif (+) charger & beban
- P- dihubungkan ke kutub negatif (-) charger & beban

Spesifikasi
1.Charging Voltage:DC 4.2--5V
2.Operating current: Continuous 2A, Max 3A
3.Overcharging Detection Voltage:4.2 V+/-0.025V
4.Overcharging Detection Delay Time:150-500 ms
5.Overcharging Restore Voltage:4.0V+/-0.025V
6.Overdischarging Detection Voltage:2.75V+/-0.1V
7.Overdischarging Detection Delay Time:50-150ms
8.Overdischarging Restore Voltage:2.5V+/-0.10V
9.Overcurrent Detection Voltage:150+/-30mv
10.Overcurrent Detection Current:5+/-0.5A
11.Overcurrent Detection Delay Time:5ms-15ms
12.Overcurrent Restore Type:automatic restore
13.Short Circuit Detection State:external short circuit
14.Short Circuit Detection Delay Time:<=50us
15.Short Circuit Restore State:automatic restore
16.Internal Resistance:MOSFET <= 40m ohm
17.Operating Temperature Range:-40 - +50 Celsius
18.Storage Temperature Range:-40 - +90 Celsius
19.Size:3 x 0.3cm/1.18 x 0.19inch

Features:
1.Connecting Charger Teminal adopts withstand high voltage instrument
2.Internal 3 phase overcurrent detectiton circuit (overcurrent 1,overcurrent 2,load short circuit)
3.MOS tube can control battery charging and discharging
4.Wide Operating Temperature Range
5.Low Consumption Current

Soldering Point Introduction:
1.B+:connect with power positive
2.B-:connect with power negative
3.P+:connect with charging/discharging port positive(charging port/discharging port common used)
4.P-:connect with charging/discharging port negative(charging port/discharging port common used)
