BMS 2s 8.4V 3A Lithium Li-Ion Li-Po Batery Protection Board

Elektronik > Perangkat Audio & Speaker > Kabel & Konverter Audio & Video > BMS 2s 8.4V 3A Lithium Li-Ion Li-Po Batery Protection Board
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Java.TechLihat semua produk Audio oleh Java.Tech
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail BMS 2s 8.4V 3A Lithium Li-Ion Li-Po Batery Protection Board

Deskripsi BMS 2s 8.4V 3A Lithium Li-Ion Li-Po Batery Protection Board
Description:

Short circuit protection
Overcharge protection
Over-discharge protection
Overcurrent protection
Overcharge Detection Voltage: 4.25-4.35V ± 05 V
Over Discharge Detection Voltage: 2.3-3.0V ± 05 V
Maximum Working Current: 3A
Temporary Current: 5A
Operating temperature: -40-50 degrees
Internal resistance: less than 45 m Ω
B + B-: Battery core interface
P + P-: board battery connector
MB: the connection point between the batteries
B +: V + Positive battery
B-: Battery V Negative
P +: Output / Charging V +
P-: Output / Charging V
Size: Approx. 36x6x1mm / 1.42 "x 0.24" x 0.04 "

Gambar produk

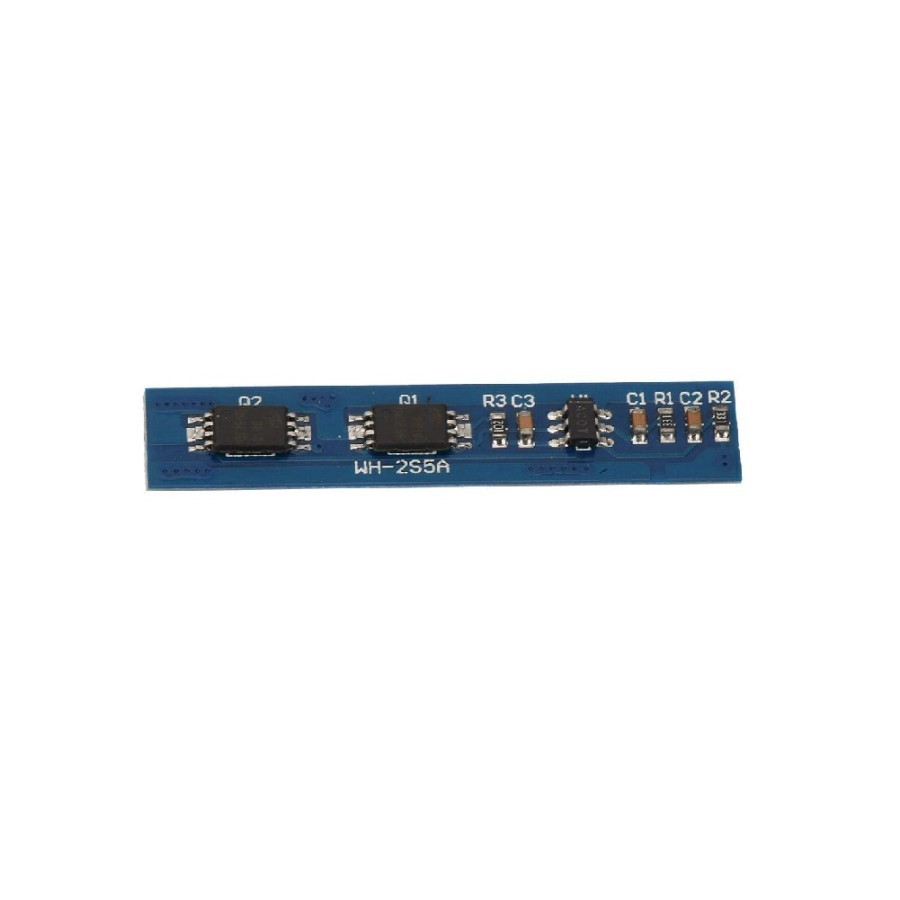

BMS 2s 8.4V 3A Lithium Li-Ion Li-Po Batery Protection Board

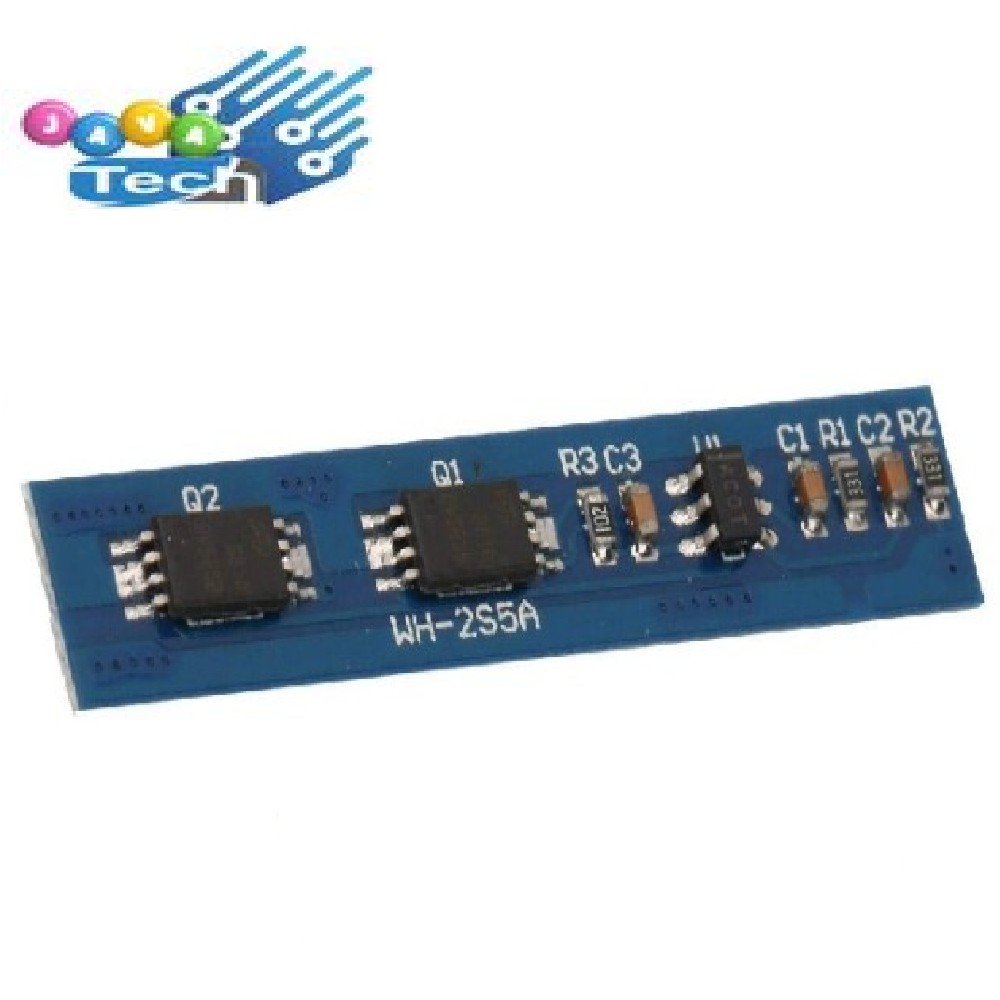

BMS 2s 8.4V 3A Lithium Li-Ion Li-Po Batery Protection Board
BMS 2s 8.4V 3A Lithium Li-Ion Li-Po Batery Protection Board
BMS 2s 8.4V 3A Lithium Li-Ion Li-Po Batery Protection Board
Lihat lebih banyak informasi produk
